Delock USB-C® docking station 87895
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 87895 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-C®, USB 3.2 1st Gen, HDMI®, LAN (10/100/1000 Mbps), SD, microSD
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5 Gbps
- HD type 4K Ultra HD
- Sustainability Compliance: Yes
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-C®
USB 3.2 1st Gen
HDMI®
LAN (10/100/1000 Mbps)
SD
microSD
- Interfaces
1x USB-C®
4x USB 3.2 1st Gen (USB 3.0)
1x HDMI
1x LAN (10/100/1000 Mbps)
micro-SD slot
SD slot
- Resolution (max.)
3840 x 2160 p

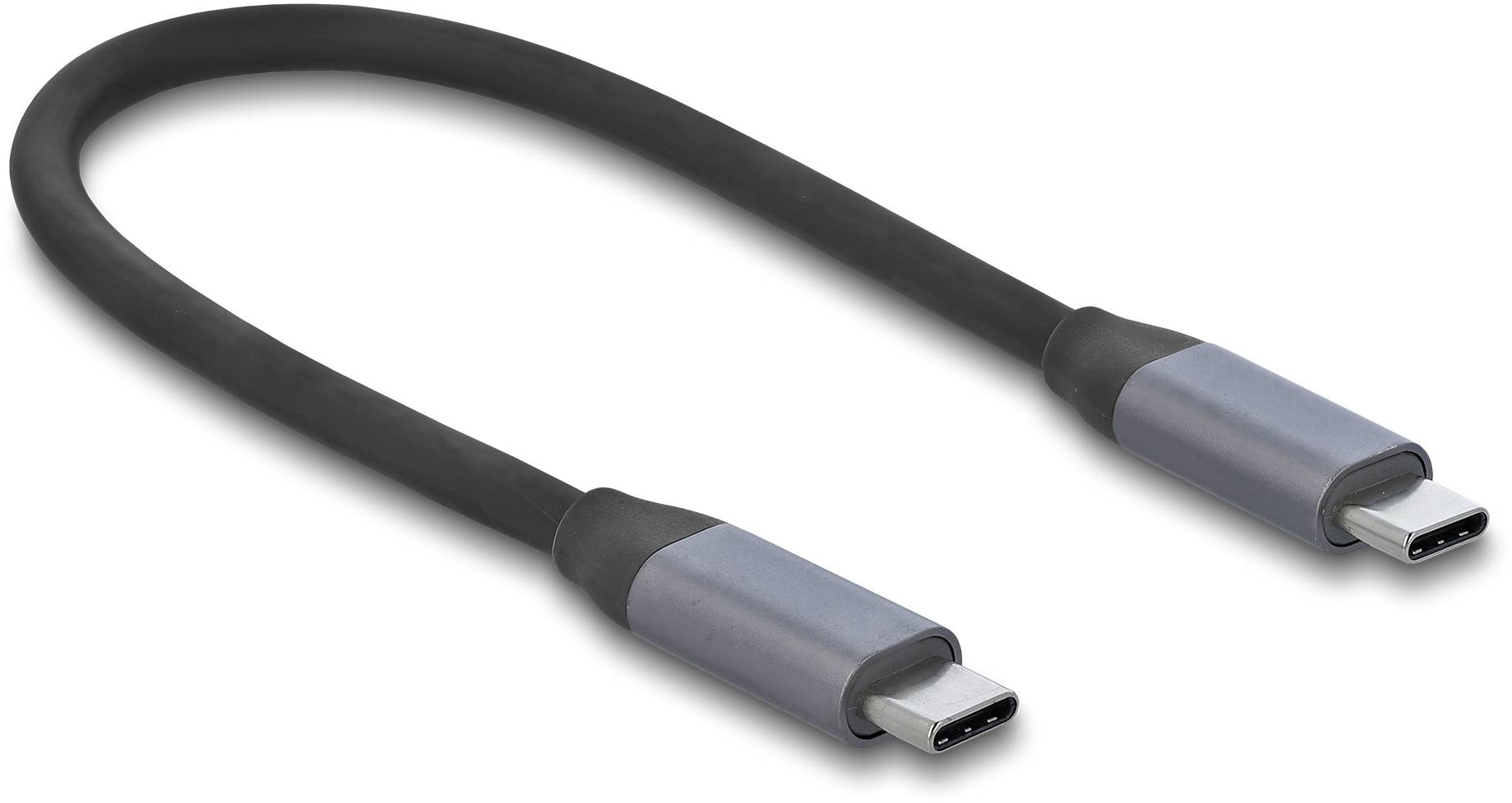

- Cable length
0.2 m
- Factory colour
Black
Grey
- Width
41 mm
- Height
16 mm
- Depth
2820 mm
- Weight
220 g
- Dim
(W x H x D) 41 x 16 x 2820 mm
- Cable design
Round
- Version
Cable
- Frame rate
60 Hz
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable use
C13/C14 appliances
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Microphone in
no
- USB Type-C DisplayPort Alternate Mode
yes
- Card reader integrated
yes
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
85 W
- Manual
yes
- HDCP
yes
- Maximum digital resolution
3840 x 2160 p
- Plug and Play
yes
- Charging function
yes
Documents & Downloads
Datasheet
Datasheet 3384036 Delock USB-C® docking station 87895
User & Safety Instructions
User & Safety Instructions 3384036 Delock USB-C® docking station 87895
Description

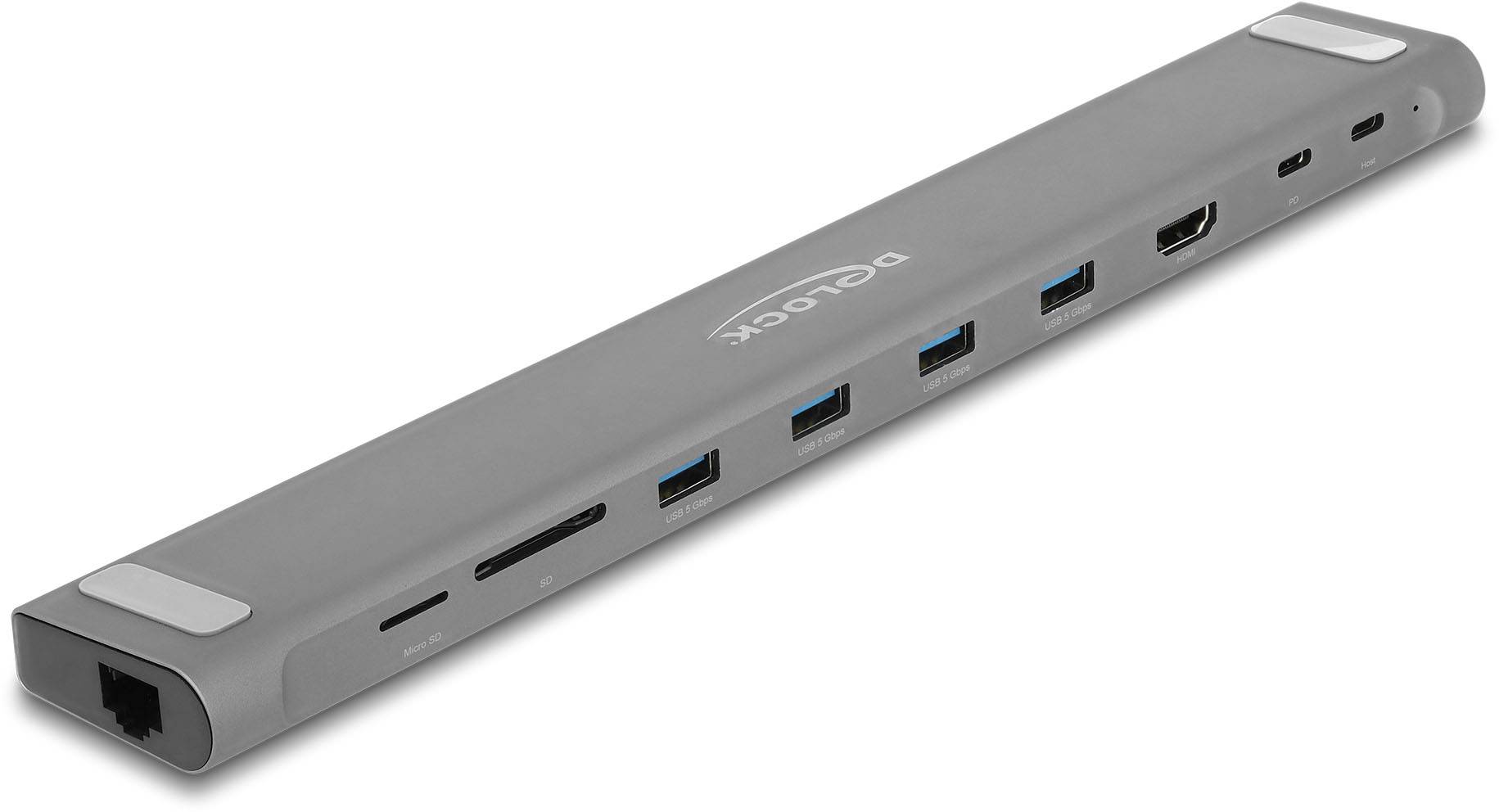

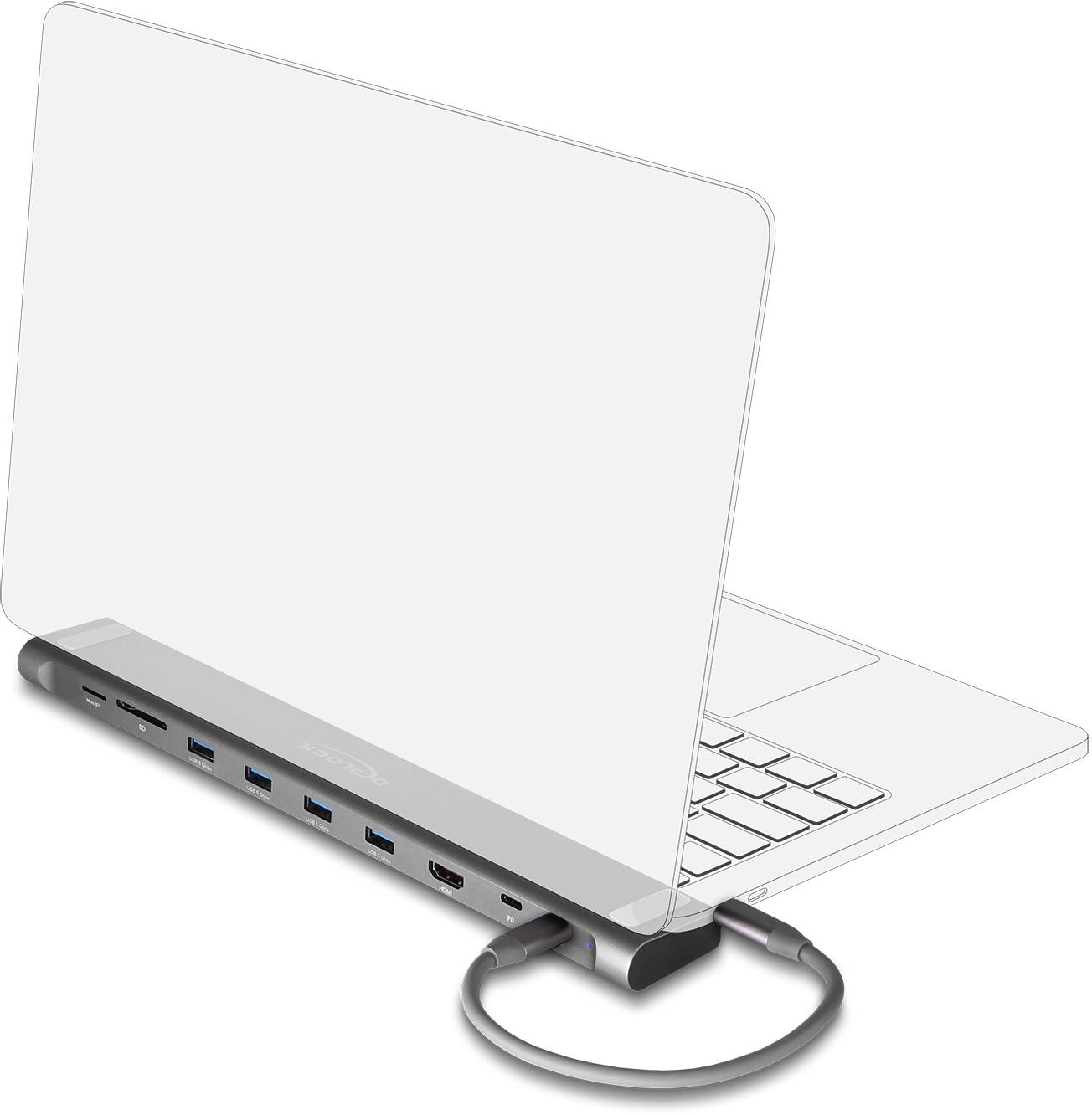

This Delock docking station can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A screen can be operated at the HDMI output. Four integrated USB ports allow the use of peripherals, and connections for SD and micro SD cards and gigabit network complete the equipment. The docking station has a USB Type-C™ Power delivery port. If this port is connected with the power supply of the laptop or tablet, the host device is charged with up to 85 watt during operation. Due to the oblong shape and the metal housing, the docking station is perfectly suitable for operation under the notebook, such as the MacBook. Thereby, the increase of the Notebook serves for better comfort while working, as well as for better cooling of the Notebook.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ socket
- 1 x USB Type-C™ connector (power supply)
- 4 x USB 5 Gbps Type-A socket
- 1 x HDMI socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 1 x SD / SDHC / SDXC / MMC slot
- 1 x Micro SD/SDHC/SDXC Slot
- Resolution up to 3840 x 2160 @ 60 Hz
- (Depending on the system and the connected hardware)
- Transmission of audio and video signals
- Two memory cards can be operated at the same time
- Data can be transferred directly between two connected memory cards
- scanned.
- USB Power delivery (PD) 3.0
- Supports HDCP 1.4
- Power output for host: Max. 85 W.
- 1 x LED display
- Metal housing
- Colour: grey
- Dim. (LxWxH): Approx. 282 x 41 x 16 mm
System requirements
- Mac OS X 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or MIT
A free Thunderbolt™ 3 port
