Delock USB cable USB 2.0 USB Micro-B socket, USB Micro-B plug 0.50 m Black 35108
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 2.0
Version
Cable extension
Connections
USB Micro-B socket
USB Micro-B plug
Cable length
0.50 m
Datasheet (PDF)
Delock cable USB 2.0 micro-B socket for installation - USB 2.0 micro-B plug 0.5 m.
Technical specifications
- Product type
USB cable
- Cable specs
USB 2.0
- Version
Cable extension
- Connections
USB Micro-B socket
USB Micro-B plug
- Factory colour
Black
- Cable length
0.50 m
28 AWG
- Cable design
Round
- Connector version
push-fit
threaded
- Transfer rate (max.)
480 MBit/s
- Connection type
USB 2.0
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3379500 Delock USB cable USB 2.0 USB Micro-B socket, USB Micro-B plug 0.50 m Black 35108
User & Safety Instructions
User & Safety Instructions 3379500 Delock USB cable USB 2.0 USB Micro-B socket, USB Micro-B plug 0.50 m Black 35108
Description
Description

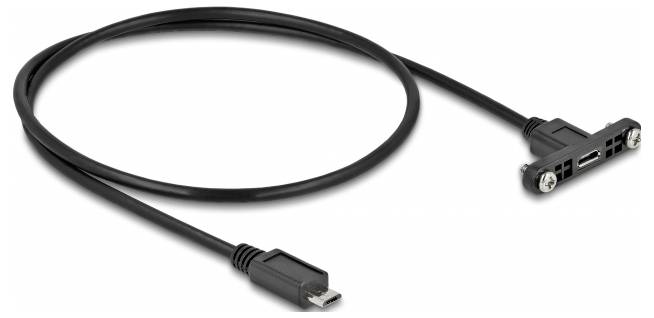

This cable of Delock can be used for extending a USB 2.0 connection and for connecting Diverser devices. The sockets can be fastened with two screws, for example to a slot plate, a cable duct or a casing with the corresponding recess. In this way, it is possible to install a USB port at an easily accessible position.
Technical data
Connections:
1 x USB 2.0 Type Micro-B socket with nuts for installation >
1 x USB 2.0 type Micro-B plug
Screw type #4-40 UNC

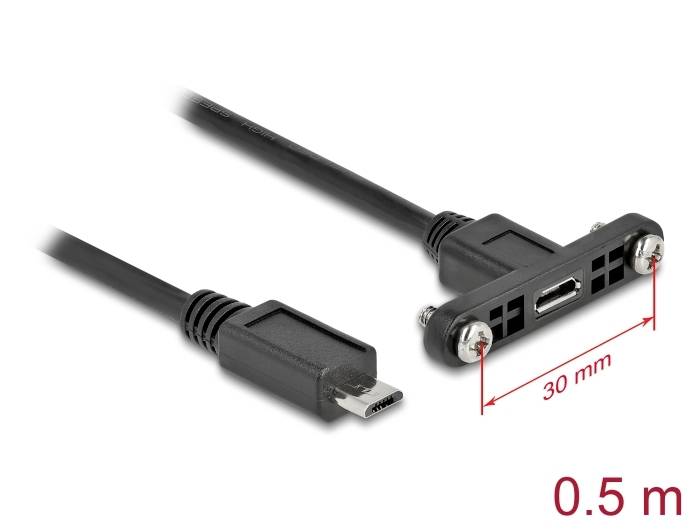

Installation opening type micro-B approx. 8 x 3 mm, boring approx. 30 mm hole distance
Data transfer rate of up to 480 Mbps
Wire cross-section:
28 AWG Data cable
28 AWG power line
Cable diameter: Approx. 3.8 mm
Colour, black
Length including connections: Approx. 0.5 m.
System requirements
A free USB port
Package contents
USB installation cable
2 screws
Packaging
Resealable bag
This text is machine translated.
