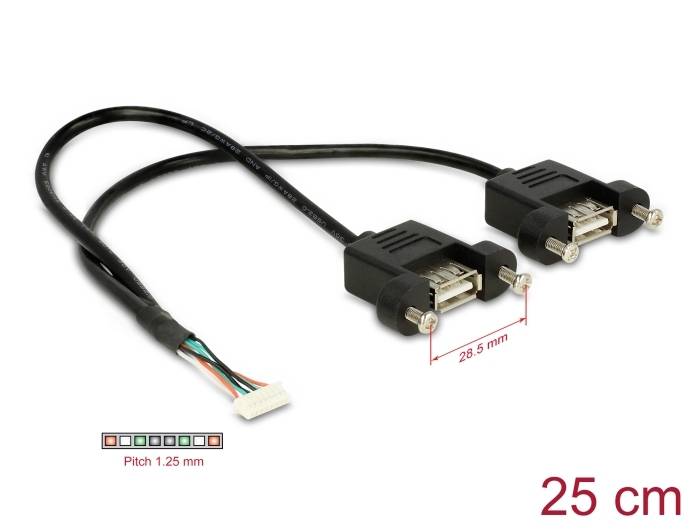

Delock USB cable USB 2.0 USB terminal, USB-A socket 0.25 m Black 84839

Description
This cable serves to extend a USB 2.0 connection and can be used for connection to Diverser devices. The sockets can be fastened with two screws, for example to a slot plate, a cable duct or a casing with the corresponding recess. This can be used to install a USB port at an easily accessible position. The cable is particularly suitable for self constructed computer systems.

Technical data
Connections:

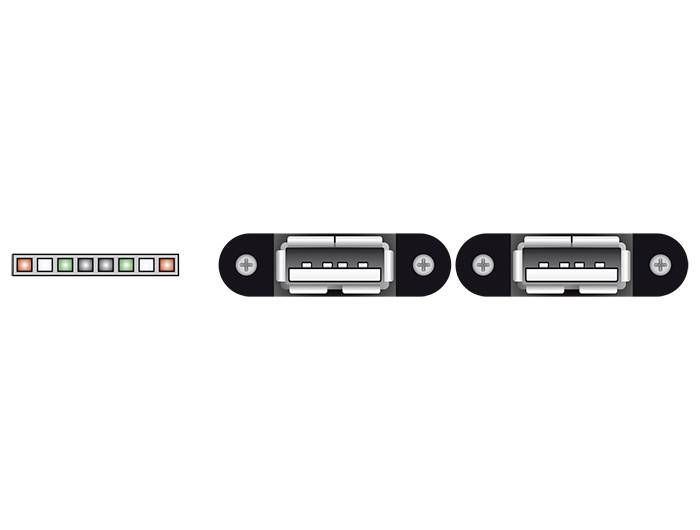

1 x 8 pin USB 2.0 post socket >
2 x USB 2.0 Type-A socket with nuts for installation
Contact spacing: 1.25 mm
M3 screw type
Installation opening: Approx. 17.5 x 11.5 mm, boring approx. 28.5 mm hole distance
Wire cross-section 28 AWG
Cable diameter: Approx. 4 mm
Gold-plated contacts
Data transfer rate of up to 480 MB/s.
Colour, black
Length including connections: Approx. 25 cm

System requirements
A free 1.25 mm USB 2.0 pin header

Package contents
USB installation cable
4 screws

Packaging
Resealable bag

This text is machine translated.
