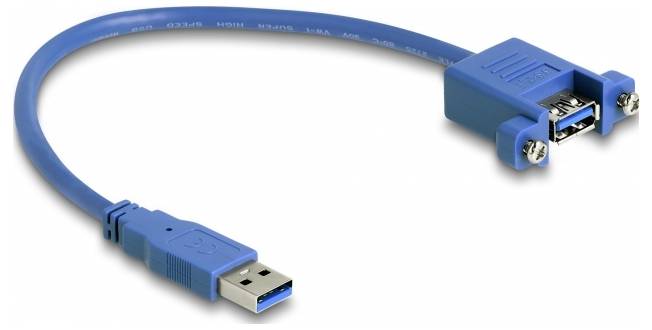

Delock USB cable USB-A plug, USB-A socket 0.25 m Blue 86994
EAN:
Part number:
Item no:
Product type
USB cable
Version
Cable extension
Connections
USB-A plug
USB-A socket
Cable length
0.25 m
Connector version
push-fit
threaded
Datasheet (PDF)
Technical specifications
- Product type
USB cable
- Version
Cable extension
- Connections
USB-A plug
USB-A socket
- Factory colour
Blue
- Cable length
0.25 m
30 AWG
- Cable design
Round
- Connector version
push-fit
threaded
- Transfer rate (max.)
5 GBit/s
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3380424 Delock USB cable USB-A plug, USB-A socket 0.25 m Blue 86994
User & Safety Instructions
User & Safety Instructions 3380424 Delock USB cable USB-A plug, USB-A socket 0.25 m Blue 86994
Description
Description
This cable of Delock can be used for extending a USB connection and for connecting Diverser devices. The sockets can be fastened with two screws, for example to a slot plate, a cable duct or a casing with the corresponding recess. In this way, it is possible to install a USB port at an easily accessible position.
Technical data
Connections:
1 x USB 3.0 Type-A connector
1 x USB 3.0 Type-A socket with nuts for installation
Screw type #4-40 UNC

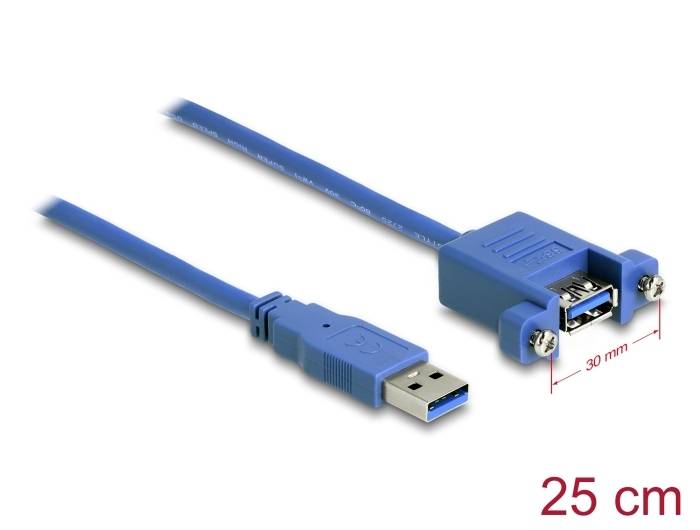

Installation opening type A approx. 15 x 8 mm, hole approx. 30 mm hole distance
Data transfer rate up to 5 Gbps
Wire cross-section:
30 AWG Data cable
24 AWG power line
Cable diameter: Approx. 5 mm
Colour : blue
Length including connections: Approx. 25 cm
System requirements
A free USB port
Package contents
USB installation cable
2 screws
Packaging
Resealable bag
