Delock USB hub 64282 Compatible with (brand): Universal
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 64282 USB hub
Highlights & Details
- Connection A (or inputs): USB-A, USB-C®
- Connecton B (or outputs): USB-A, RJ45
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5 Gbps
- Other operating systems support: ChromeOS
- Product type
USB hub
- Type A
USB-A
USB-C®
- Type B
USB-A
RJ45
- Suitable for
Universal
- Cable length
20 cm
- Factory colour
Grey
- Width
30 mm
- Height
17 mm
- Depth
86 mm
- Weight
0
- Dim
(W x H x D) 30 x 17 x 86 mm
- Compatible with (brand)
Universal
- Cable design
Round
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable use
C13/C14 appliances
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- Jumbo frames
4000
- Microphone in
no
- Wake-on-LAN ready
yes
- Jumbo frames support
yes
- Card reader integrated
no
- Manual
yes
- Full duplex
yes
- Auto MDI/MDI-X
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3383633 Delock USB hub 64282 Compatible with (brand): Universal
User & Safety Instructions
User & Safety Instructions 3383633 Delock USB hub 64282 Compatible with (brand): Universal
Description

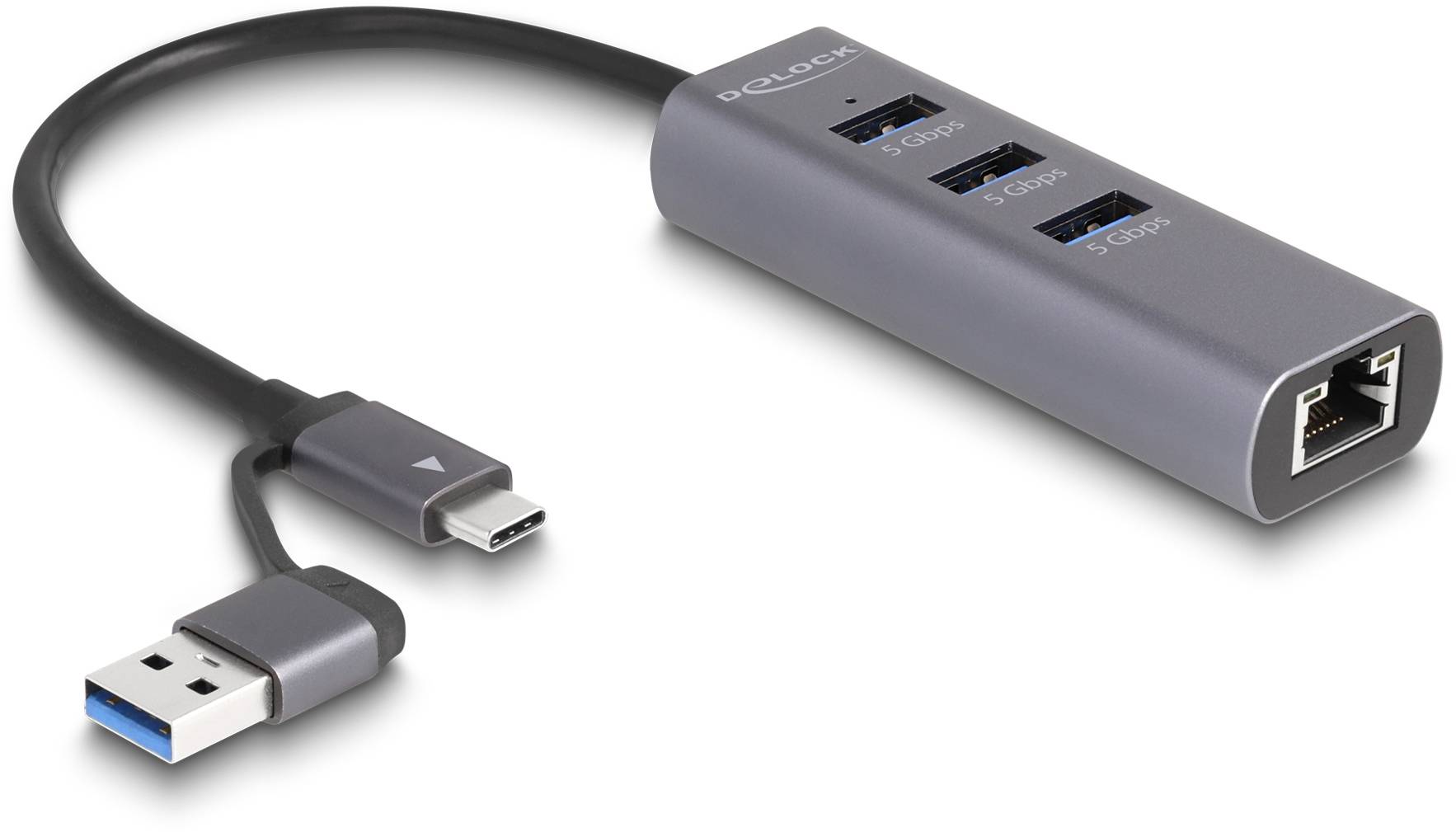

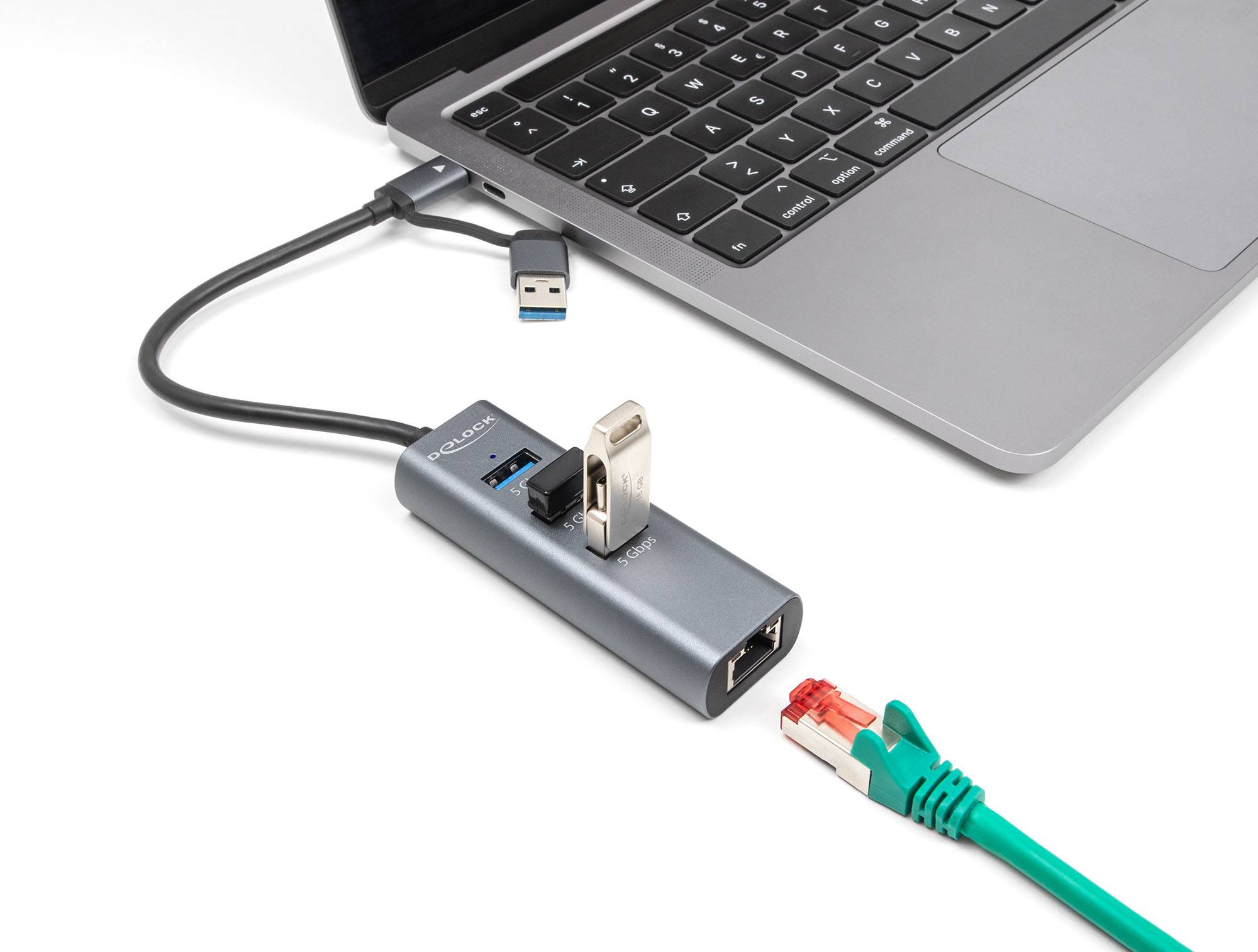

This stable Delock USB hub in a metal enclosure is connected to a computer, notebook or mobile device via the USB Type A or USB-C™ connector. Up to 3 USB devices can be connected to the hub. In addition, the hub with integrated RJ45 Gigabit LAN connection extends a PC or a notebook by a network interface. Because of the specially designed adapter, the Delock hub can be quickly and easily connected to the USB type A port. Thus it can be connected without any problem with new devices with USB Type-C™ socket and older devices, which have only one USB Type-A connection. The adapter is located directly on the cable and therefore cannot be removed.
Small, sturdy and handy
The Delock hub is especially suitable for the mobile use owing to its small dimensions and its stable housing. It can be easily tucked away in the bag together with a notebook or tablet and can be used directly when needed.
This text is machine translated.
Small, sturdy and handy
The Delock hub is especially suitable for the mobile use owing to its small dimensions and its stable housing. It can be easily tucked away in the bag together with a notebook or tablet and can be used directly when needed.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps USB Type-C™ connector
- 3 x USB 5 Gbps Type-A socket
- 1 x Gigabit LAN RJ45 socket
- Adapter:
- 1 x USB 5 Gbps USB Type-C™ jack
- 1 x USB 5 Gbps type A connector
- Genesys Logic GL3510, Realtek RTL8153 chipset
- Data transfer rates:
- Ethernet up to 10 Mbps (half/full duplex)
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- Compatible with:
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000BASE-T
- Supports Auto MDI-X (automatic detection of standard or crossover network cables)
- Supports Wake On LAN (WOL)
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Support of full duplex with IEEE 802.3x flow control and half duplex operation with back pressure
- Supports 4k Jumbo frames
- Heavy duty metal casing
- Dim. (LxWxH): Approx. 86 x 30 x 17 mm
- Cable length incl. connection: Approx. 20 cm
- Colour: grey
- Plug & Play
System requirements
- Android 13.0 or higher
Chrome OS
Linux Kernel 5.19 or later
Mac OS X 12.4 or higher
Windows 10/10-64/11
IPad Air (4. Next generation) or higher
IPad Pro (3) Next generation) or higher
Surface Pro 7
Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port or
A free USB type-A connection
