DEVI 109508 109508 Grey
EAN:
Part number:
Item no:
Technical specifications
- Width 1050 mm
- Height: 950 mm
- Depth: 150 mm
- Material: Steel
- Surface design: Other
- Colour: grey
- Connectable: No.
- With mounting plate: No.
- Mounting plate depth-adjustable: No.
- Number of doors: 3
- Number of locks: 1
- Suitable for outdoor installation: No.
- EMC type: No.
- With inspection door: Yes
- With ventilation door: No.
- With rear door: No.
- Impact strength: IK08
- Protection class (IP) IP54
- Product type
Controller
IP54
- Factory colour
Grey
- Dim
(W x H x D) 1050.00 x 950.00 x 150.00 mm
- Height
950.00 mm
- Depth
150.00 mm
- Width
1050.00 mm
- Material (details)
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136706 DEVI 109508 109508 Grey
Description

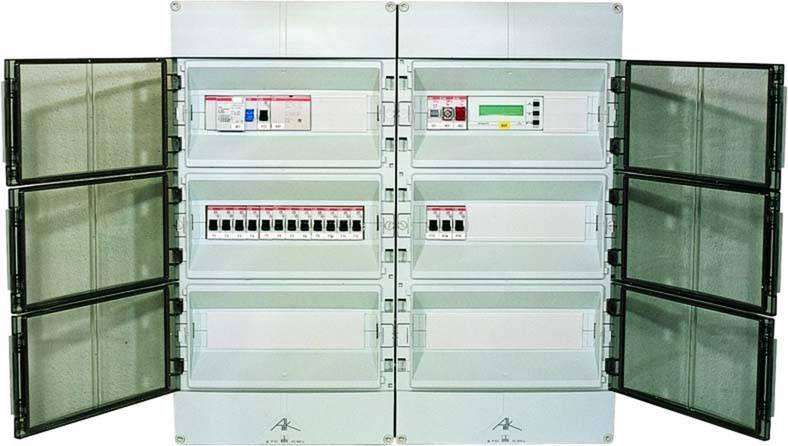

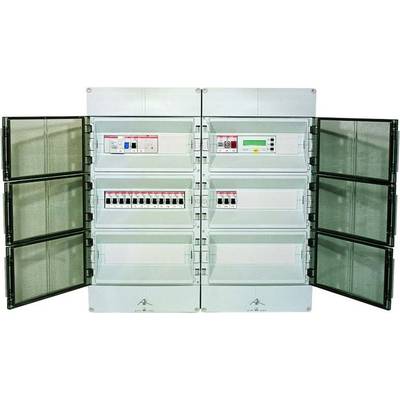

Distribution for open space heating with up to 10 heating circuits, power 49-60 KW, AP-steel plate housing, protection class IP54 equipped with all input fuses, FI- protection switch modes switch for continuous, manual and automatic mode, empty space for ice and snow detectors Devireg 850, control and power contactors, heating circuit fuses as well as terminals for supply and outlet lines and fault reporting. VDE moderately wired. Connection voltage 230 V/400 V
