Deye Inverter SUN-10K-SG01HP3-EU-DM2 10000 W - 230 V, 400 V Mains supply, UPS function, Dual MPP trackers, Remote operat
Part number:
Item no:
Datasheet (PDF)

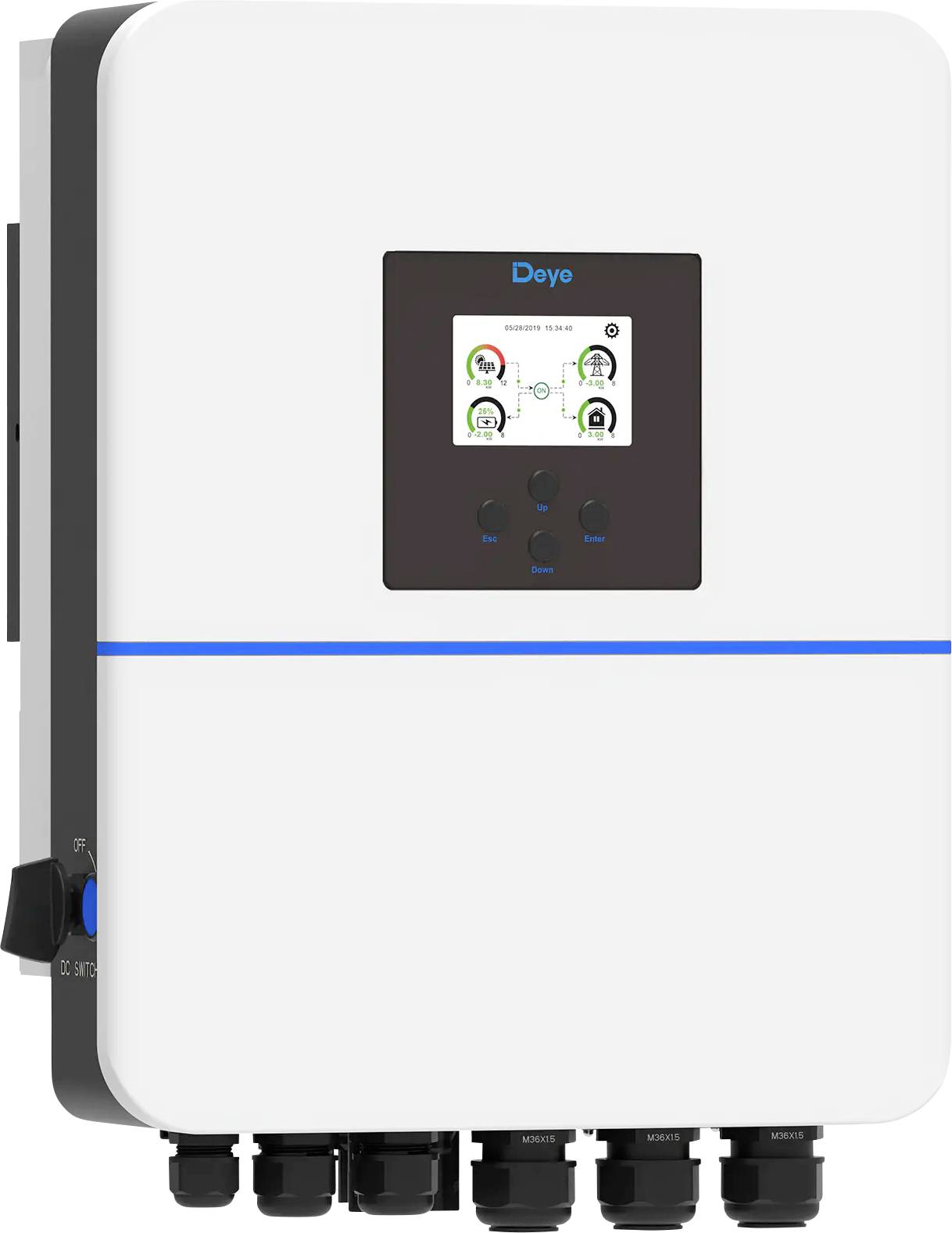

Deye SUN-10K-SG01HP3-EU-DM2 – 10 kW high voltage hybrid inverter
Highlights & Details
- High-volt battery support: Compatible with storage systems in the range of 160 V to 700 V, WAS provides for maximum efficiency during charging and discharging.
- 100% skewed load capability: Each of the three phases can be independently loaded with up to 100% of the rated output – Ideal for uneven household consumption.
- 2 MPPT Tracker: Allows two module strands to be flexibly designed to achieve optimum yields even with different roof slopes or partial shadows.
- UPS function (backup): Guarantees an uninterrupted power supply in case of power failure with an extremely fast switching time of less than 10 ms.
- Smart load & AC coupling: Intelligent output for controllable loads (e.g. heat pump) and the possibility of integrating existing PV inverters into the system.
- Coloured touch-display: Simple configuration and visualization of all performance data directly on the device through a user-friendly interface.
- Parallel connection: Supports parallel operation of up to 10 units in order to scale system performance as needed in the future.
Technical specifications
- Operating temperature range --40°C to +60°C (derating from 45°C)
- Input voltage
150 V – 850 V (STARTING VOLTAGE 180 V)
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
400 V
10000 W
- Nominal load efficiency
97.60 %
- Remote control
Yes
- Weight
30.5 kg
- Width
422 mm
- Height
699 mm
- Depth
279 mm
- Type
Hybrid inverter (battery & network-coupled)
- Type
SUN-10K-SG01HP3-EU-DM2
- Features
Mains supply
UPS function
Dual MPP trackers
Remote operation
Wi-Fi communication
Documents & Downloads
Datasheet
Datasheet 3758481 Deye Inverter SUN-10K-SG01HP3-EU-DM2 10000 W - 230 V, 400 V Mains supply, UPS function, Dual MPP trackers, Remote operat
User & Safety Instructions
User & Safety Instructions 3758481 Deye Inverter SUN-10K-SG01HP3-EU-DM2 10000 W - 230 V, 400 V Mains supply, UPS function, Dual MPP trackers, Remote operat
Description
The Deye SUN-10K-SG01HP3-EU-DM2 is a powerful, three-phase high-voltage hybrid inverter that serves as the core of modern photovoltaic systems in single-family houses. With an AC output power of 10 kW, it enables a highly efficient use of energy by combining solar power generation, intelligent battery charging and a reliable emergency power supply.
This model of the SG01 series is especially optimized for use with high-voltage battery storage. The higher system voltage minimizes conversion losses, WAS increases the overall efficiency of your system. Whether self-optimization, zero-feed or isolated operation – this inverter offers the right solution for every scenario.
Use
The SUN-10K is the all-rounder for the modern home:
-Single-family houses with storage
-Perfectly tuned to high voltage batteries such as the Deye BOS-A series or Pylontech Force H2 to maximize the autarkic rate.
-Emergency power fuse
-Reliably protects important household appliances such as heating pumps, refrigerators and lighting from power outages.
-Sector coupling
-Intelligent control of wall boxes or hot water heating rods via the Smart-load contact in case of solar surplus.
FAQ for Deye SUN-10K-SG01HP3
Can ICH operate this inverter with 48V batteries?
No.
This model is a high-voltage hybrid (HP3). For 48V low-voltage storage you need the LP3-series by Deye. Operation with the wrong battery voltage can lead to damage.
Do ICH need a separate Smart meter for zero feed?
Usually no.
With these hybrid models, Deye usually delivers the appropriate 3-phase Smart meter (e.g. Eastron) directly along, so that the inverter can record the house consumption at the mains connection point.
Is the WLAN module included in the delivery?
Yes.
A Wi-Fi dongle for integrating into the Solarman APP or the Deye Cloud portal is included as standard in the delivery in order to be able to monitor the system worldwide.
Can the inverter control a heat pump?
Yes.
Via the programmable Smart-load output a signal can be sent to the heat pump (SG-ready) if the solar yield is sufficient or the rechargeable battery is full in order to store thermal energy.
This text is machine translated.
This model of the SG01 series is especially optimized for use with high-voltage battery storage. The higher system voltage minimizes conversion losses, WAS increases the overall efficiency of your system. Whether self-optimization, zero-feed or isolated operation – this inverter offers the right solution for every scenario.
Use
The SUN-10K is the all-rounder for the modern home:
-Single-family houses with storage
-Perfectly tuned to high voltage batteries such as the Deye BOS-A series or Pylontech Force H2 to maximize the autarkic rate.
-Emergency power fuse
-Reliably protects important household appliances such as heating pumps, refrigerators and lighting from power outages.
-Sector coupling
-Intelligent control of wall boxes or hot water heating rods via the Smart-load contact in case of solar surplus.
FAQ for Deye SUN-10K-SG01HP3
Can ICH operate this inverter with 48V batteries?
No.
This model is a high-voltage hybrid (HP3). For 48V low-voltage storage you need the LP3-series by Deye. Operation with the wrong battery voltage can lead to damage.
Do ICH need a separate Smart meter for zero feed?
Usually no.
With these hybrid models, Deye usually delivers the appropriate 3-phase Smart meter (e.g. Eastron) directly along, so that the inverter can record the house consumption at the mains connection point.
Is the WLAN module included in the delivery?
Yes.
A Wi-Fi dongle for integrating into the Solarman APP or the Deye Cloud portal is included as standard in the delivery in order to be able to monitor the system worldwide.
Can the inverter control a heat pump?
Yes.
Via the programmable Smart-load output a signal can be sent to the heat pump (SG-ready) if the solar yield is sufficient or the rechargeable battery is full in order to store thermal energy.
This text is machine translated.
Scope of delivery
- Hybrid inverter ×1
- Wall bracket ×1
- Communication cable ×1
- User manual (club user manual) ×1
- Sensor clamp (ub. Clamp-on ammeter) ×3
- Data logger ×1
