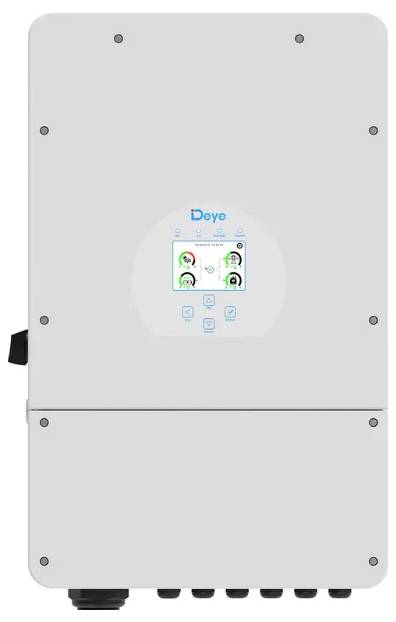

Deye Inverter SUN-10K-SG02LP1-EU-AM3-P 10000 W 370 V - 230 V Mains supply
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deye SUN-10K-SG02LP1-EU-AM3-P – 10 kW / 1-phase hybrid inverter
- Huge 10 kW single-phase power: Ideal for large households or commercial applications with single-phase structure that require high load coverage.
- High current inputs (26 A): Perfectly tuned to the latest generation of PV-modules with large cell formats and high short-circuit currents.
- 48 V low-voltage system: Full compatibility with low-cost and modularly expandable 48 V battery memory (e.g. LiFePO4 from Deye or Pylontech).
- 220 A charging/discharging current: Enables extremely fast charging of the memory in high sunlight and supplies large consumers from the battery.
- Full UPS function: Switches to isolated operation in the event of power failure in less than 4 ms, so that even sensitive electronics continue to run smoothly.
- Three MPPT trackers: Provides maximum flexibility in roof layout and optimizes yield on different orientations or partial shadows.
- AC-coupling & Smart load: Existing inverters can be easily integrated; in addition, surpluses can be used specifically for heat pumps or heating rods.
Technical specifications
- Input voltage
125 V – 425 V (PV-MPPT) / 40 V – 60 V (BATTERY)
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
10000 W
- Input voltage
370 V
- Nominal load efficiency
97 %
- Permanent current
43.5 A
- Weight
34.5 kg
- Width
422 mm
- Height
702 mm
- Depth
281 mm
- Type
Single-phase hybrid inverter (LV - 48V battery system)
- Type
SUN-10K-SG02LP1-EU-AM3-P
- Features
Mains supply
Documents & Downloads
Datasheet
Datasheet 3758474 Deye Inverter SUN-10K-SG02LP1-EU-AM3-P 10000 W 370 V - 230 V Mains supply
User & Safety Instructions
User & Safety Instructions 3758474 Deye Inverter SUN-10K-SG02LP1-EU-AM3-P 10000 W 370 V - 230 V Mains supply
Description
The Deye SUN-10K-SG02LP1-EU-AM3-P is an extremely powerful, single-phase hybrid inverter of the latest generation, which was specially developed for demanding photovoltaic systems in the low-voltage range. With a nominal output power of 10 kW, it is one of the strongest single-phase devices on the market and enables massive energy consumption optimization as well as a continuous emergency power supply for large single-phase house networks or specific load groups.
The abbreviation "P" stands for support of high-current PV modules, WAS allows the connection of modern panels with high current (up to 26 A per MPPT). It works with 48 V low-voltage batteries and, thanks to its enormous charging and discharging power of up to 220 A, it offers excellent performance when managing large battery storage.
Areas of application:
Large single-phase house networks
Maximum independence through the storage of large quantities of energy in economical 48 V batteries.
Off-grid & isolated solutions
Thanks to the high output power of 10 kW, the device is excellently suitable for independent systems in remote areas.
Retrofitting & extension
Can be installed parallel to existing string inverters thanks to AC coupling to upgrade a storage system.
FAQ for Deye SUN-10K-SG02LP1-EU-AM3-P
Can ICH supply a 3-phase house with this single-phase unit?
Yes, about the detour of the balancing. The inverter feeds into one phase. An Smart meter installed at the power point ensures that the consumption of the other two phases is calculated (balancing), so that the electricity meter remains effective.
How many batteries can ICH connect?
Almost unlimited. Thanks to the 48 V system many battery modules can be connected in parallel. The inverter communicates via CAN or RS485 with the leading battery management system (BMS).
Is the device suitable for outdoor use?
Yes, thanks to IP65. The casing is dust-proof and protected against sprayed water. Nevertheless, it is recommended that the device be mounted in the shade to extend the life of the electronics due to less thermal load.
This text is machine translated.
The abbreviation "P" stands for support of high-current PV modules, WAS allows the connection of modern panels with high current (up to 26 A per MPPT). It works with 48 V low-voltage batteries and, thanks to its enormous charging and discharging power of up to 220 A, it offers excellent performance when managing large battery storage.
Areas of application:
Large single-phase house networks
Maximum independence through the storage of large quantities of energy in economical 48 V batteries.
Off-grid & isolated solutions
Thanks to the high output power of 10 kW, the device is excellently suitable for independent systems in remote areas.
Retrofitting & extension
Can be installed parallel to existing string inverters thanks to AC coupling to upgrade a storage system.
FAQ for Deye SUN-10K-SG02LP1-EU-AM3-P
Can ICH supply a 3-phase house with this single-phase unit?
Yes, about the detour of the balancing. The inverter feeds into one phase. An Smart meter installed at the power point ensures that the consumption of the other two phases is calculated (balancing), so that the electricity meter remains effective.
How many batteries can ICH connect?
Almost unlimited. Thanks to the 48 V system many battery modules can be connected in parallel. The inverter communicates via CAN or RS485 with the leading battery management system (BMS).
Is the device suitable for outdoor use?
Yes, thanks to IP65. The casing is dust-proof and protected against sprayed water. Nevertheless, it is recommended that the device be mounted in the shade to extend the life of the electronics due to less thermal load.
This text is machine translated.
Scope of delivery
- Hybrid inverter ×1
- User manual ×1
- Stainless steel fixing screws M4×12 ×2
- Stainless steel anchor bolts (heavy-duty anchor) M8×80 ×4
- Current sensor terminal (CT terminal) ×1
- Battery temperature sensor ×1
- Parallel communication cable ×1
- Magnetic ring for battery ×1
- Magnet ring for BMS communication cable ×1
- DRM connection (interface for active power control) ×1
