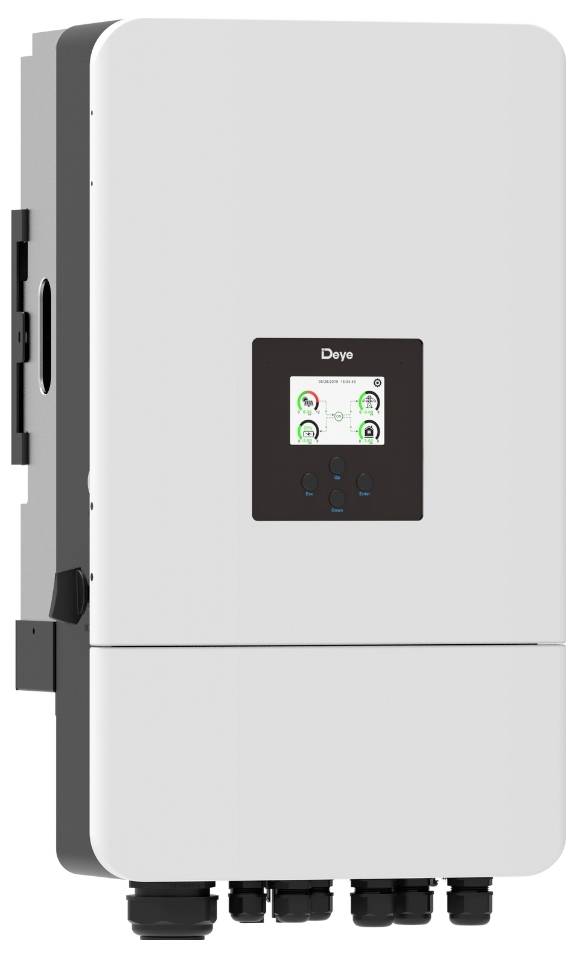

Deye Inverter SUN-12K-SG05LP3-EU-SM2 12000 W - 230 V, 400 V

The Deye SUN-12K-SG05LP3-EU-SM2 is a three-phase hybrid inverter for private and commercial energy projects. It combines an inverter, battery charger and energy management system in one device and enables efficient, flexible power flow control in new installations and retrofitting.

Efficient energy conversion for modern requirements

The Deye SUN-12K-SG05LP3-EU-SM2 reaches a maximum efficiency of 97.6 percent and convinces with a MPPT-efficiency of over 99 percent. The wide MPPT voltage range from 200 to 650 volts together with a maximum PV input voltage of 800 volts guarantees efficient energy storage even with varying radiation conditions. This high efficiency ensures economical operation and maximum yields from the solar system.
Flexibility and scalability

The Deye SUN-12K-SG05LP3-EU-SM2 can be adapted flexibly to different requirements. The ability to operate up to ten devices in parallel makes it suitable for both small plants and large energy projects. The AC-coupling enables an easy integration in existing systems, as a result of which the inverter is also suitable for Ideal for retrofitting. Support for different battery types enables customized storage solutions tailored to individual needs and budgets.
Reliability and protection

With a protection class of IP65, the inverter is optimally protected against dust and water and is suitable for demanding ambient conditions. The wide operating temperature range from minus 40 to plus 60 degrees Celsius ensures safe operation even under extreme climatic conditions. Extensive protection mechanisms such as overcurrent, overvoltage, short circuit and thermal protection as well as the monitoring of the DC insulation impedance ensure highest reliability and a long life of the system.
Who is the Deye SUN-12K-SG05LP3-EU-SM2 for?

This inverter is Ideal for

-Homeowners who want to increase their own consumption rate and reduce energy costs
-Businesses that need a stable and efficient power supply
-Users who want to add modern storage solutions to existing solar systems
Projects in regions with fluctuating grid stability where diesel generators are used as an additional energy source

FAQs for 10 kW Deye Hybrid Inverter
What types of batteries does the inverter support?

The inverter is compatible with lead-acid and lithium-ion batteries in the voltage range from 40 to 60 volts.
What is the maximum charge and discharge current?

The maximum charging and discharging current is 240 ampere, WAS enables a fast transmission of energy.
Can the inverter be operated with a diesel generator?

Yes, the Deye SUN-12K-SG05LP3-EU-SM2 supports the integration of diesel generators for a safe and uninterrupted power supply.
Which communication interfaces are available?

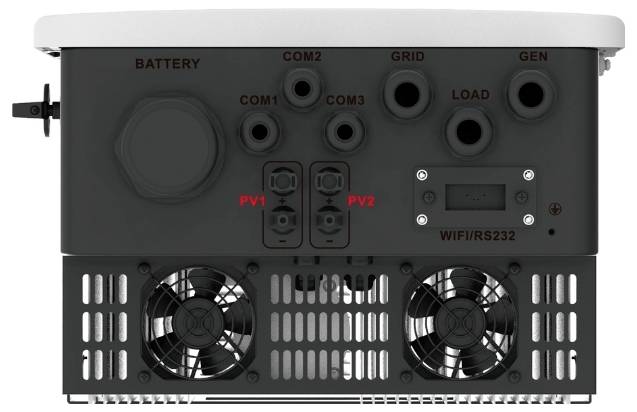

The inverter provides interfaces such as RS485, RS232, CAN as well as options for GPRS, WLAN, Bluetooth, 4G and LAN for monitoring and control.
Can the inverter supply unbalanced loads?

Yes, the inverter can supply an unbalanced load of up to 100 percent, with each phase delivering up to 50 percent of the rated power.

This text is machine translated.
