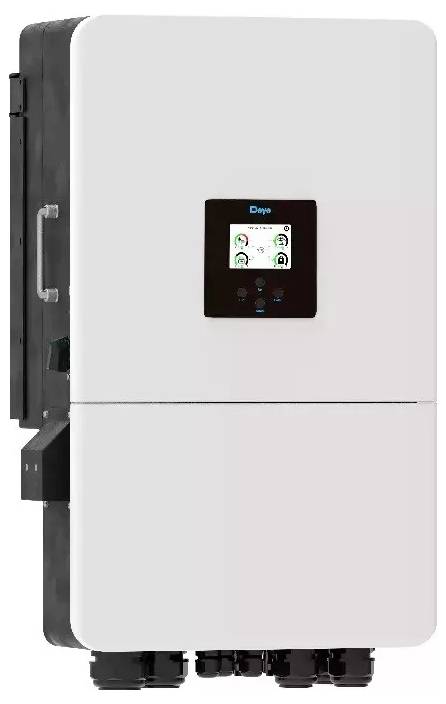

Deye Inverter SUN-15K-SG05LP3-EU-SM2 15000 W 550 V - 400 V

The Deye SUN-15K-SG05LP3-EU-SM2 is a high-performance three-phase hybrid inverter designed for demanding photovoltaic systems in the commercial and private sector. With a charging and discharging capacity of up to 350 A, the support of different battery types and versatile application possibilities it represents a reliable solution for modern energy systems.

Efficient energy conversion for modern requirements

The Deye SUN-15K-SG05LP3-EU-SM2 enables a high consumption rate through intelligent battery management, flexible PV-feed and versatile communication interfaces. With a maximum efficiency of 97.6 percent and MPPT efficiency of over 99 percent, the system works extremely efficiently and energy-optimized.
Flexible integration and retrofit

Whether as part of a new photovoltaic system or for the expansion of existing systems, through AC coupling and parallel operation the SUN-15K is versatile applicable. The combination of up to 10 inverters and various types of batteries enables scalable storage solutions and the highest system availability.
Intelligent network- and islet system operation

The inverter supports operation on the public grid as well as autonomous island operation. The integrated communication via RS485, CAN, WLAN, GPRS or LAN (optional) allows the simple integration into monitoring and control systems. The protection functions and the protection class IP65 guarantee the highest degree of safety.
Who is the Deye SUN-15K-SG05LP3-EU-SM2 for?

This inverter is Ideal for:

-PV systems in the commercial or private sector with medium energy requirements
Systems which operate in parallel or independent of the mains
Projects with requirements for maximum flexibility and resilience
- Existing plants to be modernized via AC coupling

FAQ for Deye SUN-15K-SG05LP3-EU-SM2
Which battery systems are compatible?

It supports low-voltage batteries with a voltage of 40–60 V, both lithium-ion and lead-acid. The communication is done intelligently via BMS-protocols. The maximum charge and discharge current is up to 280 A.
How efficient does this inverter work?

The maximum efficiency is 97.6%, the EU efficiency is 97.0% and WAS is very low.
How many MPPTs and strings does it support?

It has two MPP trackers to which up to two PV strings can be connected (2 lines per MPPT).
Can ICH operate multiple devices in parallel?

Yes, up to 10 devices can be used in parallel in on-grid or off-grid mode to flexibly scale system performance and capacity.
Which protection functions are integrated?

It is IP65 protected and therefore dust and water proof. In addition, it also has extensive protective functions against DC polarity reversal, over current, over voltage, short circuits, earth connections and arc ("AFCI").

This text is machine translated.
