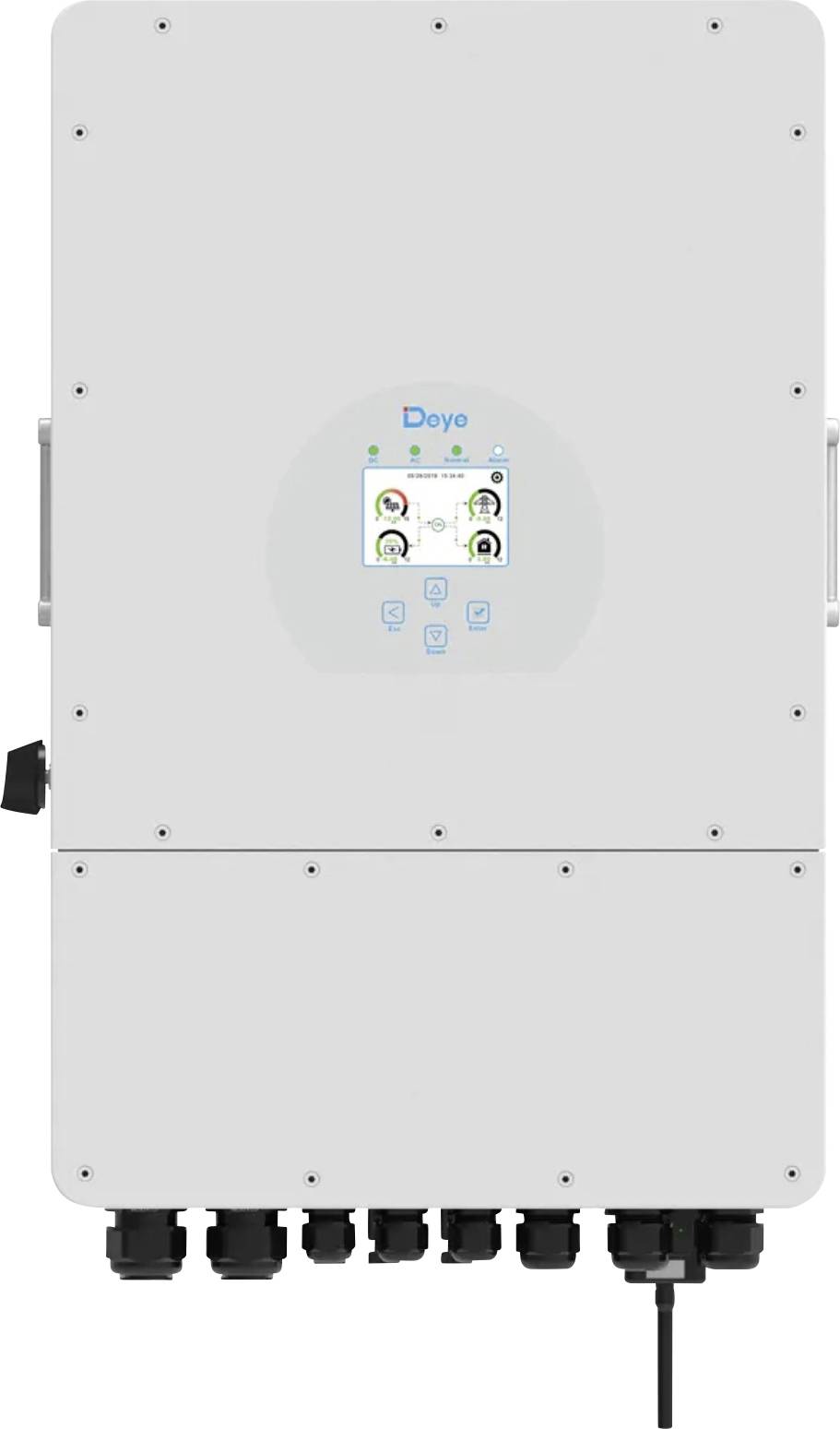

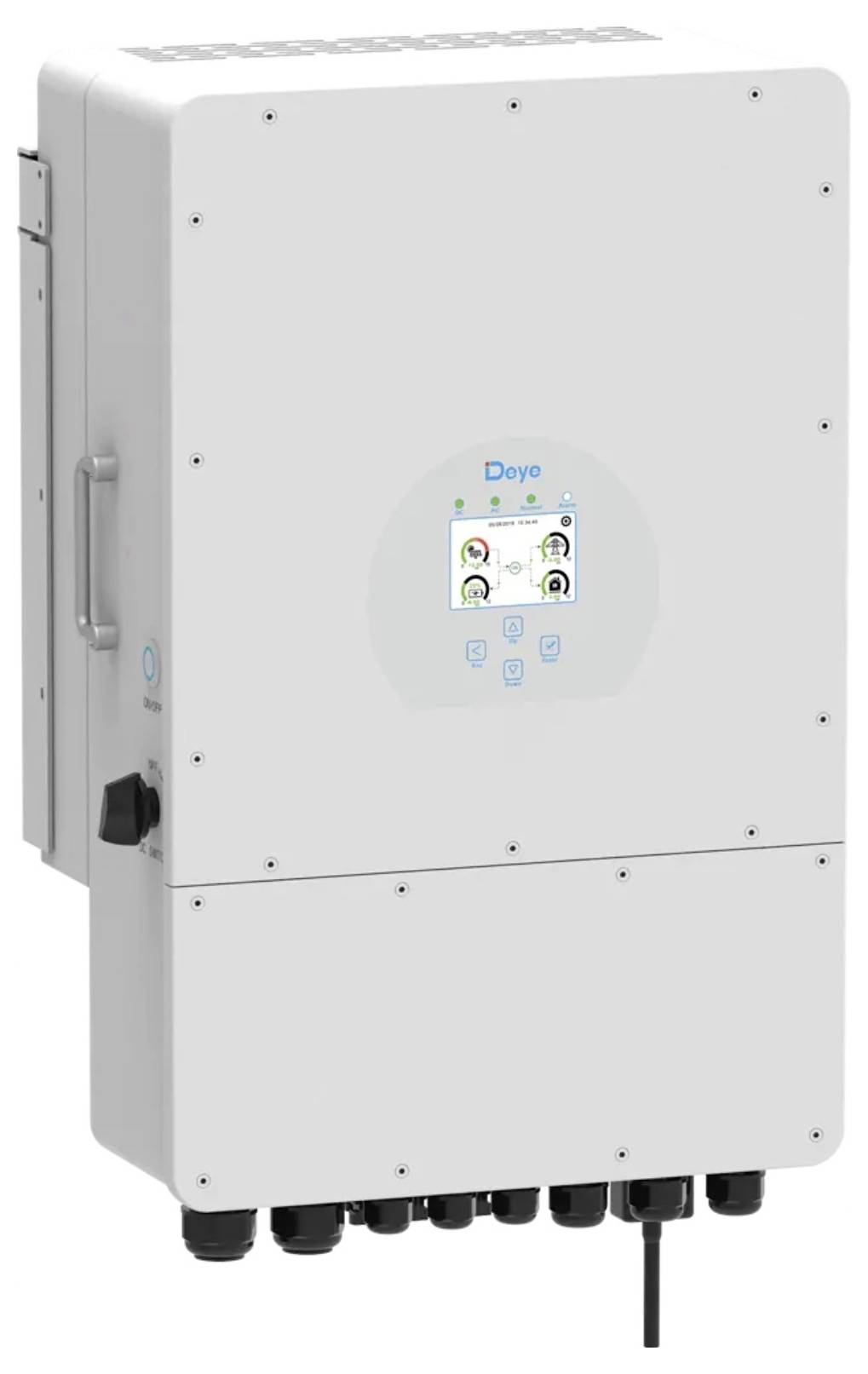

Deye Inverter SUN-16K-SG01LP1-EU 16000 W 40 V, 60 V - 230 V
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Deye SUN-16K-SG01LP1-EU hybrid inverter 1-phase 16 kW
- High power: 15 kW nominal power, 16 kW peak power
- Flexible operation: On-grid and off-grid use possible
- Powerful battery integration: Max. Charge/discharge current 250 A, compatible with 48 V low-voltage batteries
- Efficient energy conversion: Max. Efficiency 97.6%, 2 MPPTs for optimal PV use
- Easy to use: Colour touchscreen, built-in WLAN, APP control
- Scalable: Parallel operation of up to 16 devices for larger projects
Technical specifications
- Input voltage
150 V – 425 V (MPPT RANGE)
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
16000 W
- Input voltage
40 V
60 V
- Nominal load efficiency
97.60 %
- Permanent current
69.6 A max. Battery discharge current 290 A
- Weight
35.5 kg
- Width
527 mm
- Height
700 mm
- Depth
294 mm
- Type
Single-phase low-voltage hybrid inverter
- Type
SUN-16K-SG01LP1-EU
Documents & Downloads
Datasheet
Datasheet 3758505 Deye Inverter SUN-16K-SG01LP1-EU 16000 W 40 V, 60 V - 230 V
User & Safety Instructions
User & Safety Instructions 3758505 Deye Inverter SUN-16K-SG01LP1-EU 16000 W 40 V, 60 V - 230 V
Description
The Deye SUN-16K-SG01LP1-EU is a robust hybrid inverter that is ideal for use in homes and small businesses. It has an AC power of 15 kW and offers an efficient and reliable energy supply thanks to flexible battery usage and comprehensive safety functions. The device is suitable for mains as well as power-independent operation.
Efficient energy management
The SUN-16K-SG01LP1-EU optimizes the self-consumption of PV-energy by prioritizing direct use and saving excess energy in batteries or feeding it into the mains. In addition, the battery can be charged via a diesel generator, WAS makes it an ideal backup solution or for remote locations.
Flexible storage and system integration
The system is compatible with 48 V low voltage batteries and communication interfaces (RS485, CAN) for different battery manufacturers. Six programmable time windows for charging and discharging allow intelligent control, even in combination with variable electricity tariffs.
Maximum security and reliability
The inverter guarantees safe and reliable operation under all conditions thanks to IP65 degree of protection, integrated safety mechanisms (overvoltage, short-circuit and isolated network protection) as well as compliance with international standards.
Who is the Deye SUN-16K-SG01LP1-EU for?
This hybrid inverter is Ideal for:
-Private households with Hohem energy requirements and self-sufficient demand
-Small businesses with a need for continuous energy supply
-Operator of remote systems with diesel generator integration
Installations that are to remain scalable through parallel connection
FAQ for Deye SUN-16K-SG01LP1-EU Hybrid Inverter
Which batteries are compatible with the 16 kW inverter?
The inverter supports 48 V low-voltage batteries and is compatible with different manufacturers thanks to RS485 and CAN-interfaces.
Can the Deye inverter also be operated without a battery?
Yes, the SUN-16K-SG01LP1-EU works with or without battery storage.
Is parallel operation possible?
Up to 16 devices can be operated in parallel, WAS enables the use in larger projects.
How is the inverter system controlled?
The control is done comfortably via a colored touch-screen directly at the device or via the integrated WLAN APP.
This text is machine translated.
Efficient energy management
The SUN-16K-SG01LP1-EU optimizes the self-consumption of PV-energy by prioritizing direct use and saving excess energy in batteries or feeding it into the mains. In addition, the battery can be charged via a diesel generator, WAS makes it an ideal backup solution or for remote locations.
Flexible storage and system integration
The system is compatible with 48 V low voltage batteries and communication interfaces (RS485, CAN) for different battery manufacturers. Six programmable time windows for charging and discharging allow intelligent control, even in combination with variable electricity tariffs.
Maximum security and reliability
The inverter guarantees safe and reliable operation under all conditions thanks to IP65 degree of protection, integrated safety mechanisms (overvoltage, short-circuit and isolated network protection) as well as compliance with international standards.
Who is the Deye SUN-16K-SG01LP1-EU for?
This hybrid inverter is Ideal for:
-Private households with Hohem energy requirements and self-sufficient demand
-Small businesses with a need for continuous energy supply
-Operator of remote systems with diesel generator integration
Installations that are to remain scalable through parallel connection
FAQ for Deye SUN-16K-SG01LP1-EU Hybrid Inverter
Which batteries are compatible with the 16 kW inverter?
The inverter supports 48 V low-voltage batteries and is compatible with different manufacturers thanks to RS485 and CAN-interfaces.
Can the Deye inverter also be operated without a battery?
Yes, the SUN-16K-SG01LP1-EU works with or without battery storage.
Is parallel operation possible?
Up to 16 devices can be operated in parallel, WAS enables the use in larger projects.
How is the inverter system controlled?
The control is done comfortably via a colored touch-screen directly at the device or via the integrated WLAN APP.
This text is machine translated.
Scope of delivery
- 1 x Deye SUN-16K-SG01LP1-EU inverter
- 1 x Wall Mount Bracket
- 1 x Wi-Fi stick (data logger)
- 1 x current transformers (CT - current transformer)
- 1 x set of PV connectors (MC4 compatible)
- 1 x communication cable (BMS)
- 1 x installation set (screws and plugs)
- 1 x User manual
