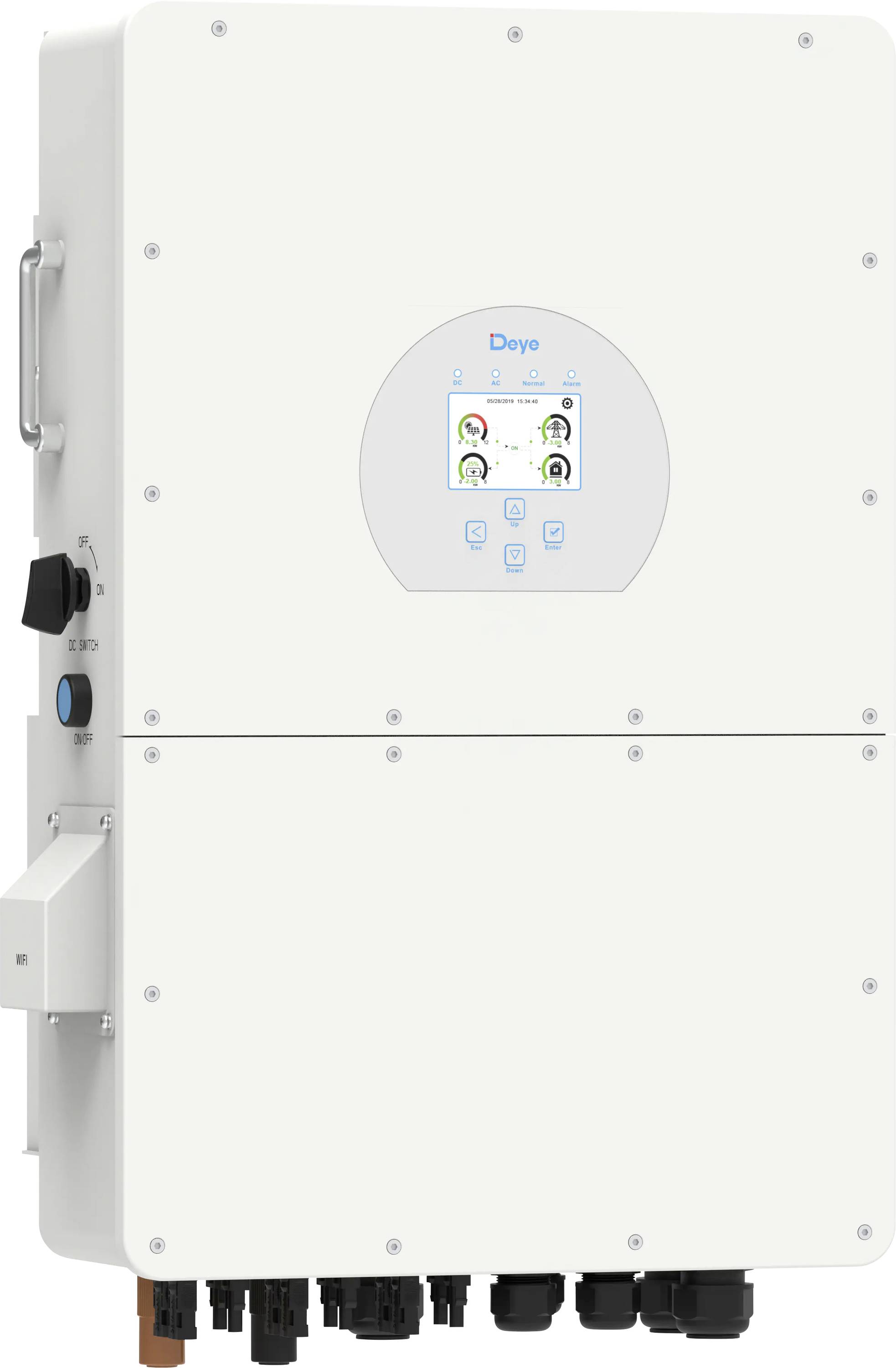

Deye Inverter SUN-30K-SG02HP3-EU-AM3 30000 W 160 V, 800 V - 230 V, 400 V Remote operation
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Deye SUN-30K-SG02HP3-EU-AM3 – 30 kW / 3-phase hybrid inverter (high voltage)
- Enormous 30 kW output power: Sufficient capacity for commercial enterprises, agriculture or large multi-family houses with Hohem power requirement.
- High-volt battery support: Works in voltage range from 160 V to 800 V, WAS increases efficiency and reduces installation costs through lower cable cross-sections.
- 3 MPPT Tracker: Allows flexible occupancy of up to three different roof areas or alignments to optimize yield throughout the day.
- High current PV input: The AM3 series is optimized for modern PV modules with high input currents (up to 36 A per MPPT).
- True 3-phase emergency power: Provides a complete replacement power supply for the entire building with 100% skew capability in the event of a power failure.
- Smart load & generator port: A multi-functional connection for targeted control of large-scale consumers (e.g. air conditioners) or for integrating an external generator.
- Robust IP65 housing: Dust-proof and splash-proof for a reliable installation in the interior and external area.
Technical specifications
- Input voltage
150 V – 850 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
400 V
30000 W
- Input voltage
160 V
800 V
- Nominal load efficiency
97.60 %
- Permanent current
Approx. 43.5 A – 45.5 A
- Remote control
Yes
- Weight
30.5 kg
- Width
408 mm
- Height
638 mm
- Depth
237 mm
- Type
High-voltage hybrid inverter (3-phase)
- Type
SUN-30K-SG02HP3-EU-AM3
- Features
Remote operation
Documents & Downloads
Datasheet
Datasheet 3758485 Deye Inverter SUN-30K-SG02HP3-EU-AM3 30000 W 160 V, 800 V - 230 V, 400 V Remote operation
User & Safety Instructions
User & Safety Instructions 3758485 Deye Inverter SUN-30K-SG02HP3-EU-AM3 30000 W 160 V, 800 V - 230 V, 400 V Remote operation
Description
The Deye SUN-30K-SG02HP3-EU-AM3 is one of the most powerful three-phase high-voltage hybrid inverters for the commercial and demanding private sector. With a nominal power of 30 kW, it serves as the central energy unit that intelligently combines photovoltaics, battery storage and the public network. It is specially designed to cope with large loads and at the same time to ensure maximum independence through the latest storage technology.
Thanks to the AM3 platform, this model supports extremely high PV input currents, WAS ensures compatibility with the latest high-performance solar modules (bifacial or large-format cells). The high voltage battery system enables superior efficiency in power conversion and makes the system an ideal choice for sector coupling (PV, heat, mobility).
Use
-Trade & Industry
-Reduce peak-shaving (peak-shaving) and protect critical infrastructure in the event of power outages.
-Farms
- Supply of energy-intensive plants such as milking machines, fans or cooling systems by extensive PV use.
Accommodation solutions
- Central inverter for tenant current models in combination with heat pump cascades and electric car charging infrastructure.
FAQ for Deye SUN-30K-SG02HP3-EU-AM3
Can the inverter be connected in parallel?
Yes, up to 10 devices. This allows commercial storage solutions to be implemented in the megawatt-hours range, whereby both the power and the storage capacity can be scaled on a modular basis.
Does the device support zero feed?
Yes, precisely configurable. The converter can be controlled using the supplied Smart meter so that no energy is fed into the public mains (zero export function).
How is the system monitored?
Via Solarman Cloud. A WLAN or LAN logger is included as standard, which transfers all performance data to the cloud in real time. The evaluation takes place comfortably via APP or Web browser.
This text is machine translated.
Thanks to the AM3 platform, this model supports extremely high PV input currents, WAS ensures compatibility with the latest high-performance solar modules (bifacial or large-format cells). The high voltage battery system enables superior efficiency in power conversion and makes the system an ideal choice for sector coupling (PV, heat, mobility).
Use
-Trade & Industry
-Reduce peak-shaving (peak-shaving) and protect critical infrastructure in the event of power outages.
-Farms
- Supply of energy-intensive plants such as milking machines, fans or cooling systems by extensive PV use.
Accommodation solutions
- Central inverter for tenant current models in combination with heat pump cascades and electric car charging infrastructure.
FAQ for Deye SUN-30K-SG02HP3-EU-AM3
Can the inverter be connected in parallel?
Yes, up to 10 devices. This allows commercial storage solutions to be implemented in the megawatt-hours range, whereby both the power and the storage capacity can be scaled on a modular basis.
Does the device support zero feed?
Yes, precisely configurable. The converter can be controlled using the supplied Smart meter so that no energy is fed into the public mains (zero export function).
How is the system monitored?
Via Solarman Cloud. A WLAN or LAN logger is included as standard, which transfers all performance data to the cloud in real time. The evaluation takes place comfortably via APP or Web browser.
This text is machine translated.
Scope of delivery
- 1 x Deye SUN-30K-SG02HP3-EU-AM3 inverter
- 1 x Wall Mount Bracket
- 1 x Wi-Fi stick (data logger)
- 3 x current transformers (CT - current transformer)
- 1 x set of PV connectors (MC4 compatible)
- 1 x set of battery connection plugs (high-voltage)
- 1 x communication cable (BMS)
- 1 x installation set (screws and plugs)
- 1 x User manual
