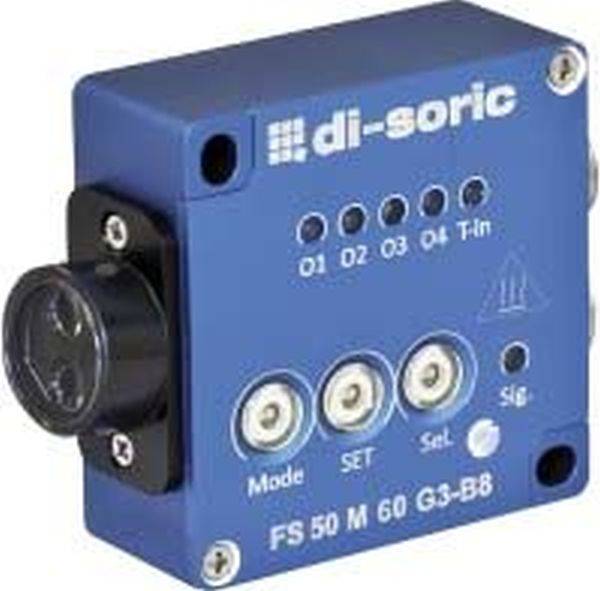

di-soric 207126 207126 Colour sensor 1 pc(s) (L x W x H) 50 x 50 x 21 mm
EAN:
Part number:
Item no:
Product type
Colour sensor
Type
207126
Content
1 pc(s)
Connection
Plug
IP rating
IP54
Datasheet (PDF)
Technical specifications
- Material of the cable jacket: Other
- Product type
Colour sensor
- Type
207126
- Content
1 pc(s)
- Connection
Plug
IP54
- Min. temperature
-10 °C
- Max. temperature
+55 °C
- Length
50 mm
- Width
50 mm
- Height
21 mm
- Dim
(L x W x H) 50 x 50 x 21 mm
- Idle current
500 mA
DC
Aluminium
-10-55 °C
Plug-in connection
NPN/NPN
Change-over contact (NO/NC)
18-28 V
18-28 V
Safety class 3
Other
500 mA
White light
19.625 mm²
FALSE
60 mm
Other
IP54
50 mm
50 mm
21 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3815457 di-soric 207126 207126 Colour sensor 1 pc(s) (L x W x H) 50 x 50 x 21 mm
User & Safety Instructions
User & Safety Instructions 3815457 di-soric 207126 207126 Colour sensor 1 pc(s) (L x W x H) 50 x 50 x 21 mm
Description
Color sensor Switch output coding: Binary coded = 15 switching states, pnp + npn, 4, 4 transmitting light source: LED Light color: White fiber optic connection / fixed optics Sensor Colour channels: 4, 15 (Teach-In by buttons, binary coding) Color space mode: XYZ / xyY / u"v* / L*a*b* / XYL, XYZ lamp / xyY / u"v" (range: 30 mm . 60 mm spot size: 5 . 10 mm operating voltage 18 . 28 V DC Switch output: Pnp/npn, NO/NC Interface: RS232 Dimensions L / H / B: 50 mm, 21 mm, 50 mm Ambient temperature Operation: -10 . +55 °C Connection: Plug, M9, 8-pin
