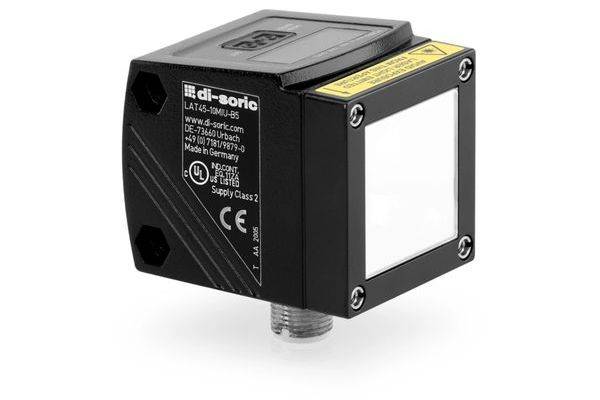

di-soric 213003 Proximity sensor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Proximity sensor
Type
213003
Content
1 pc(s)
Laser category
1
IP rating
IP67
Datasheet (PDF)
Technical specifications
- Material of the cable jacket: Other
- Product type
Proximity sensor
- Type
213003
- Content
1 pc(s)
- Laser category
1
IP67
- Manufacturer part #
213003
- Supply voltage
18-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816655 di-soric 213003 Proximity sensor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3816655 di-soric 213003 Proximity sensor 1 pc(s)
Description
Laser distance sensor Transmission source: Laser class: (IEC 60825-1:2014 / EN 60825-1:2014) Light color: Red Range: 300 . 6000 mm operating voltage 18 . 30 V DC (Supply class 2) Switch output: Pnp, 200 mA, NO/NC Analog output Voltage: 0 . 10 V analog output Current: 4 . 20 mA Interface: IO-Link V1.1, COM2, Smart Sensor Profile Housing material: Zinc die cast, black (painted) Ambient temperature Operation: -10 . +60 °C Protection class IP 67 Connection: Plug, M12, 5-pin
