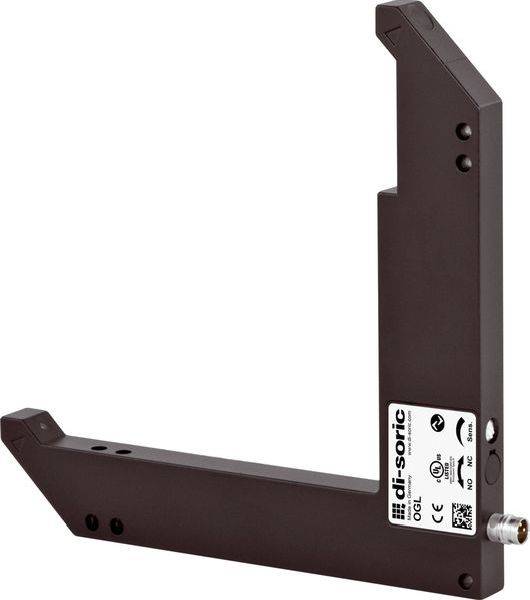

di-soric Angled light barrier 212820 212820 1 pc(s)

High-performance angle light barrier Principle of operation: Optical transmission light source: LED Light color: Infrared wavelength: 860 nm Leg length: 120 mm, 120 mm Operating voltage: 10 . 30 V DC (Supply Class 2) Idle current (max.): 30 mA Switching output: (Push-pull), 100 mA, NO/NC Interface: IO-Link Housing material: Zinc die-cast (powder-coated) Dimensions L / H / B: 150 x 150 x 12 mm, 12 mm Ambient temperature Operation: -25 . +60 °C Protection type: IP 67 Connection: Plug, M8, 3-pin

This text is machine translated.
