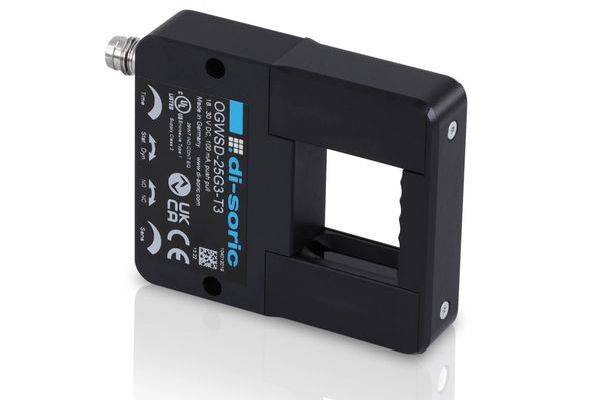

di-soric Door frame light barrier 213347 213347 1 pc(s)
EAN:
Part number:
Item no:
Product type
Door frame light barrier
Type
213347
IP rating
IP67
UKCA
not relevant
Datasheet (PDF)
Technical specifications
- Material of the cable jacket: Other
- Product type
Door frame light barrier
- Type
213347
IP67
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816670 di-soric Door frame light barrier 213347 213347 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3816670 di-soric Door frame light barrier 213347 213347 1 pc(s)
Description
Frame light barrier Evaluation: Switching, dynamic / static switchable Transmission light source: LED Light color: Infrared detection range: 25 x 22 mm Operating voltage: 18 . 30 V DC switching output: Push-pull, 100 mA, NO/NC Housing material: Aluminium, black (anodized) Size: 65.5 x 55 x 15 mm Connection: Plug, M8, 3-pin
This text is machine translated.
This text is machine translated.
Hints
For more information on this 213347, please refer to its datasheet under 'downloadable documents'
