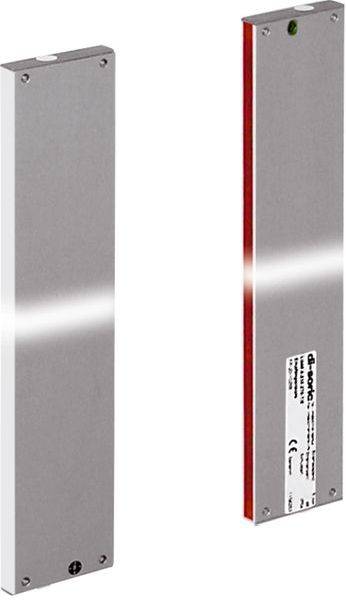

di-soric Light grid Range (max.) 6000 mm Protective field height 1475 mm No. of rays: 296
EAN:
Part number:
Item no:
Product type
Light grid
Length
1510 mm
Height
1475 mm
Type
209563
Range of uses
PPE
Datasheet (PDF)
Technical specifications
- Product type
Light grid
- Type
209563
- Range of uses
PPE
- Connector
Cable
- Cable length
4 m
- Transmitter type
LED IR
- Wavelength
880 nm
- Range (min.)
250 mm
- Range (max.)
6000 mm
- Rays
296
- Beam spacing
5 mm
- Protective field height
1475 mm
- Alu rail height
58 mm
- Total height
1510 mm
- Content
1 pc(s)
IP54
- Length
1510 mm
- Width
12 mm
- Height
1475 mm
- Dim
(L x W x H) 1510 x 12 x 1475 mm
- Min. temperature
-20 °C
- Max. temperature
+40 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817360 di-soric Light grid Range (max.) 6000 mm Protective field height 1475 mm No. of rays: 296
User & Safety Instructions
User & Safety Instructions 3817360 di-soric Light grid Range (max.) 6000 mm Protective field height 1475 mm No. of rays: 296
Description
Light grid Evaluation: Absolute, percent, parameterizable via evaluation electronics Beam spacing: 5 mm Beam number: 296 monitoring height: 1475 mm Profile length: 1510 mm Profile length: 12 x 58 mm Transmission source: LED Light color: Infrared / 880 nm Range: 250 mm. 6000 mm (adjustable via evaluation electronics) Operating voltage: 20 . 26 V DC (see evaluation electronics) Switching output: Parameterizable via evaluation electronics, NO, NC evaluation electronics: External housing material: Aluminum, natural ambient temperature operation: -20 . +40 °C Protection class IP 54 Protection class III, operation at protection extra low voltage Connection: Cable, 4 m.
