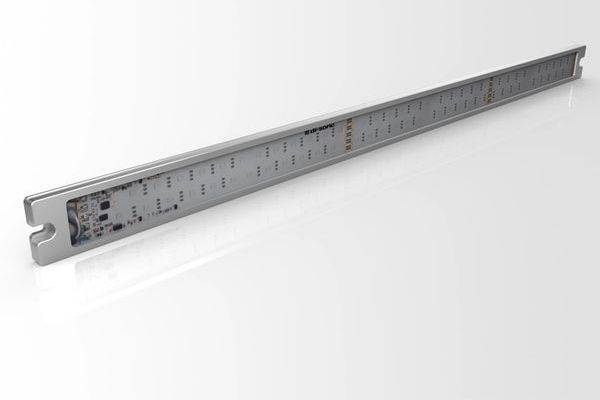

di-soric Light LED 213116 213116 Multi-colour
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Casing color: Other
- Dimmable: True
- Product type
Light
- Max. current consumption
560 mA
- Colour
Multi-colour
- Features
LED
IP67
- Cable length
0.3 m
- Lighted picture
Multi-colour
- Material
Aluminium
- Type
213116
- Width
40 mm
13.4 W
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817616 di-soric Light LED 213116 213116 Multi-colour
User & Safety Instructions
User & Safety Instructions 3817616 di-soric Light LED 213116 213116 Multi-colour
Description
Signal lighting Transmission source: LED Light color: Red, green, yellow, blue, white, Orange, pink, user-defined Radiation angle FWHM: 120° Operating voltage: 18 . 30 V DC (Supply Class 2) Internal power consumption: 560 mA (24 V DC) Trigger input Low Level: 8 V Interface: IO-Link (V1.1, COM2 38.4 kBd, 5000 µs, process data) Housing material: Aluminium, natural (anodized) Component: Window, PU, crystal-clear Protection class: IP 67 Risk group (DIN EN 62471): Free group Protection class III, operation on protection extra-low voltage Connection: Pigtail, 0.3 m, M12, 5-pin
