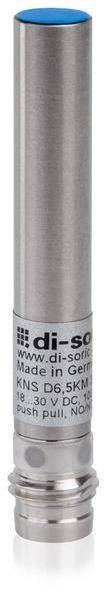

di-soric Proximity sensor Capacitive 212671 212671 6.5 mm shielded (Ø x L) 6.5 mm x 44.9 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
2 mm
Model
Capacitive
Length
44.9 mm
(Ø)
6.5 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
212671
- Switching distance (max.)
2 mm
- Enclosure material
Brass
- Model
Capacitive
- Installation type
shielded
- Size
6.5 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
44.9 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 44.9 mm
- Content
1 pc(s)
- Supply voltage
18-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817349 di-soric Proximity sensor Capacitive 212671 212671 6.5 mm shielded (Ø x L) 6.5 mm x 44.9 mm
User & Safety Instructions
User & Safety Instructions 3817349 di-soric Proximity sensor Capacitive 212671 212671 6.5 mm shielded (Ø x L) 6.5 mm x 44.9 mm
Description
Capacitive proximity sensor Operating principle: Capacitive Mounting type: Flush Switching distance: 2 mm Operating voltage: 18 . 30 V DC switching output: Push-pull, 100 mA, NO/NC idle current (max.): 15 mA Design: Cylinder housing material: Brass size: Ø 6.5 mm housing length: 44.9 mm Protection type: IP 65, IP 67 ambient temperature Operation: -25 . +70 °C Connection: Plug, M8, 3-pin
