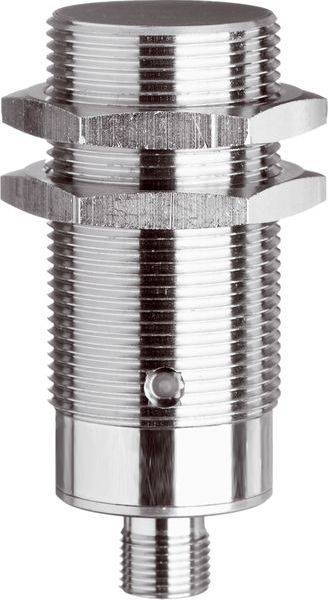

di-soric Proximity sensor Inductive 200378 200378 M30 quasi-shielded (Ø x L) 30 mm x 73.5 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Contact type
1 maker
Switching distance (max.)
22 mm
Model
Inductive
Length
73.5 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
200378
- Contact type
1 maker
- Switching distance (max.)
22 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
quasi-shielded
- Size
M30
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
73.5 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 73.5 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3815436 di-soric Proximity sensor Inductive 200378 200378 M30 quasi-shielded (Ø x L) 30 mm x 73.5 mm
User & Safety Instructions
User & Safety Instructions 3815436 di-soric Proximity sensor Inductive 200378 200378 M30 quasi-shielded (Ø x L) 30 mm x 73.5 mm
Description
Inductive proximity sensor Operating principle: Inductive installation type: Quasi flush switching distance: 22 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Thread Special features: Extremely high switching distance Housing material: Brass Size: M30 x 1.5 Housing length: 73.5 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M12, 4-pin, A-coded
