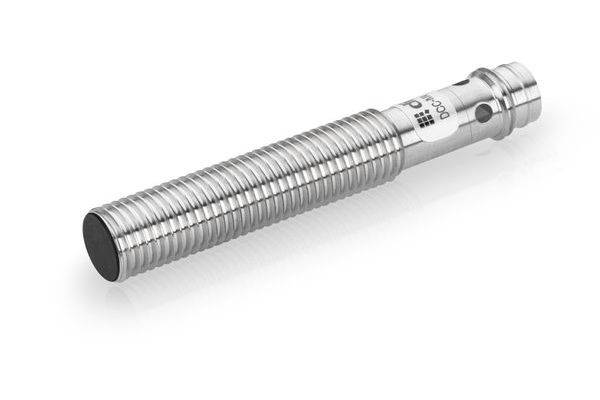

di-soric Proximity sensor Inductive 206609 206609 shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
2 mm
Model
Inductive
Length
45 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
206609
- Contact type
1 breaker
- Switching distance (max.)
2 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
45 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816119 di-soric Proximity sensor Inductive 206609 206609 shielded
User & Safety Instructions
User & Safety Instructions 3816119 di-soric Proximity sensor Inductive 206609 206609 shielded
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 2 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Thread Special features: Increased switching distance Housing material: Stainless steel Size: M8 x 1 Housing length: 45 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
