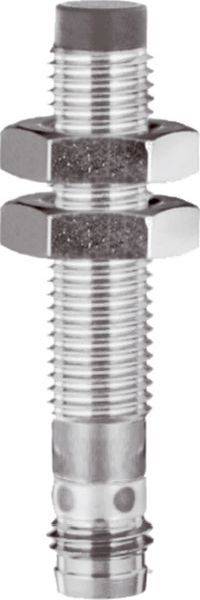

di-soric Proximity sensor Inductive 206617 206617 non-shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
2.5 mm
Model
Inductive
Length
45 mm
Type
206617
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
206617
- Switching distance (max.)
2.5 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
45 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
DC
Metal
FALSE
2000 Hz
2.5 mm
Connector M8
PNP
10-30 V
10-30 V
Cylinder, screw-thread
Not flat
10-30 V
Other
8 mm
45 mm
Documents & Downloads
Datasheet
Datasheet 3816147 di-soric Proximity sensor Inductive 206617 206617 non-shielded
User & Safety Instructions
User & Safety Instructions 3816147 di-soric Proximity sensor Inductive 206617 206617 non-shielded
User & Safety Instructions 3816147 di-soric Proximity sensor Inductive 206617 206617 non-shielded
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 2.5 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Thread Special features: Increased switching distance Housing material: Stainless steel Size: M8 x 1 Housing length: 45 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
