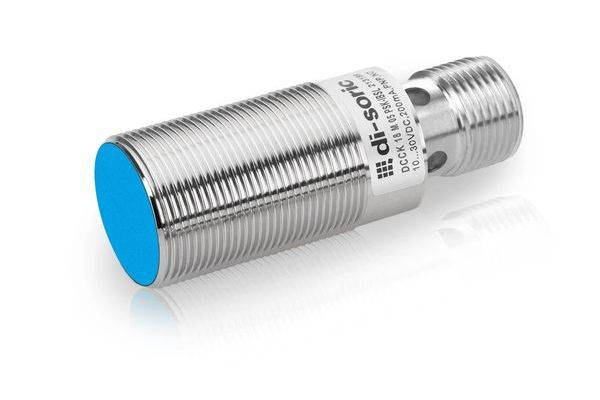

di-soric Proximity sensor Inductive 206669 206669 M18 x 1 shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
5 mm
Model
Inductive
Length
50 mm
Type
206669
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
206669
- Switching distance (max.)
5 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
50 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816158 di-soric Proximity sensor Inductive 206669 206669 M18 x 1 shielded
User & Safety Instructions
User & Safety Instructions 3816158 di-soric Proximity sensor Inductive 206669 206669 M18 x 1 shielded
User & Safety Instructions 3816158 di-soric Proximity sensor Inductive 206669 206669 M18 x 1 shielded
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 5 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Thread Housing material: Brass size: M18 x 1 Housing length: 50 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M12, 3-pin, A-coded
