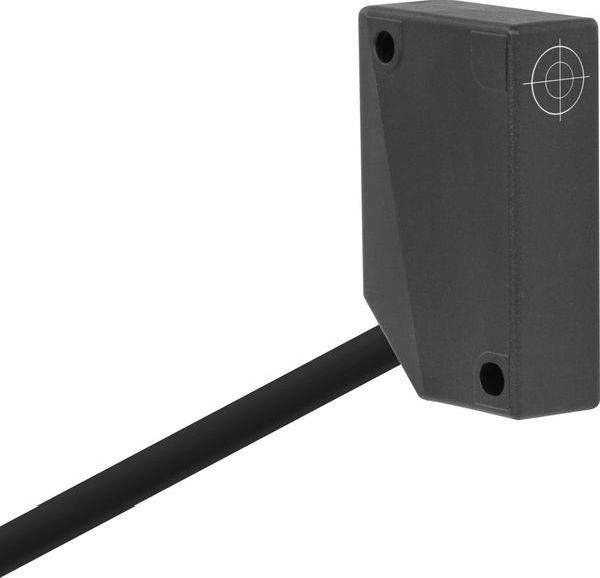

di-soric Proximity sensor Inductive 207428 207428 shielded (L x W) 26 mm x 40 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Contact type
1 maker
Switching distance (max.)
2 mm
Model
Inductive
Connector
Cable
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
207428
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Enclosure material
Plastic
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
26 mm
- Width
40 mm
- Depth
12 mm
- Dim
(L x W) 26 mm x 40 mm
- Content
1 pc(s)
- Supply voltage
10-35 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816181 di-soric Proximity sensor Inductive 207428 207428 shielded (L x W) 26 mm x 40 mm
User & Safety Instructions
User & Safety Instructions 3816181 di-soric Proximity sensor Inductive 207428 207428 shielded (L x W) 26 mm x 40 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 2 mm Operating voltage: 10 . 35 V DC switch output: Pnp, 200 mA, NO Evaluation: Digital design: Quader housing material: Plastic Size: 40 x 12 mm Housing length: 26 mm Ambient temperature Operation: -25 . +70 °C Protection type IP 67 Connection: Cable, PUR, 2 m
