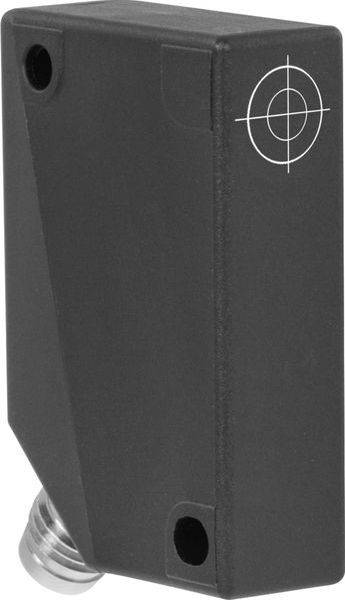

di-soric Proximity sensor Inductive 207429 207429 non-shielded (L x W x H) 26 x 40 x 12 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
4 mm
Model
Inductive
Length
26 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
207429
- Contact type
1 breaker
- Switching distance (max.)
4 mm
- Enclosure material
Plastic
- Model
Inductive
- Installation type
non-shielded
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
26 mm
- Width
40 mm
- Height
12 mm
- Dim
(L x W x H) 26 x 40 x 12 mm
- Content
1 pc(s)
- Supply voltage
10-35 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816184 di-soric Proximity sensor Inductive 207429 207429 non-shielded (L x W x H) 26 x 40 x 12 mm
Datasheet 3816184 di-soric Proximity sensor Inductive 207429 207429 non-shielded (L x W x H) 26 x 40 x 12 mm
User & Safety Instructions
User & Safety Instructions 3816184 di-soric Proximity sensor Inductive 207429 207429 non-shielded (L x W x H) 26 x 40 x 12 mm
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 4 mm Operating voltage: 10 . 35 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Quader housing material: Plastic Size: 40 x 12 mm Housing length: 26 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
