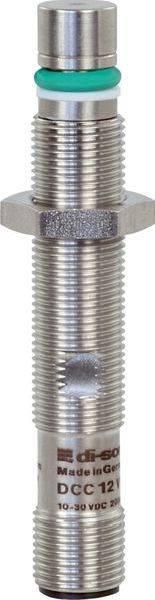

di-soric Proximity sensor Inductive 207470 207470 shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
2 mm
Model
Inductive
Length
69 mm
Type
207470
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
207470
- Switching distance (max.)
2 mm
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Installation type
shielded
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Length
69 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816149 di-soric Proximity sensor Inductive 207470 207470 shielded
User & Safety Instructions
User & Safety Instructions 3816149 di-soric Proximity sensor Inductive 207470 207470 shielded
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 2 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO evaluation: Digital design: Thread Special features: High pressure resistant housing material: Stainless steel, V2A 1.4301 / AISI 304 Size: M12 x 1 Housing length: 69 mm Ambient temperature Operation: -25 . +100 °C Protection type: IP 68, IP 69K Connection: Plug, M12, 4-pin, A-coded
