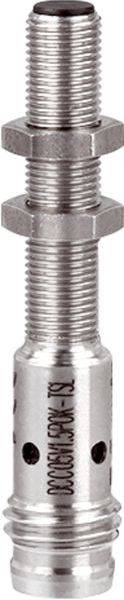

di-soric Proximity sensor Inductive 210485 210485 M5 shielded (Ø x L) 5 mm x 38.4 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
1.5 mm
Model
Inductive
Length
38.4 mm
(Ø)
5 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
210485
- Switching distance (max.)
1.5 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M5
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
38.4 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 38.4 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817638 di-soric Proximity sensor Inductive 210485 210485 M5 shielded (Ø x L) 5 mm x 38.4 mm
User & Safety Instructions
User & Safety Instructions 3817638 di-soric Proximity sensor Inductive 210485 210485 M5 shielded (Ø x L) 5 mm x 38.4 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 1.5 mm Operating voltage: 10 . 30 V DC switching output: Npn, 100 mA, NC Evaluation: Digital design: Thread Special features: Increased switching distance Housing material: Stainless steel, AISI303 Size: M5 x 0.5 Housing length: 38.4 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
