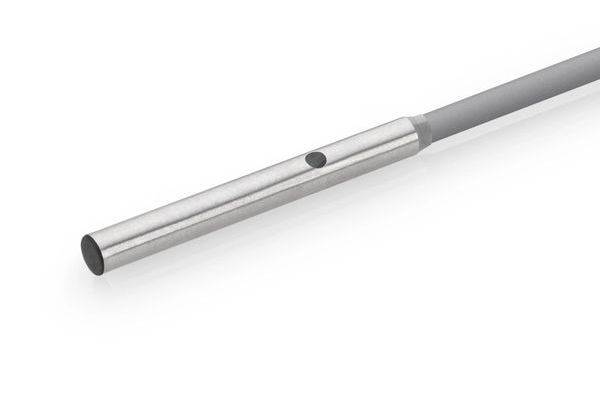

di-soric Proximity sensor Inductive 213199 213199 M5 shielded (Ø x L) 5 mm x 28 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Contact type
1 maker
Switching distance (max.)
0.8 mm
Model
Inductive
Connector
Cable
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
213199
- Contact type
1 maker
- Switching distance (max.)
0.8 mm
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Installation type
shielded
- Size
M5
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
28 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 28 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817654 di-soric Proximity sensor Inductive 213199 213199 M5 shielded (Ø x L) 5 mm x 28 mm
User & Safety Instructions
User & Safety Instructions 3817654 di-soric Proximity sensor Inductive 213199 213199 M5 shielded (Ø x L) 5 mm x 28 mm
User & Safety Instructions 3817654 di-soric Proximity sensor Inductive 213199 213199 M5 shielded (Ø x L) 5 mm x 28 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Thread Special features: Easy switching distance Housing material: Stainless steel, V4A Size: M5 x 0.5 Housing length: 28 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
