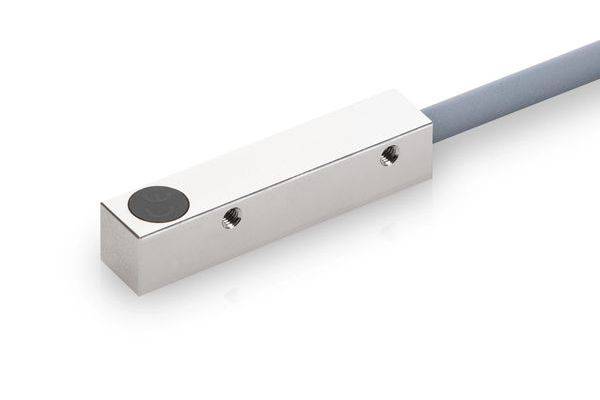

di-soric Proximity sensor Inductive 213244 213244 5 x 5 mm shielded NPN (L x W) 27 mm x 5 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
0.8 mm
Outputs
NPN
Model
Inductive
Connector
Cable
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
213244
- Switching distance (max.)
0.8 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
5 x 5 mm
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
27 mm
- Width
5 mm
- Depth
5 mm
- Dim
(L x W) 27 mm x 5 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817618 di-soric Proximity sensor Inductive 213244 213244 5 x 5 mm shielded NPN (L x W) 27 mm x 5 mm
User & Safety Instructions
User & Safety Instructions 3817618 di-soric Proximity sensor Inductive 213244 213244 5 x 5 mm shielded NPN (L x W) 27 mm x 5 mm
User & Safety Instructions 3817618 di-soric Proximity sensor Inductive 213244 213244 5 x 5 mm shielded NPN (L x W) 27 mm x 5 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NC Evaluation: Digital design: Quader Features: Easy switching distance Housing material: Brass size: 5 x 5 mm Housing length: 27 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
