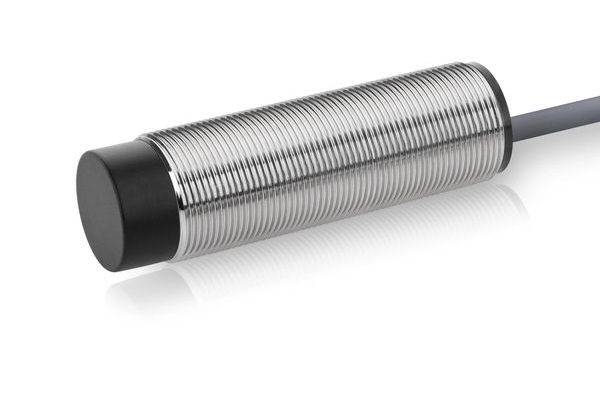

di-soric Proximity sensor Inductive 213260 213260 M18 non-shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
8 mm
Model
Inductive
Connector
Cable
Length
55 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
213260
- Switching distance (max.)
8 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M18
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
55 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817743 di-soric Proximity sensor Inductive 213260 213260 M18 non-shielded
User & Safety Instructions
User & Safety Instructions 3817743 di-soric Proximity sensor Inductive 213260 213260 M18 non-shielded
User & Safety Instructions 3817743 di-soric Proximity sensor Inductive 213260 213260 M18 non-shielded
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 8 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NC Evaluation: Digital design: Thread Special features: Easy switching distance housing material: Brass Size: M18 x 1 Housing length: 55 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
