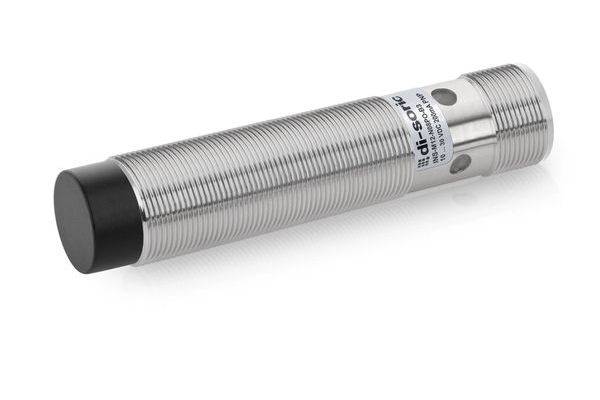

di-soric Proximity sensor Inductive 213303 213303 M12 non-shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
8 mm
Model
Inductive
Length
68 mm
Type
213303
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
213303
- Switching distance (max.)
8 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
68 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817570 di-soric Proximity sensor Inductive 213303 213303 M12 non-shielded
User & Safety Instructions
User & Safety Instructions 3817570 di-soric Proximity sensor Inductive 213303 213303 M12 non-shielded
User & Safety Instructions 3817570 di-soric Proximity sensor Inductive 213303 213303 M12 non-shielded
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC evaluation: Digital design: Thread Special features: Two switching distances housing material: Brass Size: M12 x 1 Housing length: 68 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M12, 3-pin, A-coded
