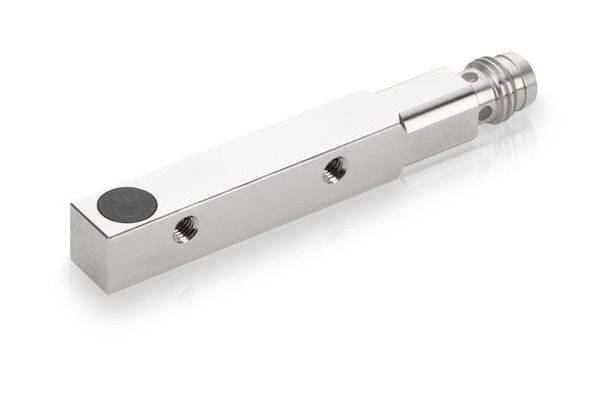

di-soric Proximity sensor Inductive 213314 213314 8 x 8 mm shielded
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
2 mm
Model
Inductive
Length
60 mm
Type
213314
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
213314
- Switching distance (max.)
2 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
8 x 8 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
60 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817625 di-soric Proximity sensor Inductive 213314 213314 8 x 8 mm shielded
User & Safety Instructions
User & Safety Instructions 3817625 di-soric Proximity sensor Inductive 213314 213314 8 x 8 mm shielded
User & Safety Instructions 3817625 di-soric Proximity sensor Inductive 213314 213314 8 x 8 mm shielded
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 2 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NO Evaluation: Digital Design: Quader Special features: Two switching distances Housing material: Brass Size: 8 x 8 mm Housing length: 60 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
