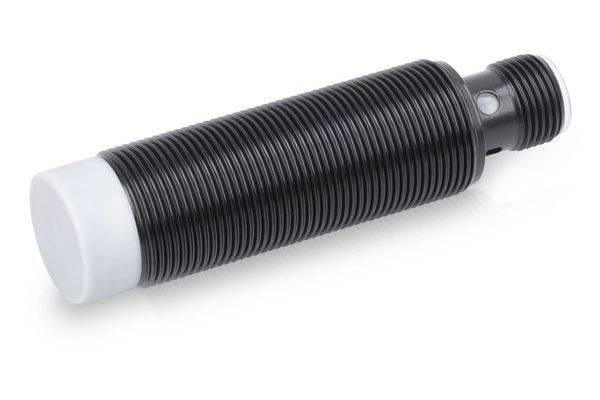

di-soric Proximity sensor Inductive 214810 214810 M18 x 1 non-shielded NPN
EAN:
Part number:
Item no:
Product type
Proximity sensor
Switching distance (max.)
8 mm
Outputs
NPN
Model
Inductive
Length
79 mm
Datasheet (PDF)
Technical specifications
- Product type
Proximity sensor
- Type
214810
- Switching distance (max.)
8 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M18 x 1
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
79 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
DC
Metal
FALSE
Other
8 mm
Connector M12
NPN
10-30 V
10-30 V
Cylinder, screw-thread
Not flat
10-30 V
Other
18 mm
79 mm
Documents & Downloads
Datasheet
Datasheet 3817849 di-soric Proximity sensor Inductive 214810 214810 M18 x 1 non-shielded NPN
User & Safety Instructions
User & Safety Instructions 3817849 di-soric Proximity sensor Inductive 214810 214810 M18 x 1 non-shielded NPN
User & Safety Instructions 3817849 di-soric Proximity sensor Inductive 214810 214810 M18 x 1 non-shielded NPN
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 8 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NC Evaluation: Digital design: Thread Housing material: Brass size: M18 x 1 Housing length: 79 mm Ambient temperature Operation: -25 . +70 °C Protection type IP 67 Connection: Plug, M12, 4-pin
