di-soric Proximity sensor Inductive DCCQ05M1.5 PSK-K-TSL 200513 5 x 5 mm shielded (L x W x H) 25 x 5 x 5 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity sensor
Contact type
1 maker
Switching distance (max.)
1.5 mm
Model
Inductive
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Proximity sensor
- Type
DCCQ05M1.5 PSK-K-TSL
- Contact type
1 maker
- Switching distance (max.)
1.5 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
5 x 5 mm
- Cable length
0.2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
5 mm
- Height
5 mm
- Dim
(L x W x H) 25 x 5 x 5 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3815504 di-soric Proximity sensor Inductive DCCQ05M1.5 PSK-K-TSL 200513 5 x 5 mm shielded (L x W x H) 25 x 5 x 5 mm Piece
User & Safety Instructions
User & Safety Instructions 3815504 di-soric Proximity sensor Inductive DCCQ05M1.5 PSK-K-TSL 200513 5 x 5 mm shielded (L x W x H) 25 x 5 x 5 mm Piece
Description

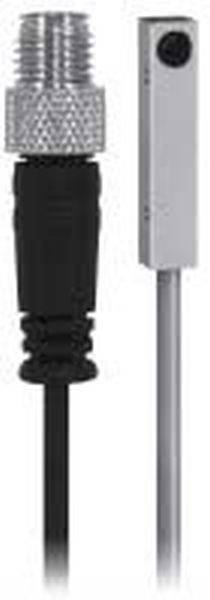

Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 1.5 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Quader Features: Increased switching distance Housing material: Nickel brass Size: 5 x 5 mm Housing length: 25 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Pigtail, PUR, 0.2 m, M8, 3-pin, A-coded
