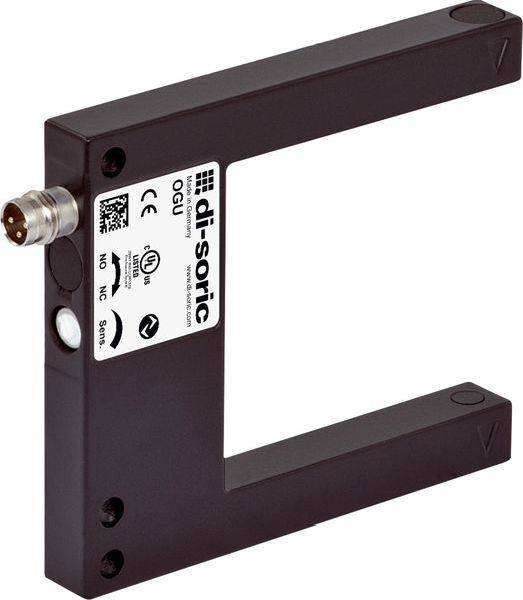

di-soric Reflective light barrier 210244 210244 1 pc(s)

Fork light barrier Principle of operation: Optical transmission light source: LED Light color: Red fork width: 50 mm Operating voltage: 10 . 30 V DC idle current (max.): 30 mA switching output: Odd, 100 mA, NO/NC Interface: IO-Link (V1.1, COM2 38.4 kBd, Smart sensor profile) Resolution (factory settings): 0.3 mm (STANDARD) Reproducibility (factory settings): 10 mm (STANDARD) Housing material: Die-cast zinc, black (powder coated) Dimensions H / L / B: -25, 80, 0.02 mm Ambient temperature Operation: 70 . +60 °C Connection: Plug, M8, 3-pin

This text is machine translated.
