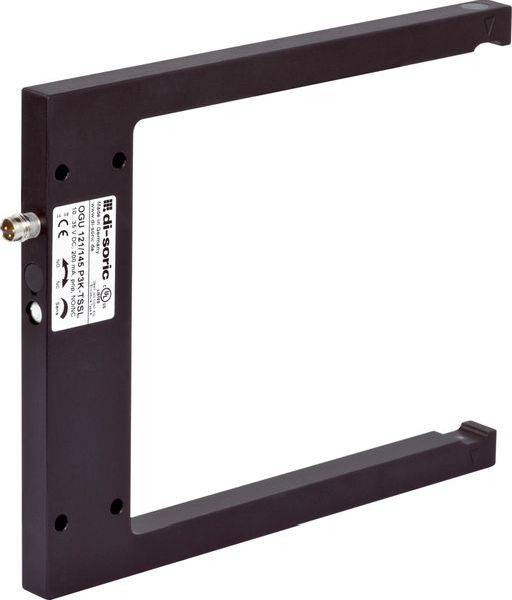

di-soric Reflective light barrier 212817 212817 1 pc(s)

Fork light barrier Principle of operation: Optical transmission light source: LED Light color: Red fork width: 120 mm Operating voltage: 10 . 30 VDC (supply class 2) Idle current (max.): 30 mA Switching output: Odd, 100 mA, NO/NC Interface: IO-Link (V1.1, COM2 38.4 kBd, Smart sensor profile) Resolution (factory settings): 175 mm (STANDARD) Reproduction (factory settings): 12 mm (STANDARD) Casing material: Aluminium, black (anodized) Dimensions H / L / B: 144, 0.5, 0.02 mm Ambient temperature Operation: -25 . +60 °C Connection: Plug, M8, 3-pin

This text is machine translated.
