di-soric Sensor Inductive 213673 213673 (Ø) 50.1 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
Antivalent
Model
Inductive
(Ø)
50.1 mm
Type
213673
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
213673
- Contact type
Antivalent
- Enclosure material
Plastic
- Model
Inductive
- Min. temperature
-25 °C
- Max. temperature
70 °C
- (Ø)
50.1 mm
- Dim
(Ø) 50.1 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817705 di-soric Sensor Inductive 213673 213673 (Ø) 50.1 mm
User & Safety Instructions
User & Safety Instructions 3817705 di-soric Sensor Inductive 213673 213673 (Ø) 50.1 mm
Description

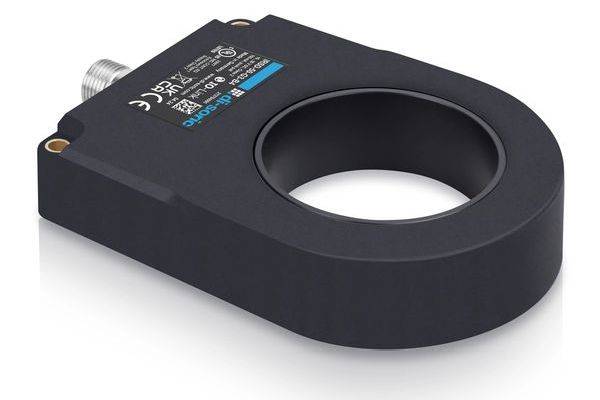

Inductive ring sensor Inner diameter: 50.1 mm Operating voltage: 10 . 30 V DC switching output: Push-pull/PNP/NPN, 100 mA, NO/NC No-load current (max.): 30 mA Part speed (min.): 0.1 m/s Part speed (max.): 35 m/s Housing material: Plastic Protection type: IP 67 Ambient temperature Operation: -25 . +70 °C Connection: Plug, M12, 4-pin, A-coded
