di-soric Sensor Ultrasound 210259 210259
EAN:
Part number:
Item no:
Product type
Sensor
Model
Ultrasound
Type
210259
Min. temperature
0 °C
Max. temperature
+60 °C
Datasheet (PDF)
Technical specifications
- Material of the cable jacket: Other
- Product type
Sensor
- Type
210259
- Model
Ultrasound
- Min. temperature
0 °C
- Max. temperature
+60 °C
IP67
- Content
1 pc(s)
- Idle current
40 mA
- Supply voltage
18-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817316 di-soric Sensor Ultrasound 210259 210259
User & Safety Instructions
User & Safety Instructions 3817316 di-soric Sensor Ultrasound 210259 210259
Description

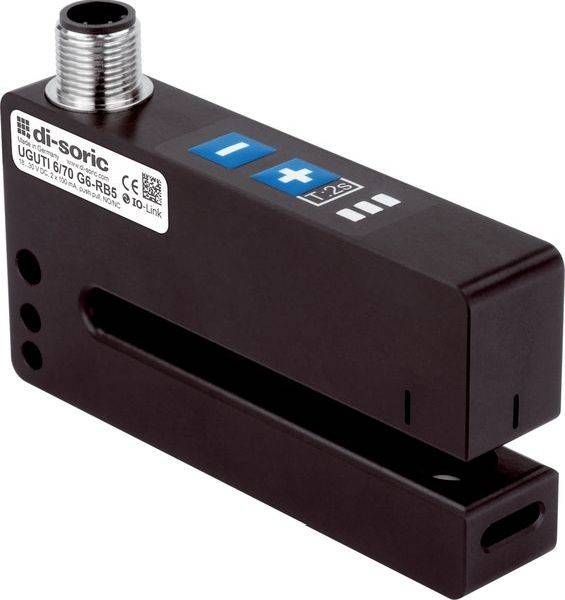

Ultrasonic label sensor Operating principle: Ultrasonic one way barrier Sensitivity adjustment: Fernteach, keyboard Fork width: 6 mm Leg length: 70 mm Operating voltage: 18 . 30 V DC Idle current (max.): 40 mA Switching output: Push-pull, NO/NC Special features: Plug outlet to top Interface: IO-Link (V1.1, COM2 38.4 kBd, Smart sensor profile) Ambient temperature Operation: 0 . +60 °C Protection class IP 67 Connection: Plug, M12, 5-pin
