Dicota Compact USB charger 65 W 1x USB-A, 2x USB-C® Power Delivery White Indoors GaN
EAN:
Part number:
Item no:
Dicota Compact USB charger
Highlights & Details
- Universal wall charger for laptops, tablets, smartphones and other devices
- 2-pin EU version
- Gallium nitrite technology for efficient charging and compact size
- Protection against overcurrent, overvoltage, short circuit and overheating
- Ultra-compact and light design - only 116 g.
- Input AC 100-240 V 50/60 Hz
- OUTPUT: SINGLE CONNECTION USB-C 1/2 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A (60 W MAX.)
- USB-A: 4.5 V/5 A, 5 V/4.5 A, 9 V/3 A, 12 V/2.5 A, 20 V/1.5 A (30 W MAX.)
- OUTPUT: DOUBLE CONNECTION: USB-C1+USB-C2 45 W (5 V/9 V/12 V/15 V/3 A, 20 V/2.25 A) + 20 W (5 V/3 A, 9 V/2.2 A, 12 V/1.67 A)
- USB-C1+USB-A 5 W (5 V/9 V/12 V/15 V/3 A, 20 V/2.25 A) + 18 W (5 V/3 A, 9 V/2 A, 12 V/1.5 A)
- USB-C2+USB-A 5 V/3 A (SHARED)
- -WAY CONNECTION: USB-C1 45 W (5 V/9 V/12 V/15 V/3 A, 20 V/2.25A), USB-C2 + USB-A 5 V/3 A (SHARED)

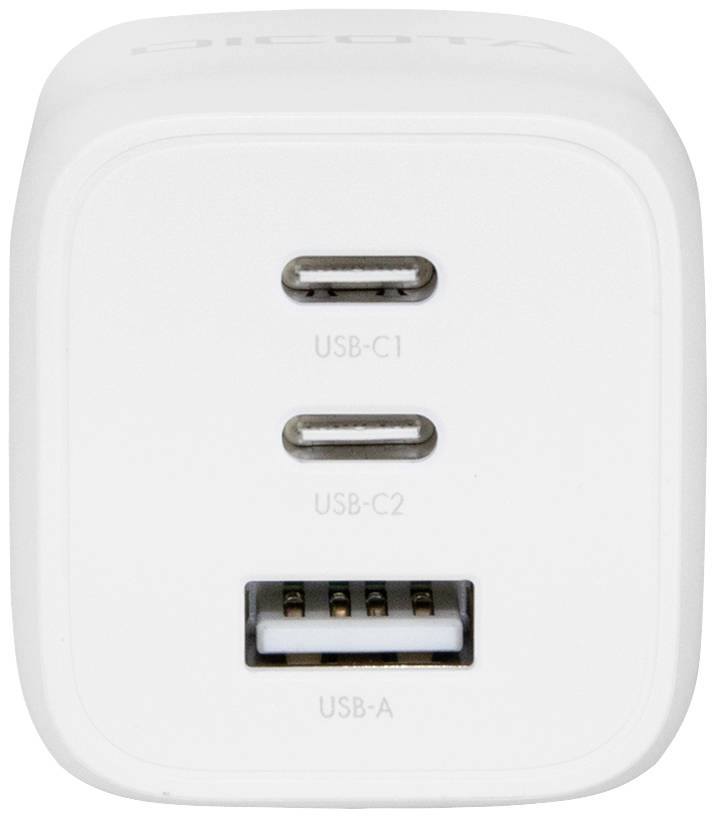

- 2 x USB-C, 1 x USB A port
- 65 W maximum power
Technical specifications
- Product type
USB charger
65 W
- Inputs
Europlug
- Input voltage
100 - 240 V AC
- No. of outputs
3 x
- Outputs
1x USB-A
2x USB-C®
- Output current (max.) - rounded
5 A
- Max. output current
5 A
- Type
Compact
- Suitable for
Smartphone
Tablet
- Suitable for
Universal
- PSU features
GaN
- Dim
(L x W x H) 84.3 x 38 x 40.5 mm
- Height
40.5 mm
- Length
84.3 mm
- Width
38 mm
- Weight
116 g
- Factory colour
White
- Used at
Indoors
- Charging method
Power Delivery
- Type
Compact
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3160368 Dicota Compact USB charger 65 W 1x USB-A, 2x USB-C® Power Delivery White Indoors GaN
Description
The universal GaN charger is compatible with many devices such as notebooks, tablets, smartphones and others and charges it quickly and securely.
The GaN technology offers a higher efficiency and power density than conventional chargers and makes the charger smaller, lighter and more efficient. With two USB-C outputs using Power delivery 3.0 technology, the charger achieves fast charging speeds with a maximum power of 65 W. In addition to its universal compatibility and fast charging performance, the charger offers reliable protection against over-current, over-voltage, short-circuit and overheating. All in all, the GaN charger impresses with its fast and safe charging performance for a wide range of devices and is the perfect choice for anyone looking for a reliable and compact charger while on the move.
This text is machine translated.
The GaN technology offers a higher efficiency and power density than conventional chargers and makes the charger smaller, lighter and more efficient. With two USB-C outputs using Power delivery 3.0 technology, the charger achieves fast charging speeds with a maximum power of 65 W. In addition to its universal compatibility and fast charging performance, the charger offers reliable protection against over-current, over-voltage, short-circuit and overheating. All in all, the GaN charger impresses with its fast and safe charging performance for a wide range of devices and is the perfect choice for anyone looking for a reliable and compact charger while on the move.
This text is machine translated.
