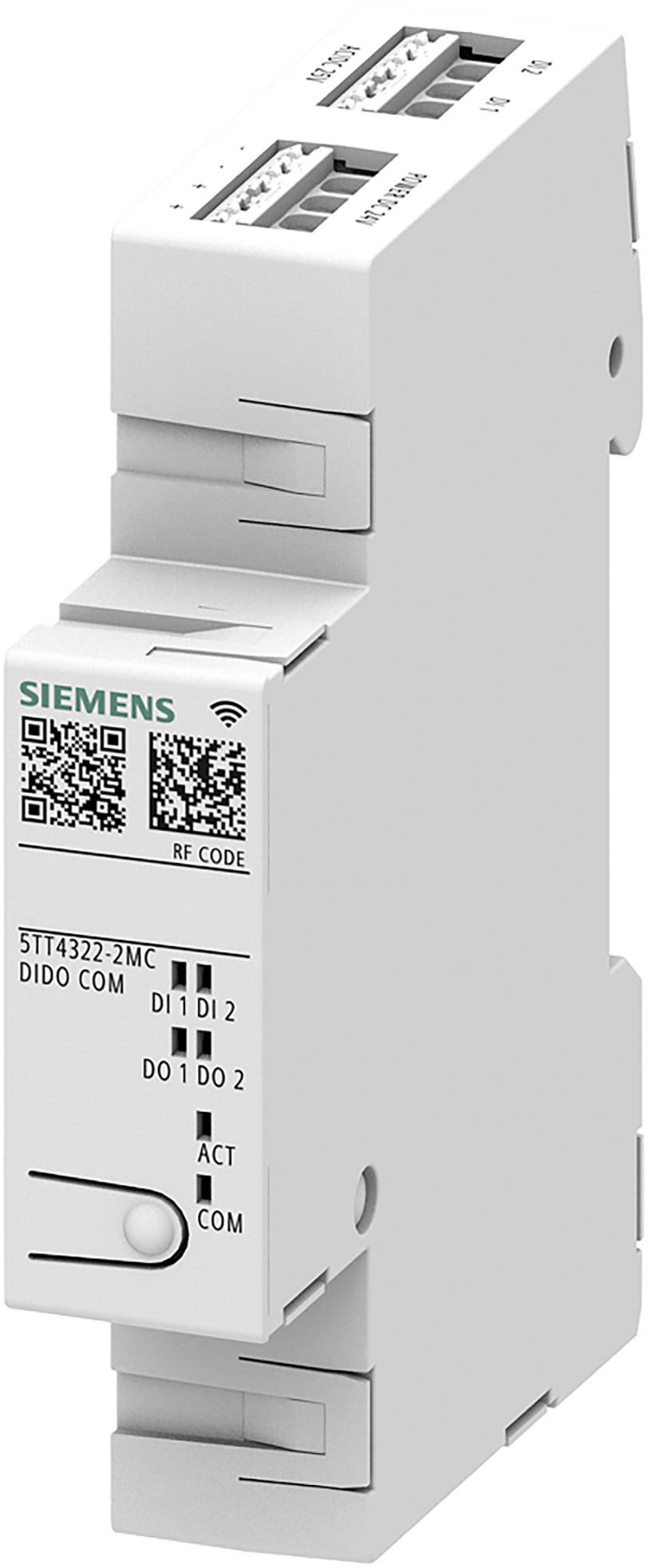

Digital I/O module DIN rail Siemens 5TT4322-2MC 24 V DC 5 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Digital I/O module
Operating voltage
24 V DC
Switching voltage (max.)
230 V AC
Switching current (max.)
5 A
Technical specifications
- Packaging type
Piece
- Product type
Digital I/O module
- Type
5TT4322-2MC
- Operating voltage
24 V DC
- Permanent current (max.)
5 A
- Switching voltage (max.)
230 V AC
- Switching current (max.)
5 A
- Mounting type
DIN rail
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749692 Digital I/O module DIN rail Siemens 5TT4322-2MC 24 V DC 5 A Piece 1 pc(s)
Description

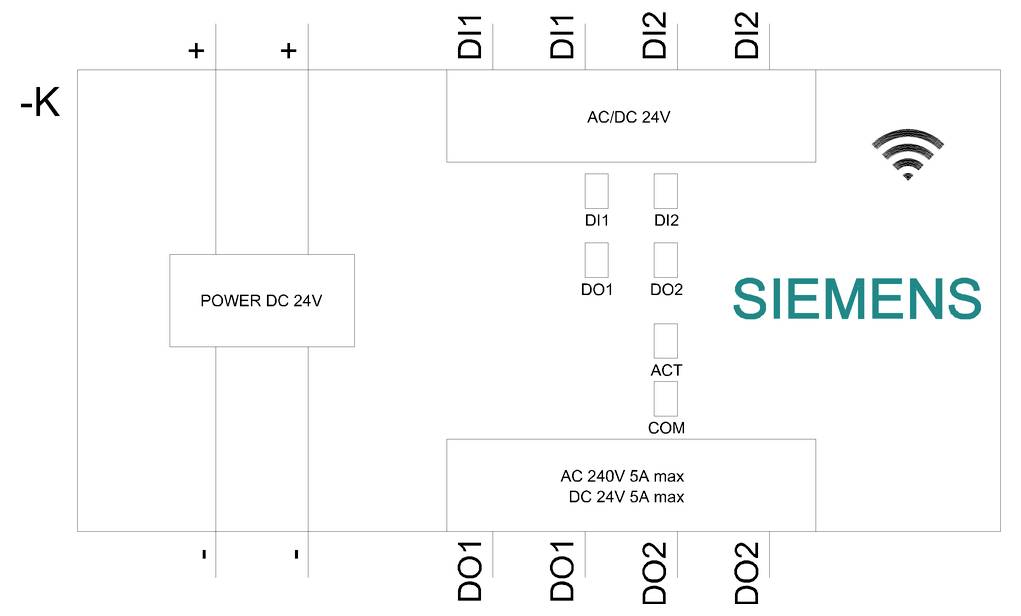

Digital input / digital output module 5TT4 COM with communication function, 24V DC, 2 inputs 24V AC/DC incl. logical links, 2 outputs 230V AC, please note radio permission! Country list: See Digital I/O module SENTRON 5TT4 certificates for residential and functional applications and industrial applications. SENTRON switching devices offer convenient and easy mounting and connection technology as well as reliable installation safety thanks to standard contact protection. The remote switches, switching relays, Insta-contactors and time switches offer you numerous options for implementing Diverser switching functions. For SENTRON switching devices you have a wide range of and problem-free mounting accessories at your disposal. Optimal technology for your safety - only from Siemens.
