Digitus AK-219602 Digitus AK-219602 N/A AK-219602 Plug, straight No. of pins (RJ) 8P8C 1 pc(s) AK-219602 Plug, straight
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
RJ45 connector
Connector type
Plug, straight
No. of pins
8P8C
Specification
CAT 6
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.29
30
10% = € 0.03
€ 0.26
50
14% = € 0.04
€ 0.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.29 / piece)
€ 0.32
-9 %
€ 2.90
plus VAT.
Highlights & Details

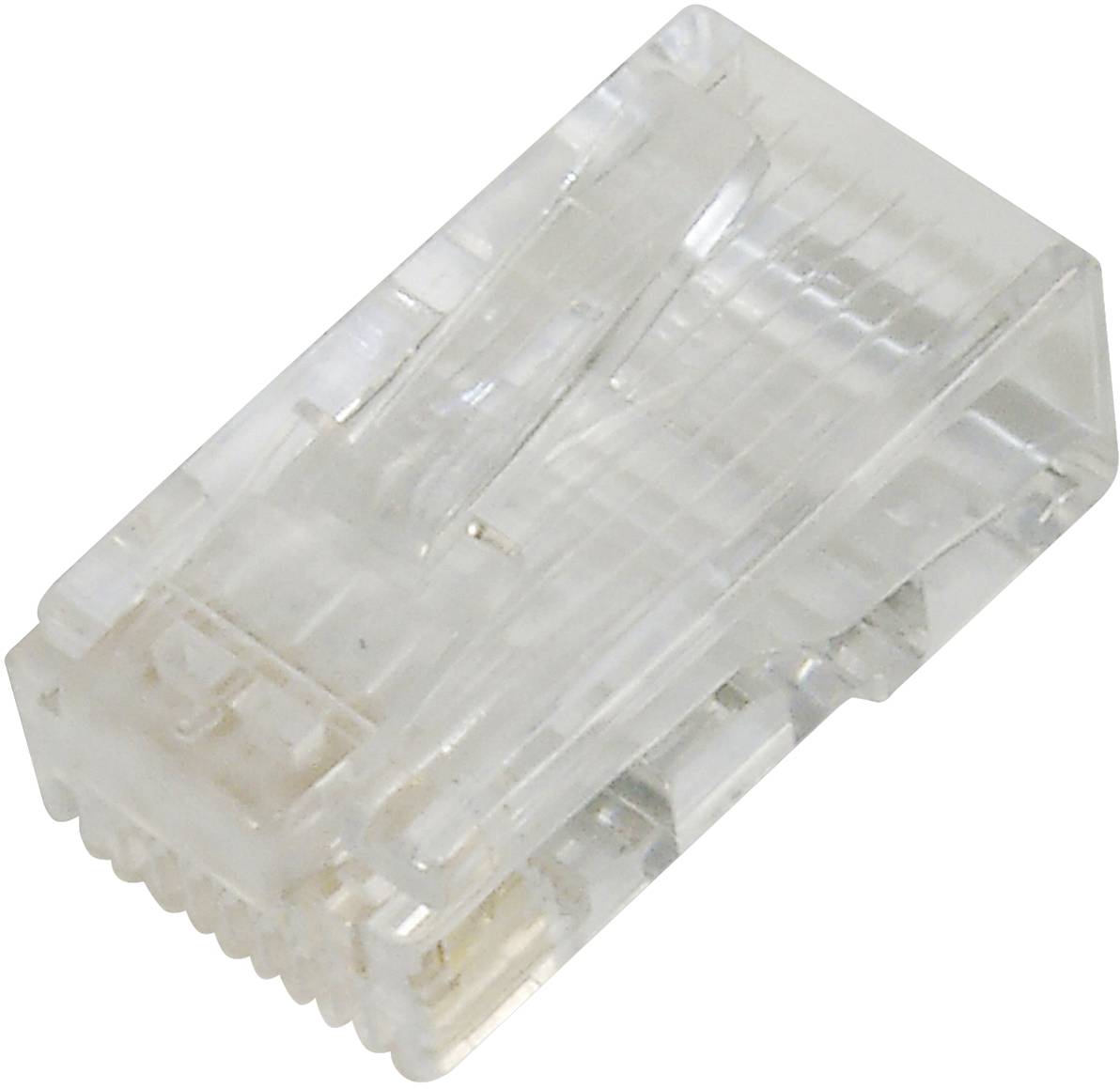

Cat 6 RJ45 modular plug, unshielded
Our service for you
Technical specifications
- Performance characteristics: Cat 6, 1GBase-T
- Application areas: Patch cable assembly
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C UL-certified Plug cycle Socket: Greater than 750 acc. To ISO/IEC 11801, IEC 60603-7-5 Material plug-in casing:
- Polycarbonate,
- natural plug contact: Phosphor bronze, nickel 0.6 μ gold plated
- Flammability: UL 94V-2 Plug force
- : Less than 2701/Cu-7 AWG (diameter: 7/AWG) 24/7)
- Operating temperature: -40 °C to +80 °C
- Current carrying capacity: 1A -1.5A at 50 °C
- Connection type: Crimp
- Design: Plug
- AWG-Range (MIN): 24 … 27
- Color: Transparent
- suitable for flat cable: no
- suitable for stranded conductor: Yes
- suitable for solid conductor: no
- suitable for round cable: Yes
- shielded: no
- Category: 6
- Special tool required: Yes
- Connector type: RJ45 8(8)
- Packaging type
Bulk
- Type
AK-219602
- Product type
RJ45 connector
- Connector type
Plug, straight
- No. of pins
8P8C
CAT 6
- Connector standard
RJ45 Cat6
- AWG max.
24
- AWG (min.)
27
- Connection
Cut & Clip
- No. of rows
1
- Weight
1 g
- Content
1 pc(s)
- Contact material
Phosphorus bronze gold plated
- Material
Polycarbonate (PC)
- Width
11 mm
- Height
16 mm
- Length
20 mm
- RoHS-compliant
Yes
- Features
unshielded enclosure
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Screen size diagonal (inches)
24 inch
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246430 Digitus AK-219602 Digitus AK-219602 N/A AK-219602 Plug, straight No. of pins (RJ) 8P8C 1 pc(s) AK-219602 Plug, straight
