Digitus AK-219604-100 Digitus AK-219604-100 N/A AK-219604-100 RJ45 plug enclosure No. of pins (RJ) 8P8C Silver 100 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Connector type
RJ45 plug enclosure
No. of pins
8P8C
Specification
CAT 6A
Connector standard
RJ45
Highlights & Details

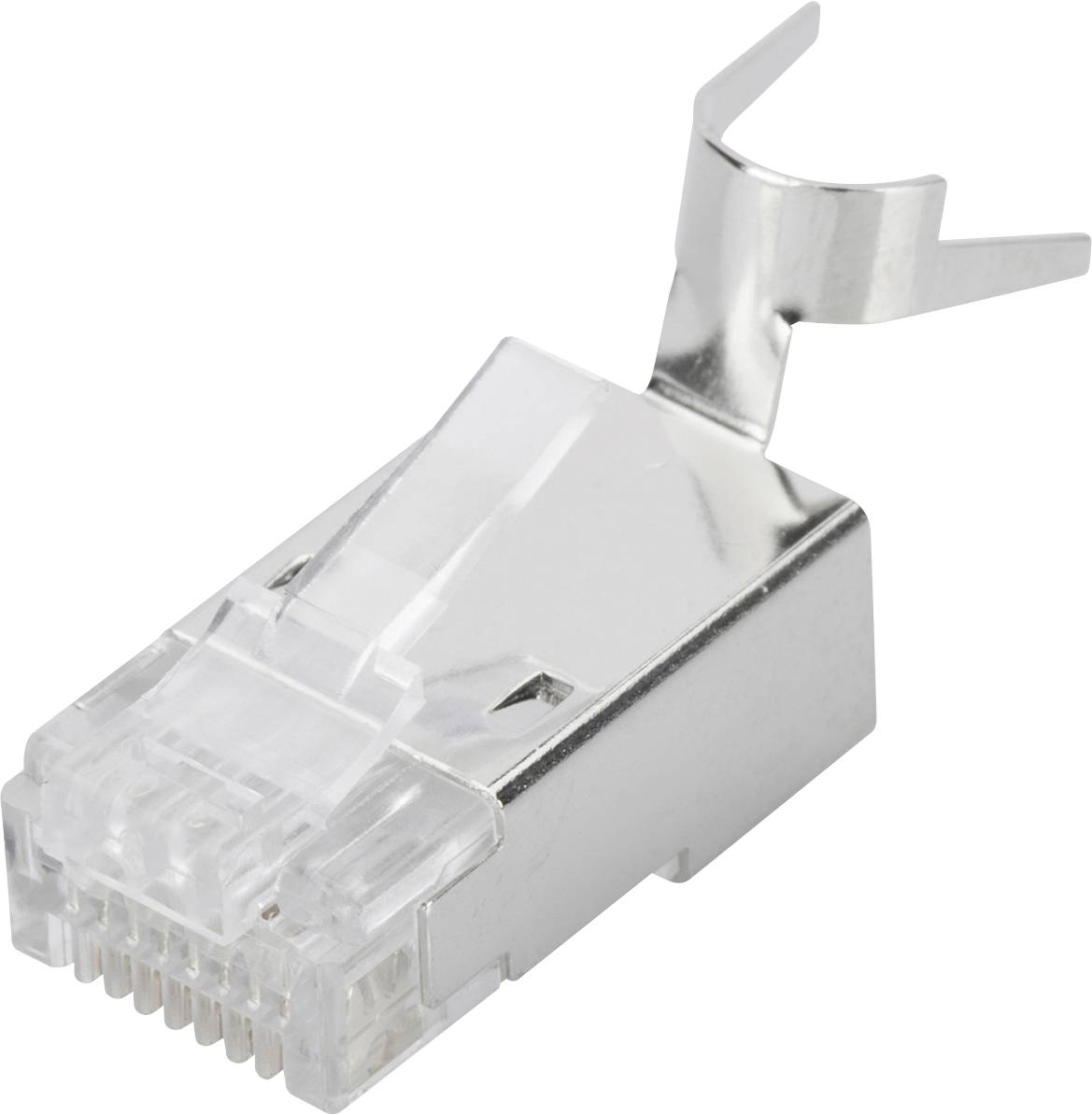

Digitus AK-219604-100 N/A AK-219604-100 RJ45 plug enclosure No. of pins (RJ) 8P8C Silver 100 pc(s)

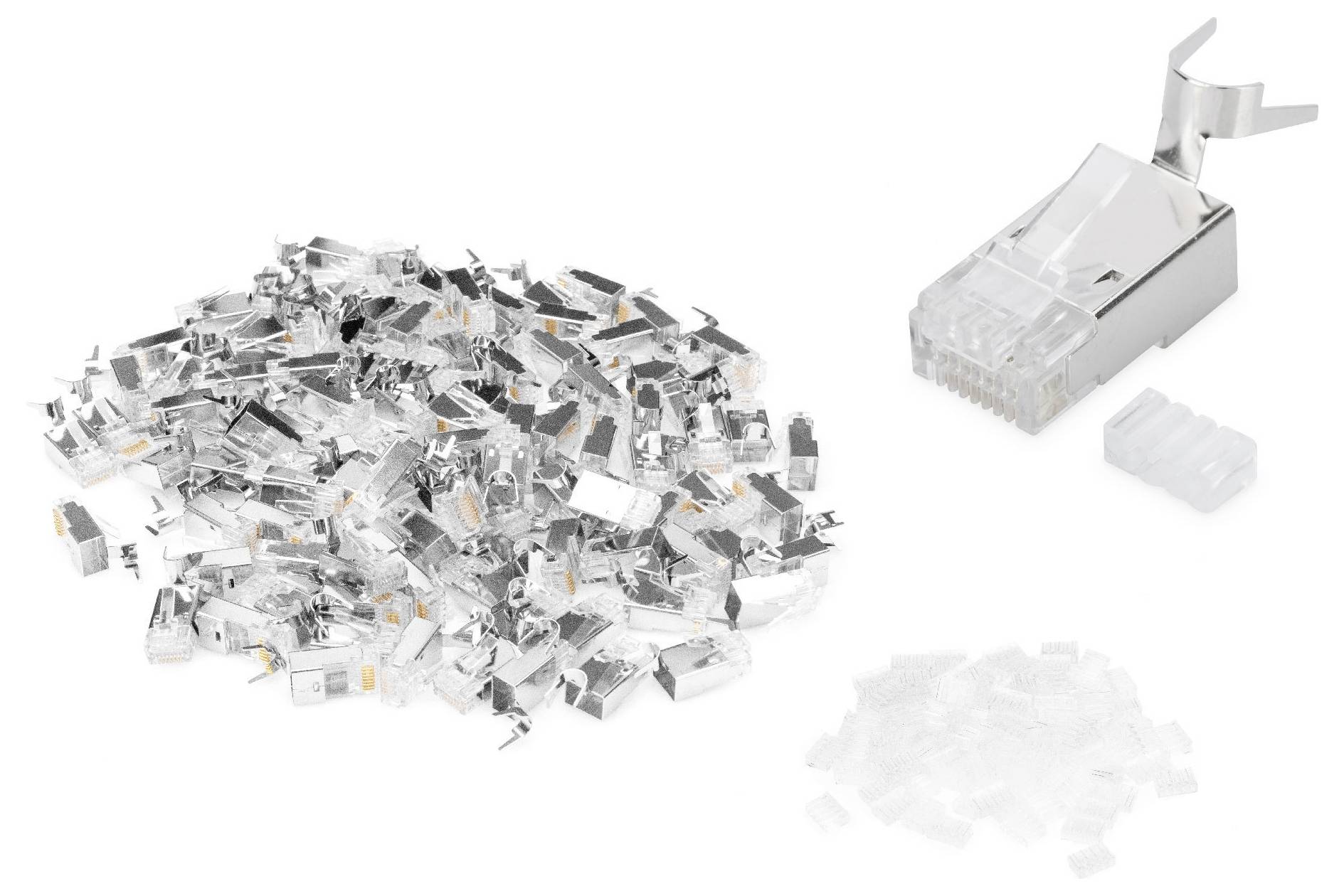

- CAT 6A modular plug, 8P8C, shielded for full wire AWG 22-23, 100 pieces
Technical specifications
- CAT 6A, 10GBase-T capability
- Plug-in cycle bush: 750 gem ISO / IEC 11801, IEC 60603-7-5
- Insertion force 30 N
- Diameter Cu conductor: AWG (23/1...22/1)
- Operating temperature: -40 to + +80 °C
- Current rating:1A – 1.5A at 50 °C.

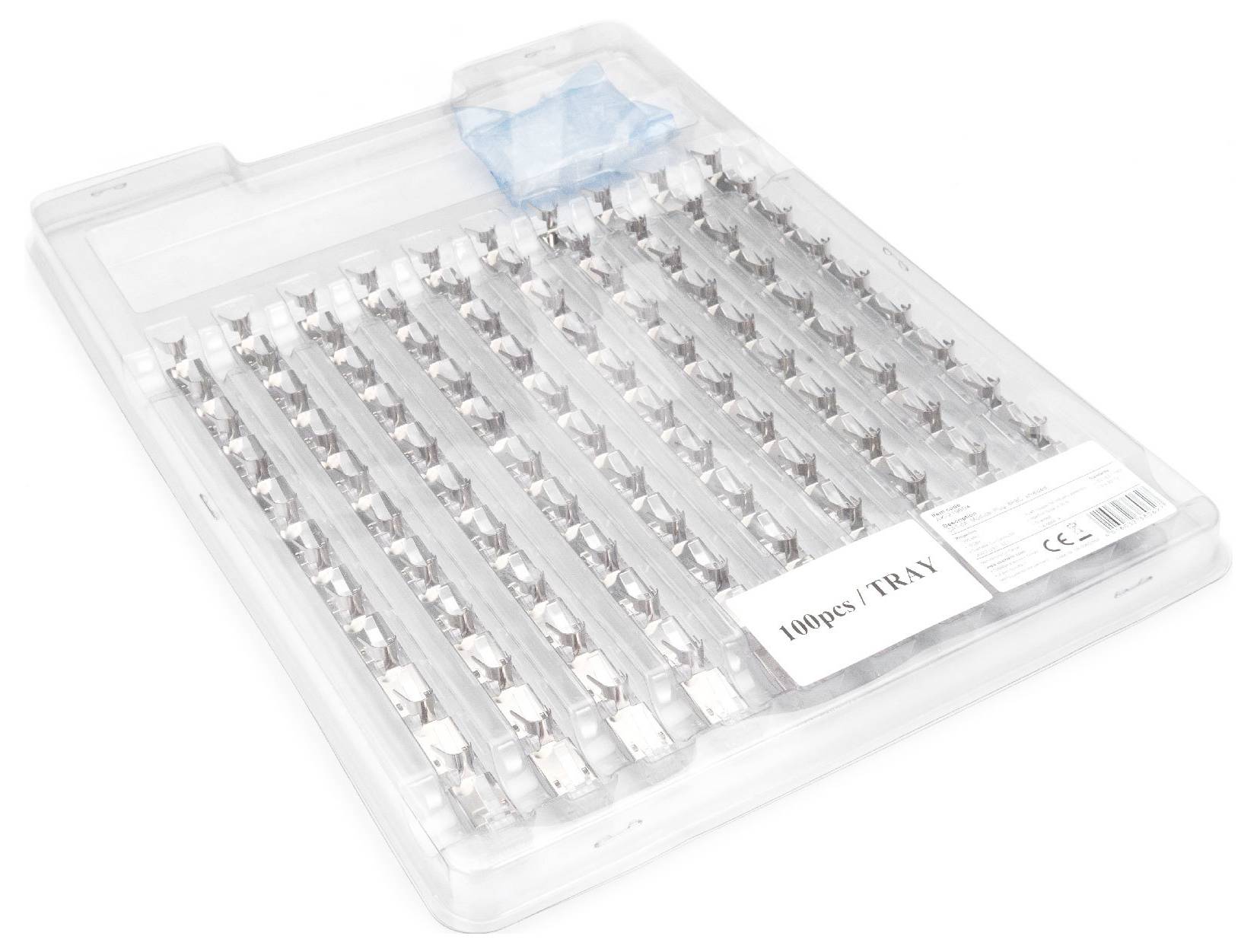

- 100 PCs
- Packaging type
Package
- Type
AK-219604-100
- Connector type
RJ45 plug enclosure
- No. of pins
8P8C
CAT 6A
- Connector standard
RJ45
- AWG max.
23
- AWG (min.)
22
- Connection
RJ45
- Type A
RJ45
- Type B
Crimping
- Factory colour
Silver
- Content
100 pc(s)
- Contact material
Phosphorus bronze gold plated
- Material
Polycarbonate (PC)
Phosphor bronze
Nickel
- Features
1x cable exit
shielded housing
Cable outlet (straight)
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3438508 Digitus AK-219604-100 Digitus AK-219604-100 N/A AK-219604-100 RJ45 plug enclosure No. of pins (RJ) 8P8C Silver 100 pc(s)
Description
These modular plugs are suitable for quick and easy self assembly.
This text is machine translated.
This text is machine translated.
Features
- Application areas: Patch cable fabrication
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties: UL-certified
- Material plug casing: Polycarbonate, natural
- Plug contact: Phosphorus bronze, nickel 0.6 μ gold plated
- Flammability: UL 94V-2
