Name: Digitus AK-340107-100-S DisplayPort / Fibreglass Cable Black 8K UHD 10.00 m
Brand: Digitus
SKU: 2350555

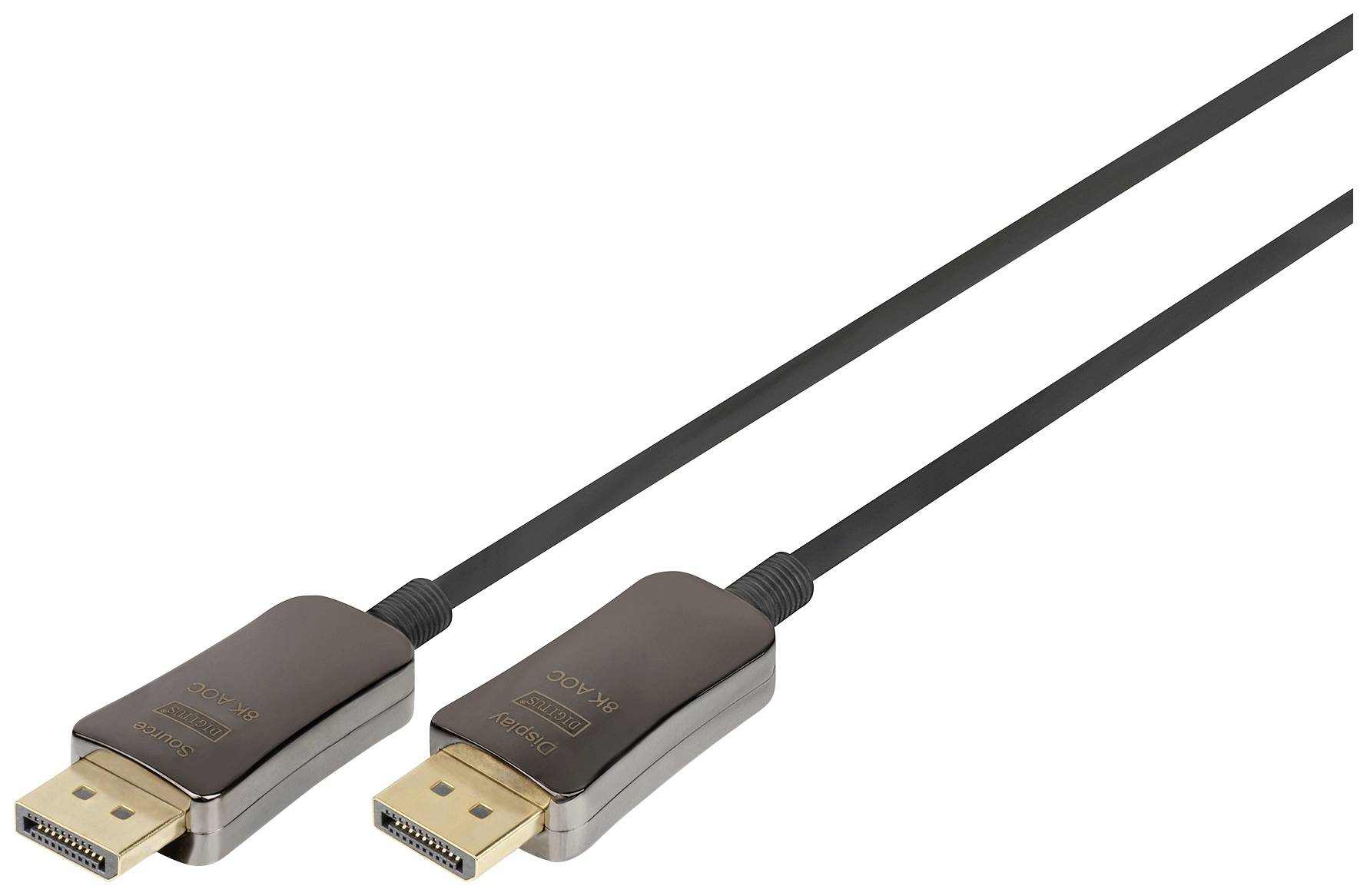

Two DisplayPort cables with plugs at both ends, designed for connecting digital audio and video signals.

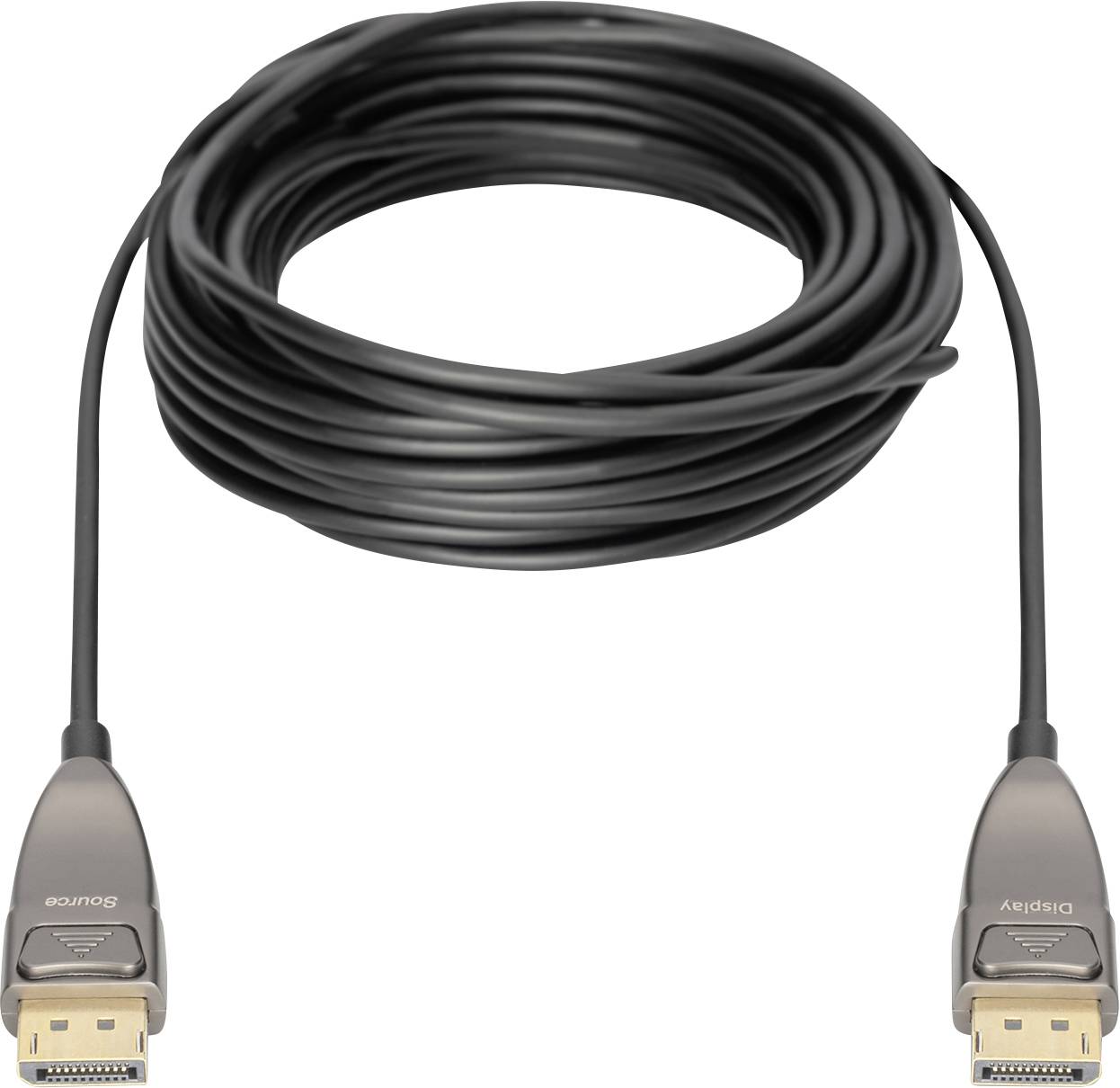

A long black DisplayPort cable with two connectors labelled 'Source' and 'Display'.

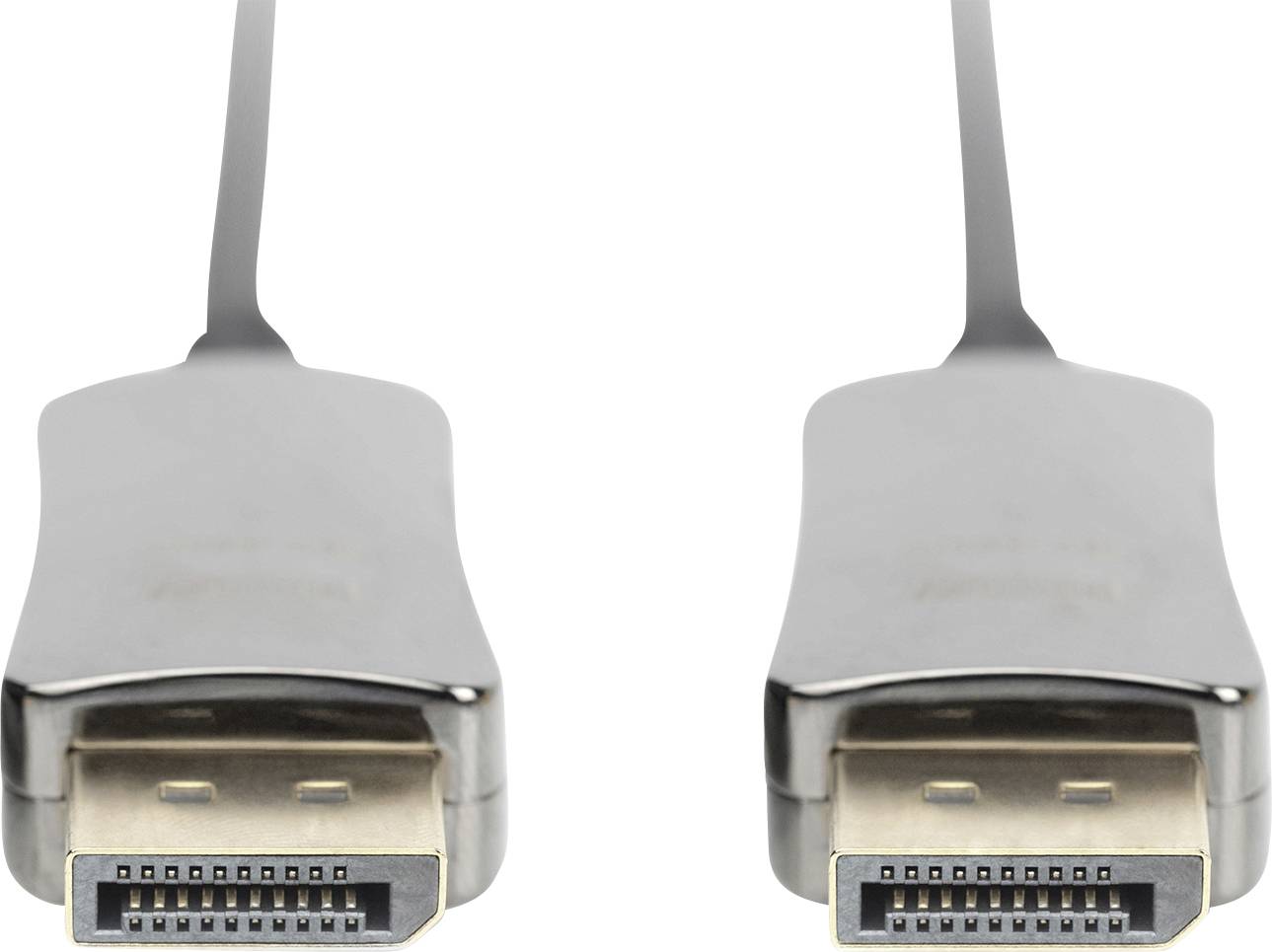

Two DisplayPort plugs side by side on a white background, showing the metal contacts.

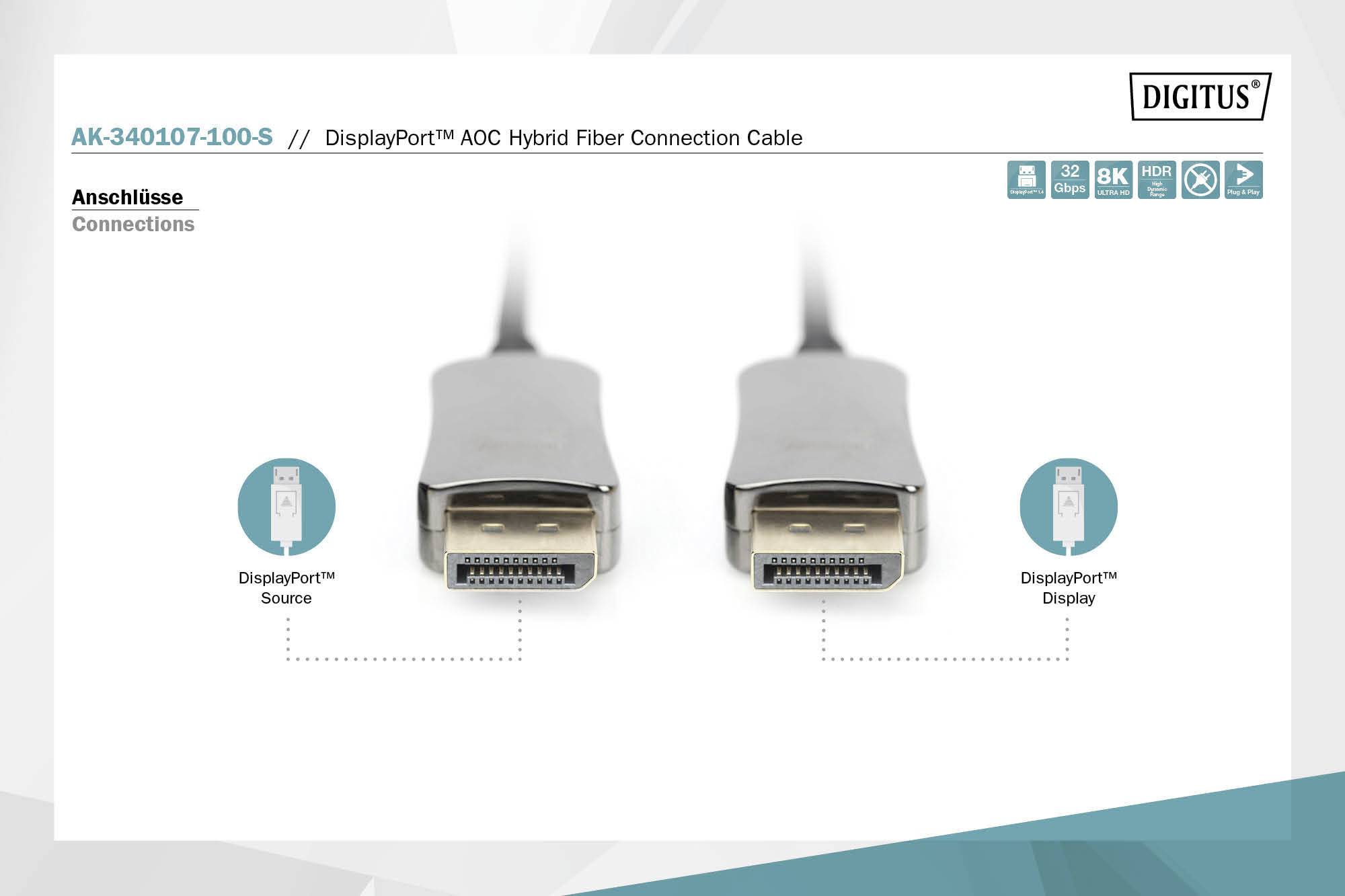

'DisplayPort AOC Hybrid Fibre Connection Cable', showing two connections: on the left as 'Source', on the right as 'Display'.

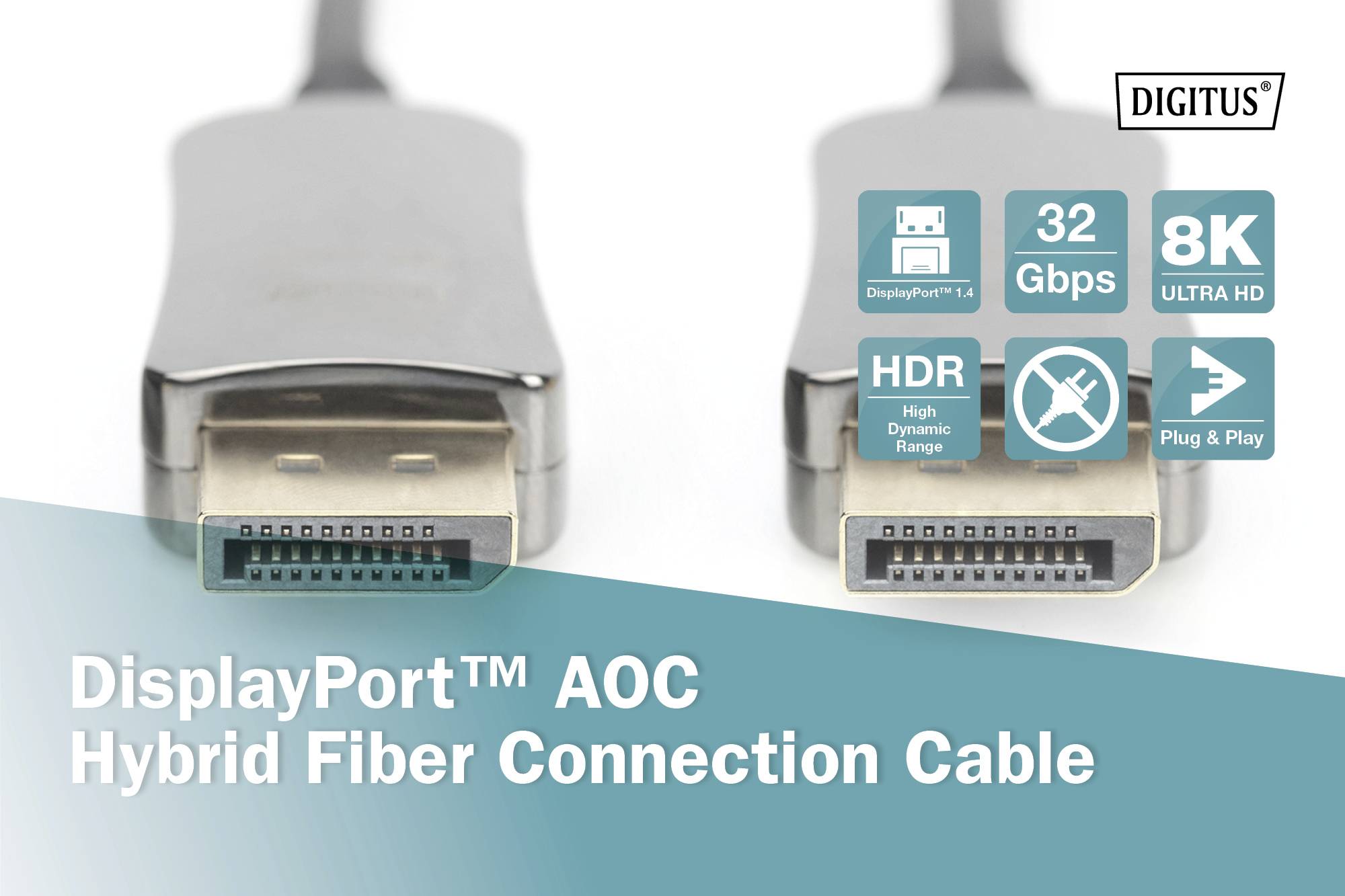

Digitus AK-340107-100-S DisplayPort / Fibreglass Cable Black 8K UHD 10.00 m-4

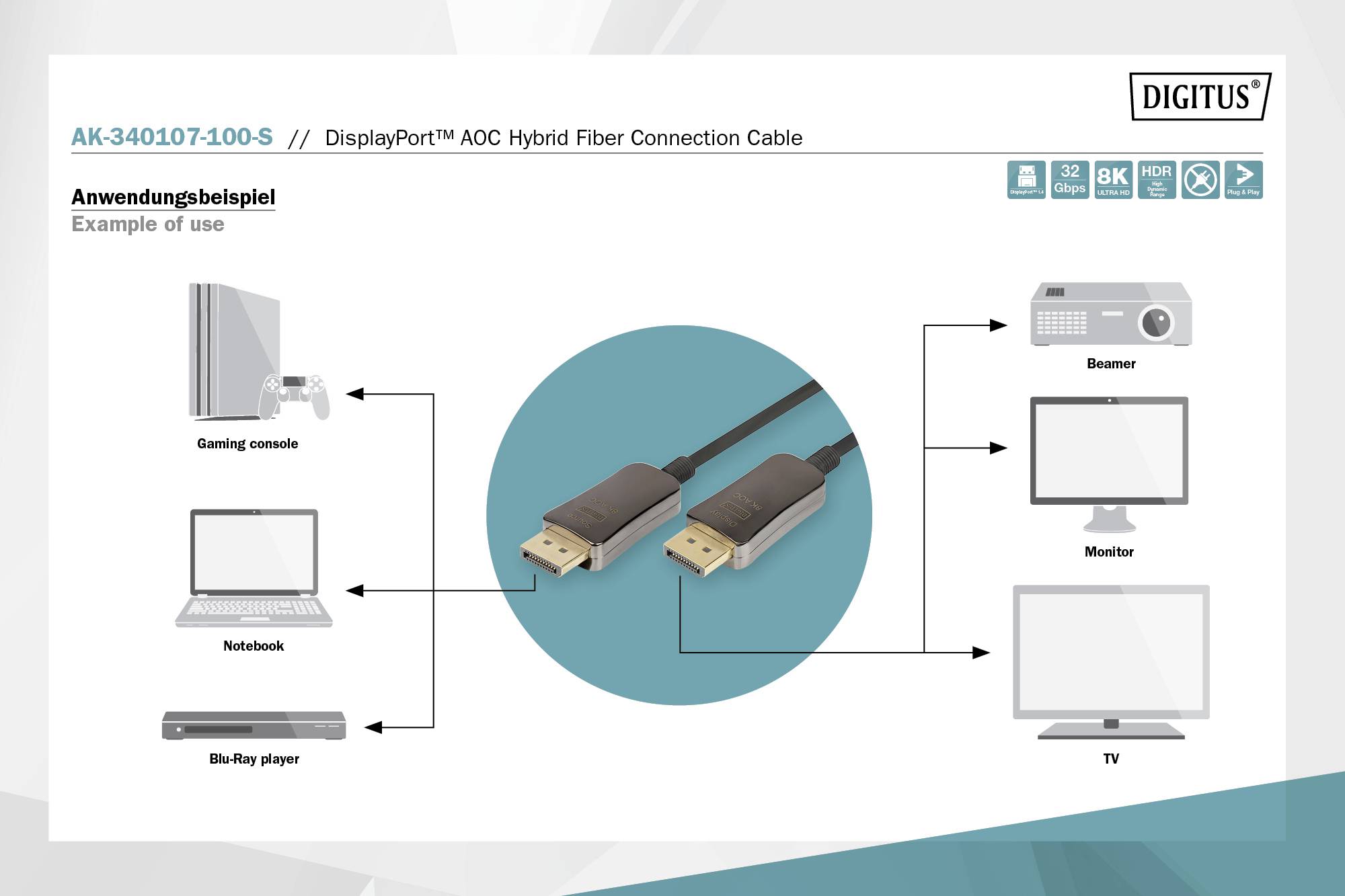

Cable connects various devices: games console, laptop, Blu-ray player with projector, monitor and TV via DisplayPort.

Two individuals are cheering in front of a television showing a football match. Text describes an AOC DisplayPort Hybrid Cable with 8K Ultra HD and HDR.

1/7

Product type

DisplayPort cable

Connection type

DisplayPort

Fibreglass

Version

Cable

Connection type

DisplayPort to DisplayPort

Connections

DisplayPort plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DisplayPort AOC Hybrid fiber cable M/M, 10m, UHD 8K@60Hz, CE, gold, bl

Active fiber transmission with up to 32.4 Gbps - zero latency
Resolutions up to 8K@60Hz
Transmits uncompressed HDMI® video and audio signals over a distance of 10 m
Flexible to lay with very narrow bending radius of 25.4 mm
Compact cable with small diameter (OD 4.8 mm)
Insensitive to electromagnetic interference (EMI)
Supports HDR (High Dynamic Range)
SUPPORTS HDCP 2.2 / EDID / CEC
Hybrid construction of fiber optic and copper wires with gold-plated contacts
Loss-free signal transmission at high transmission speed

Technical specifications

AWG 24/28
Locking: Snap-on fastening
Contact surface: Gold-plated
Color cable: Black
Hood: Metallized housing
Track 1: ALP connector
Track 2: ALP connector
DisplayPort standard: DisplayPort 1.4
HDTV standard: Ultra HD 8K
Shielding: Simple shielding
USB-C products: false
AOC - Active Optical Cable: true
Resolution 7680 x 4320p / 60 Hz (UHD-2)
Subsampling: YUV 4:4:4
HDCP version: 2.2
DisplayPort™ Version: 1.4
Supported color depth: 16 bit Deep Color
Latency: Zero frame delay
Bending radius 25.4 mm
OM version: OM3
Operating temperature: -20 – 70°C
Operating humidity: 10 - 75% RH
Power consumption: 360 mW max.

Product type: DisplayPort cable

Connection type: DisplayPort
Fibreglass

Version: Cable

Connection type: DisplayPort to DisplayPort

Connections: DisplayPort plug
DisplayPort plug

Connector version: straight

Video resolution: 7680 x 4320 Pixel

Cable length: 10.00 m

Factory colour: Black

Cable features: 8K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: FO

: 24/28

Shielding: Full shielding

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2350555 Digitus AK-340107-100-S DisplayPort / Fibreglass Cable Black 8K UHD 10.00 m

Description

This active DisplayPort™ AOC Hybrid fiber cable is ideal for transferring high-bandwidth uncompressed video and audio over longer distances. The hybrid design of copper and fiber optic cables eliminates electromagnetic influences, ensuring lossless transmission over the entire cable length with UHD resolutions of up to 8K/60Hz and bandwidths of up to 32.4 Gbps. The use of optical conductors (glass fiber) makes the diameter of this active cable very small and is characterized by very small bending radii as well as a low net weight. The ideal application for home, meeting or conference rooms as well as inside buildings represent only a few of the areas of application. The user-friendly installation is done here by simple Plug and Play, plug in and enjoy the highest picture quality immediately. Numerous standards are supported, such as DisplayPort 1.4, HDCP 2.2 or HDR. In the audio field DTS-HD master audio or Dolby TrueHD as well as many other features are supported. The use of the latest chip technology enables the transmission of the full DisplayPort™ signal spectrum and thereby supports CED, EDID with very low latency and uncompressed.

This text is machine translated.
