Digitus AN-25178 Floorbox bracket double Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

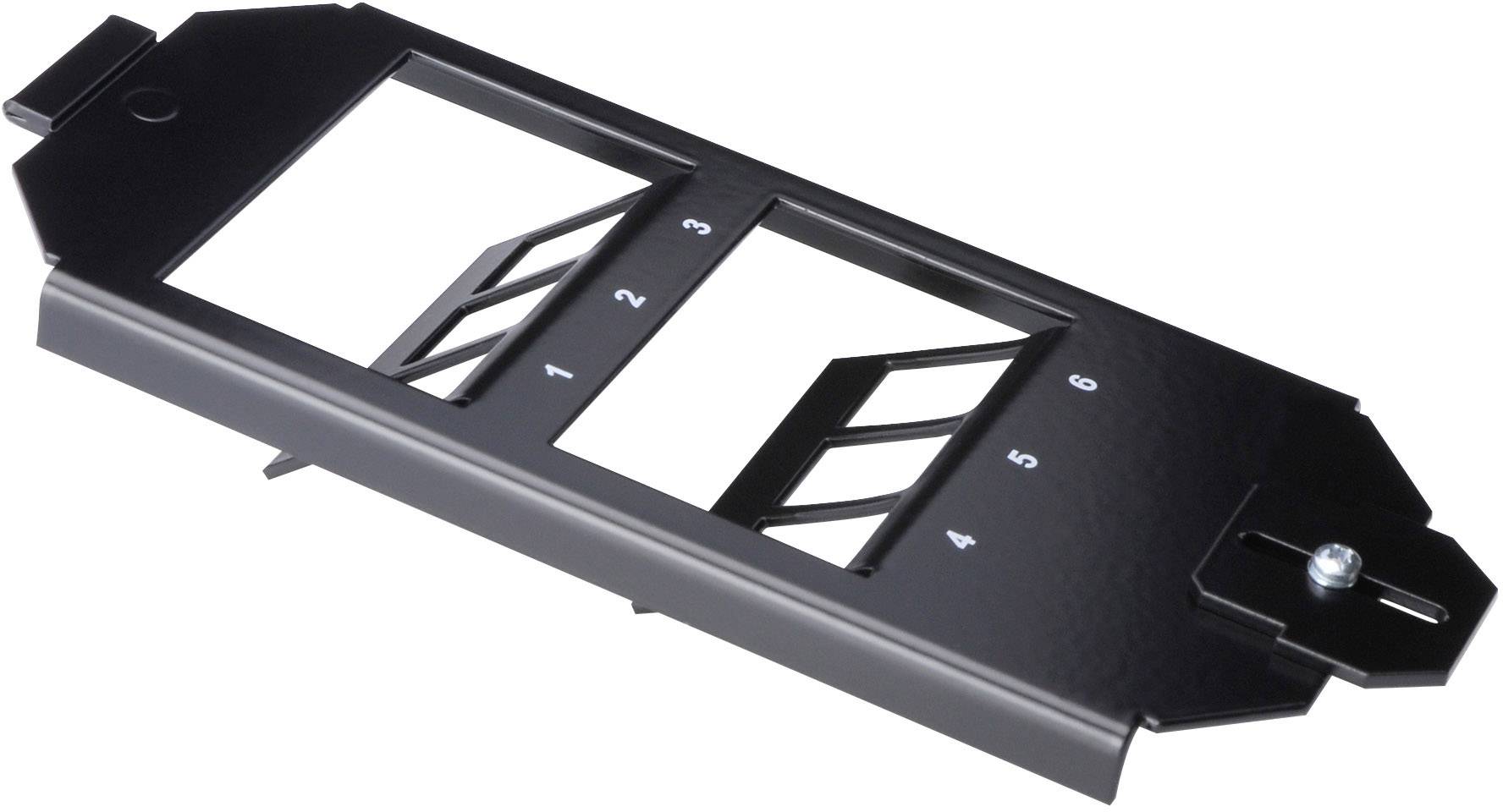

2-way floor tank holder for 6x Keystone module, suitable for OBO-Ackermann GES6
- Floor anchor holder suitable for installation in Ackermann floor tank (OBO Bettermann underfloor systems)
- Plug-in direction of the module inclined 45° vertically
Technical specifications
- Keystone mounting design: 45° outlet
- Application areas: Floor tank
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.
- SUITABLE FOR GES 2, GES 4, GES 4/10, GSR 4, GES 6, GES 6/10, GSR 8/10
- Material empty housing: Die-cast metal
- Physical properties:
- OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Product type
Floorbox bracket
- Number
double
- Mounting type
Floorbox
- Cable feed
vertical
- Content
1 pc(s)
- Factory colour
Multicolour
- Port
6 ports
Unequipped
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1934448 Digitus AN-25178 Floorbox bracket double Multicolour
User & Safety Instructions
User & Safety Instructions 1934448 Digitus AN-25178 Floorbox bracket double Multicolour
Description
The DIGITUS® floor anchors are suitable for recording DIGITUS® Keystone modules. They are available in the 2-way version for 6x Keystone module or in the 3-way version for 9x Keystone module
