Digitus AN-25179 Floorbox bracket triple Black
EAN:
Part number:
Item no:
Highlights & Details

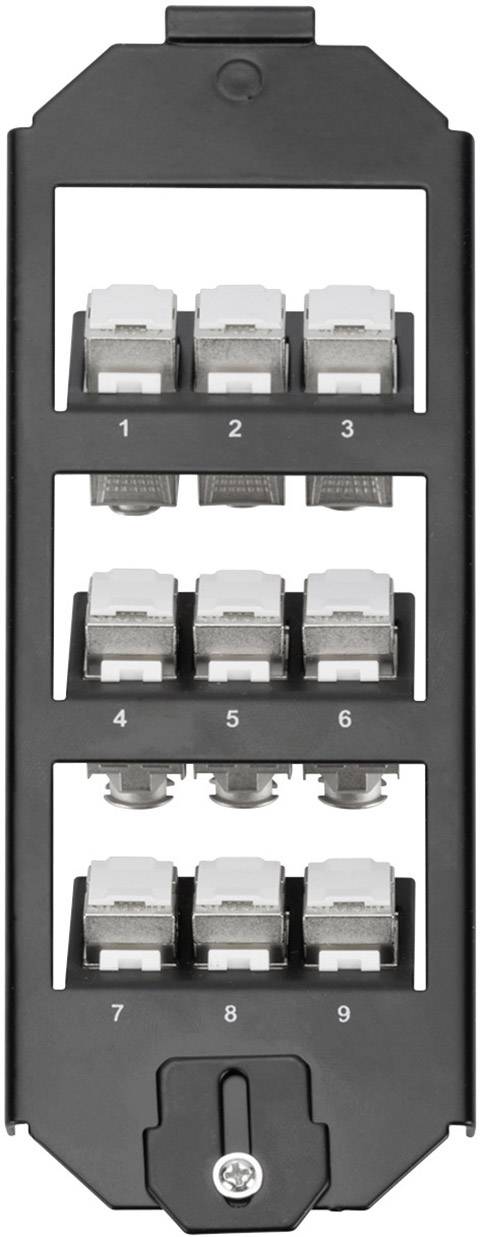

Frame set, 3-level for 9 x Keystone Modules
- For the admission of DIGITUS ® Keystone Modules
- 3-way variant
- For 9 x Keystone module
Technical specifications
- Product type
Floorbox bracket
- Number
triple
- Mounting type
Floorbox
- Cable feed
reverse
- Content
1 pc(s)
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1345759 Digitus AN-25179 Floorbox bracket triple Black
Description
The DIGITUS® Frame sets function as adapter for the installation of Keystone Modules. They are available as 2-level version for 6x Keystone Modules or as 3-level version for 9x Keystone Modules.
· Layout keystone entry: 45° outlet
· Area of application: Floor box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for GES 2, GES 4, GES 4/10, GESR 4, GES 6, GES 6/10, GESR 8/10
· Frame suitable for installation in Ackermann floor box (OBO Bettermann underfloor systems)
· Plug direction of module 45° vertical
· Technical properties:
· Housing material: Metal
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Layout keystone entry: 45° outlet
· Area of application: Floor box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for GES 2, GES 4, GES 4/10, GESR 4, GES 6, GES 6/10, GESR 8/10
· Frame suitable for installation in Ackermann floor box (OBO Bettermann underfloor systems)
· Plug direction of module 45° vertical
· Technical properties:
· Housing material: Metal
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Features
- 3-way
- For 9 x Keystone module
