Digitus AV Converter DA-70473 [VGA - HDMI] 1920 x 1080 Pixel
EAN:
Part number:
Item no:

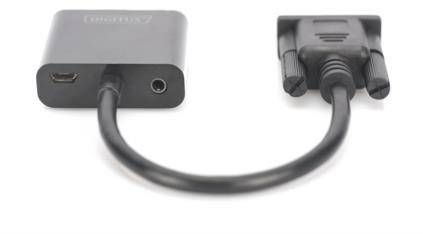

Active VGA to HDMI converter - optional audio transmission (3.5 mm jack) - Power supply via USB Full HD (1080p), 15 cm cable length, black
Highlights & Details
- Converts Video- and audio signals from VGA to HDMI
- Connect older devices with VGA port, for example, TV, monitor or projector
- Additional audio transmission (3.5 mm jack)
- Power supply via USB
- No software or driver installation required
Technical specifications
- Product type
AV Converter
- Connection type
VGA
- No. of A connectors
1 x
- Type A
VGA plug
- No. of B connections
1 x
- Type B
HDMI socket
- Video resolution
1920 x 1080 Pixel
- Cable length
15.00 cm
- Factory colour
Black
- Connector version
straight
- Version
Converter
- Cable use
AV
- Signal flow direction
Unidirectional (uni)
- Weight
50 g
- Length
4.5 cm
- Width
4.5 cm
- Height
1.5 cm
- Dim
(L x W x H) 4.5 x 4.5 x 1.5 cm
- Range of use
General
Home beamer
Home cinema/HD beamer
Fixed projector
Portable projector
Monitors/TV adapters
Laptop
Office projector
PC
Classroom projector
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681533 Digitus AV Converter DA-70473 [VGA - HDMI] 1920 x 1080 Pixel
Conformity certificate
Conformity certificate 1681533 Digitus AV Converter DA-70473 [VGA - HDMI] 1920 x 1080 Pixel
Description

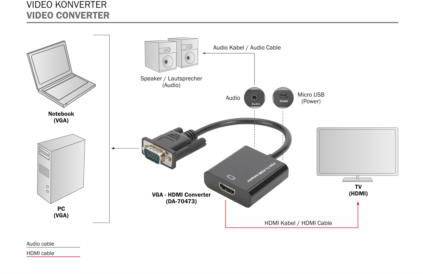

The DIGITUS VGA to HDMI converter converts your analogue VGA signal to a digital HDMI signal. The conversion, the connection of devices which only have a VGA connection, to an HDMI monitor, TV or projector is easily possible. Since the VGA input only can play back a video signal, the converter with an additional 3.5 mm audio socket. A possibly existing stereo signal is parallel converted and integrated into the HDMI signal. This allows the audio signals via HMDI e.g. on your TV.
This text is machine translated.
This text is machine translated.
Features
- Converts Video- and audio signals from VGA to HDMI
- Connect older devices with VGA port, for example, TV, monitor or projector
- Additional audio transmission (3.5 mm jack)
- Power supply via USB
- No software or driver installation required
- Max. Resolution: Full HD 1920 x 1080p/60 Hz
- Input: VGA + Stereo Audio
- Output: HDMI
- Cable length: 15 cm.
- HDMI transfer rate: 6.75 Gbit/s
- Bandwidth 225 MHz/1.65 Gbps per channel (6.75 Total)
- With the converter usable resolutions are dependent on your device/your graphics card

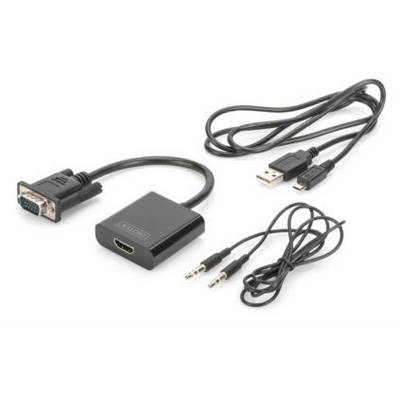

Scope of delivery
- VGA to HDMI converter
- Audio cable (3.5 mm), 1.0 m
- Micro USB cable, 1.0 m
