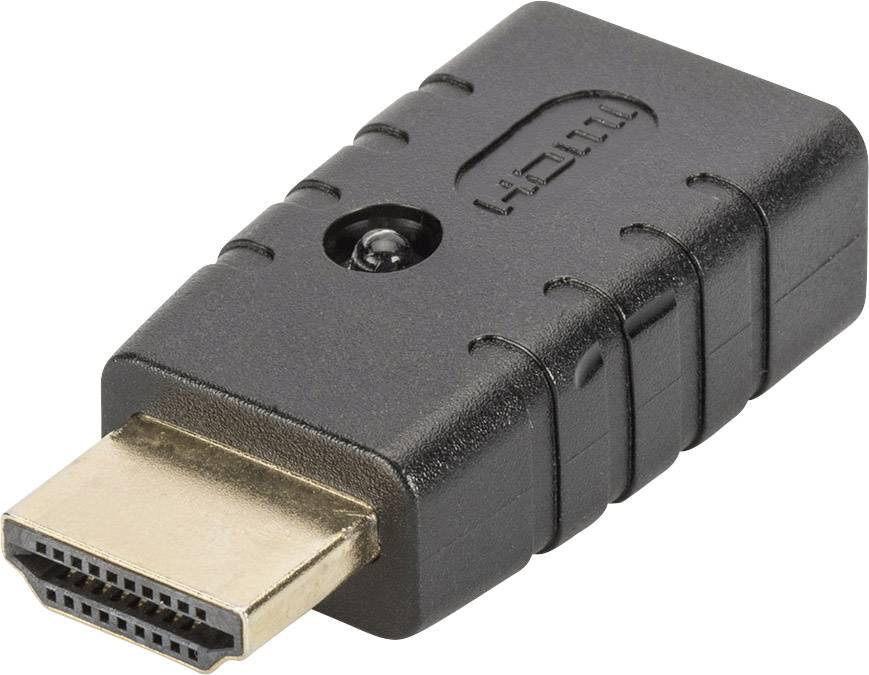

Digitus DA-70466 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD
EAN:
Part number:
Item no:
Highlights & Details
Digitus DA-70466 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD
- Emulates HDMI EDID (Extended Display Identification Data) Information
- Triggers possible transmission problems in communicating devices (monitor, signal source), for example in the case of different resolutions, formats, etc.
- Has preset EDID data (resolutions/timings)
Technical specifications

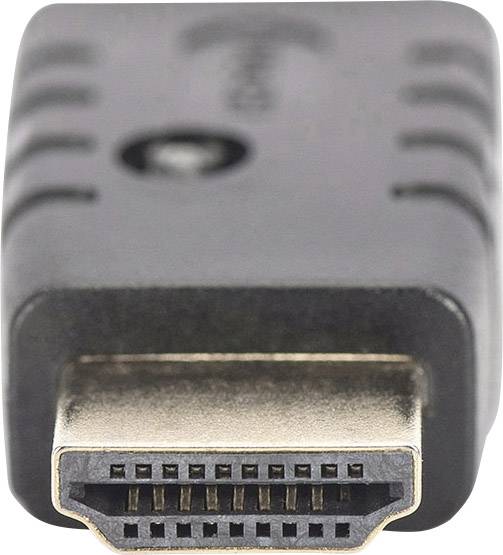

- 1x HDMI input, HDMI-plug for connection to the signal source

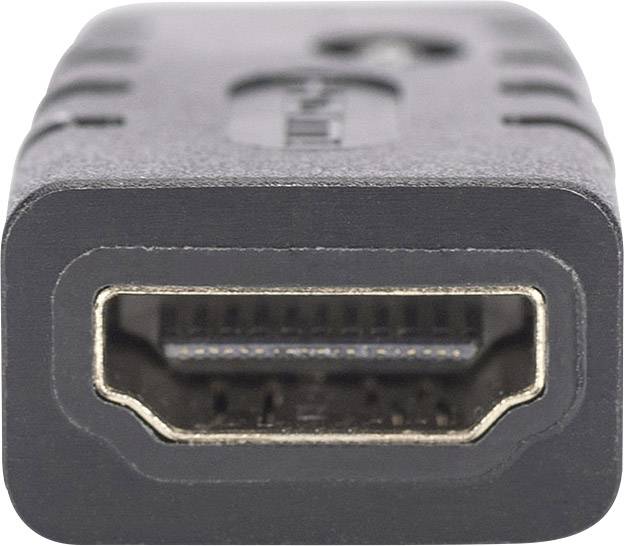

- 1x HDMI output: HDMI connector for connecting the HDMI cable
- Product type
TV/monitor EDID emulator
- Connection type
HDMI
- No. of A connectors
1 x
- Type A
HDMI plug
- No. of B connections
1 x
- Type B
HDMI socket
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
- Cable features
4K UHD
- Cable use
TV/monitor
- Version
EDID emulator
- Range of use
Home beamer
Home cinema/HD beamer
Fixed projector
Portable projector
Monitors/TV adapters
Laptop
PC
Pico projector
Classroom projector
- Signal flow direction
Unidirectional (uni)
- Height
20 mm
- Length
13 mm
- Width
44 mm
- Port
1 port
- Weight
15 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681530 Digitus DA-70466 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD
Description
The Digitus 4K HDMI EDID emulator emulates a connected HDMI monitor continuously, so that the signal source even in connection interruptions your signal does not change or switches off. It has preset EDID data (resolutions/timings), this can be found in the operating instructions. If EDID data of an individual monitor/display is missing, they can be quickly and easily with the practical clone function can be read and be cloned. The emulator supports resolutions up UHD 4K2K/60 Hz. The emulator offers the ideal solution in applications with HDMI extenders, fragments, Schwitchen or converters.
This text is machine translated.
This text is machine translated.
Features
- Clone function - enables the reading and cloning of the EDID data of the connected TV/monitor/screen
- Supports resolutions up to UHD 4K2K/60 Hz
- HDCP transmission
- Supports HDCP 2.2 / 1.4
- Supports VESA and CEA specifications
- LED activation indicator
- Requires no external power supply
Scope of delivery
- 4K HDMI EDID Emulator
- User manual
