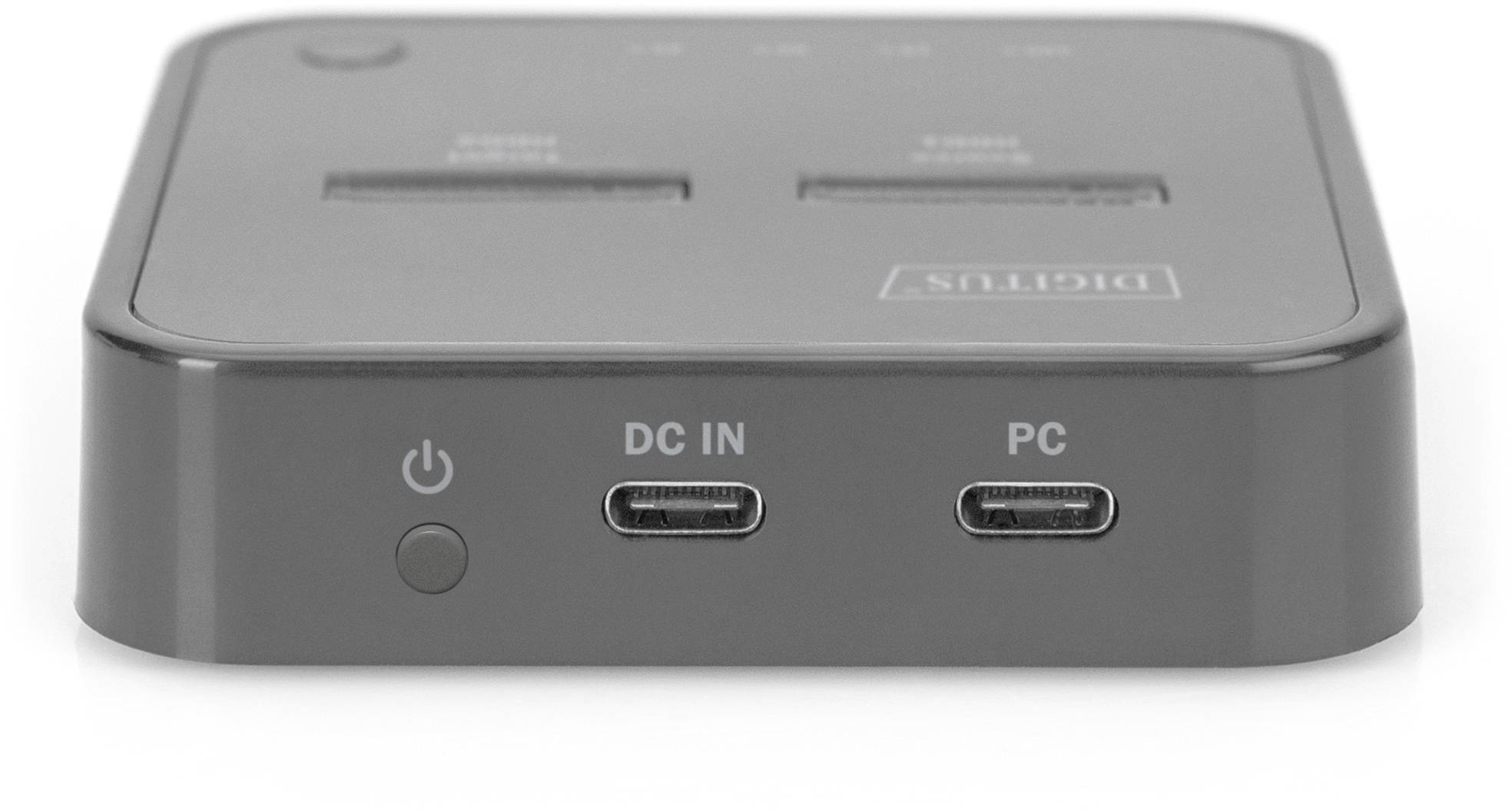

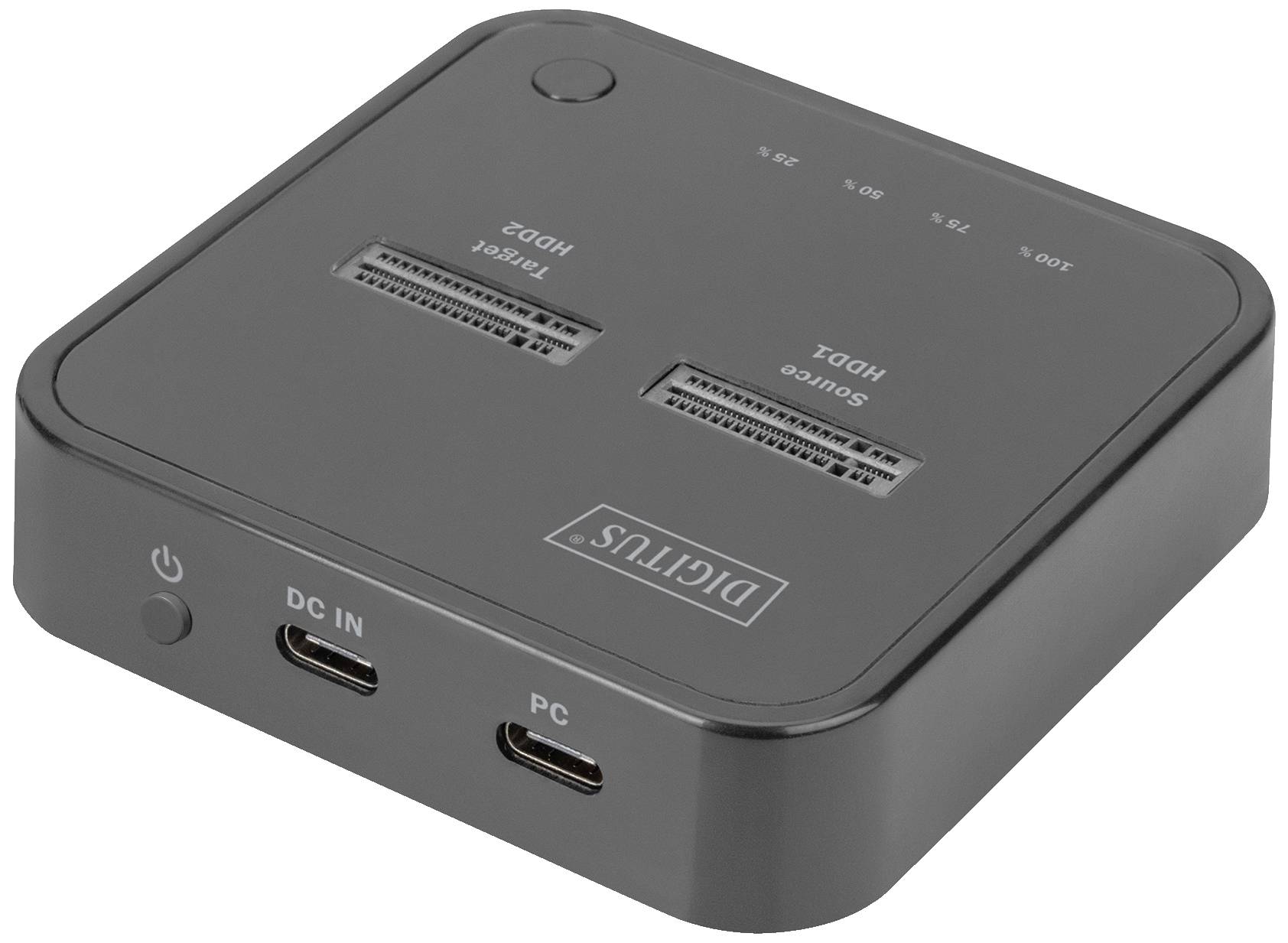

A grey USB hub with two USB-C ports, a power button, and markings reading 'DC IN' and 'PC' on the front.

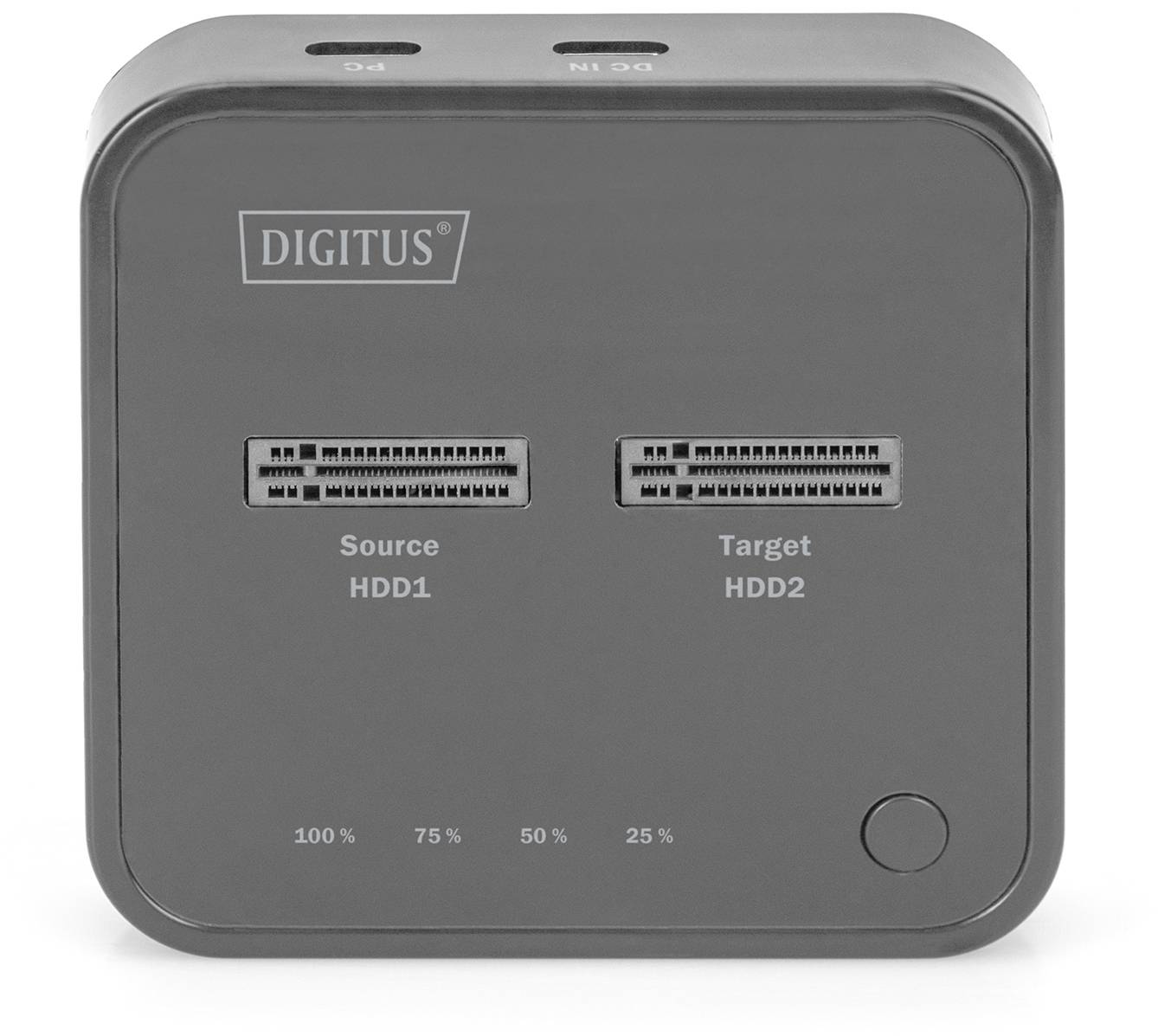

A black hard drive dock with two ports, labelled as 'Source HDD1' and 'Target HDD2', displays a percentage scale: 25% to 100%.

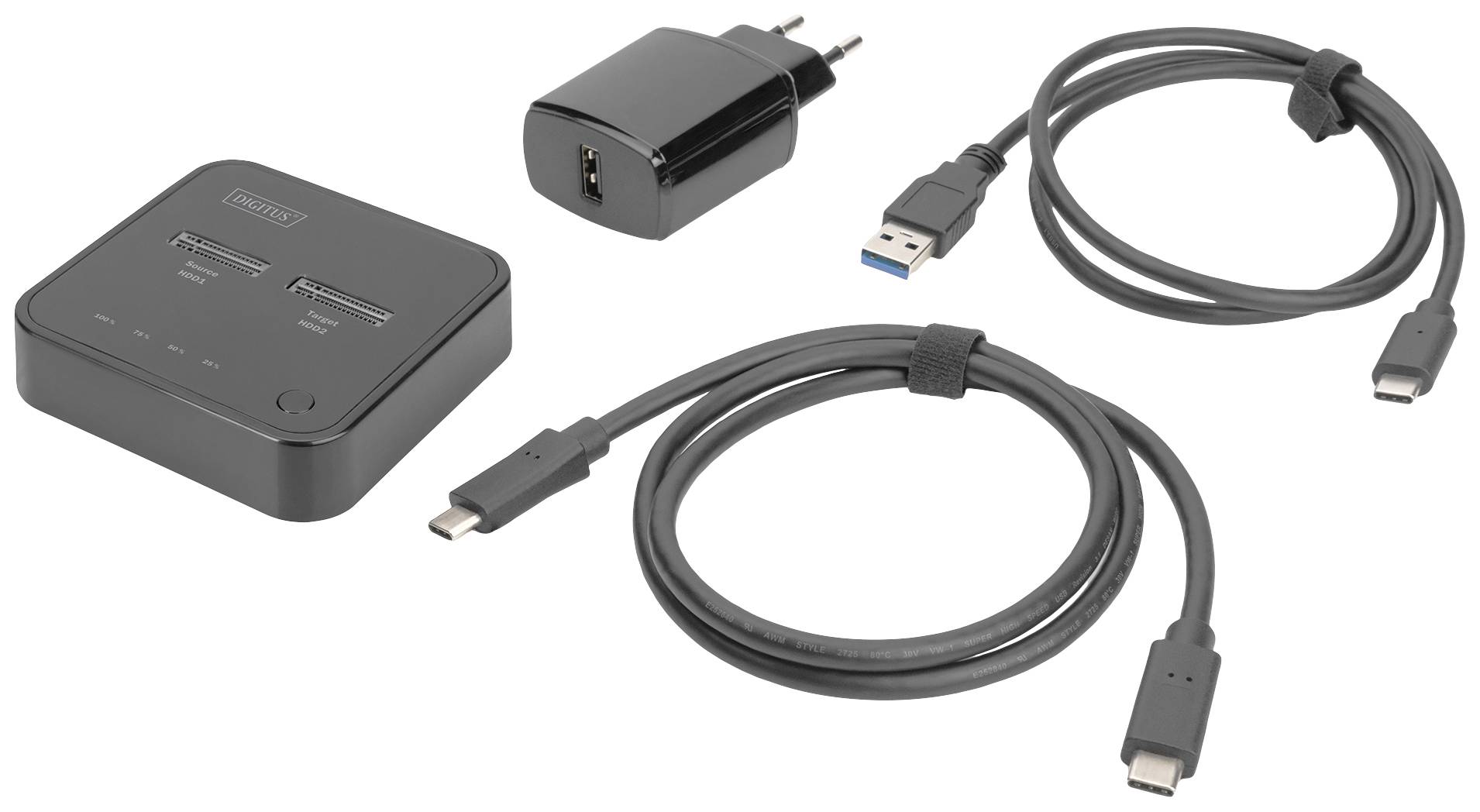

Pictured are a charger, two USB cables and an electronic device with ports and buttons, all in black.

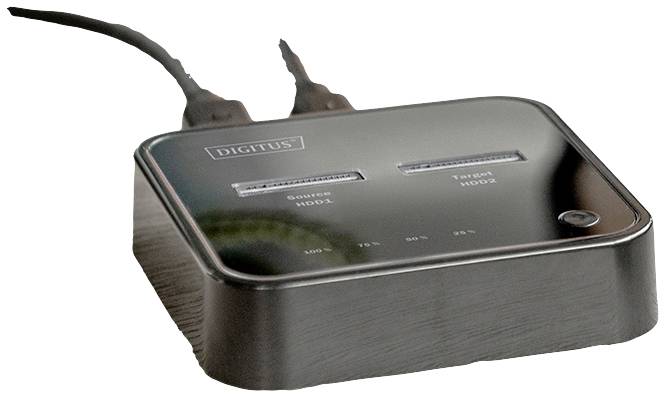

External hard drive docking station with two bays, labelled as 'Source HDD1' and 'Target HDD2', with status indicators and connected cables.

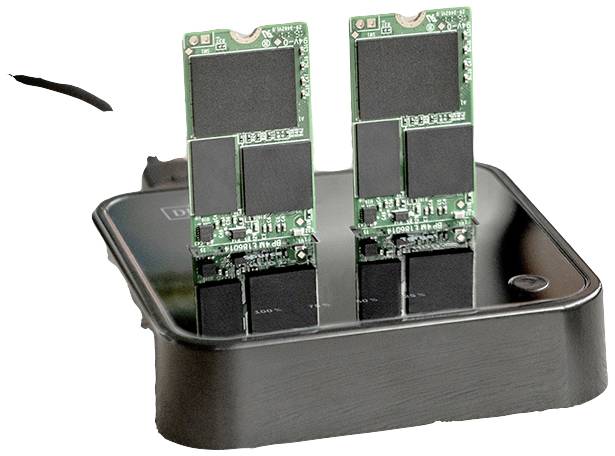

Two green circuit boards with chips are inserted in a black electronic device that can be used for testing or storage.

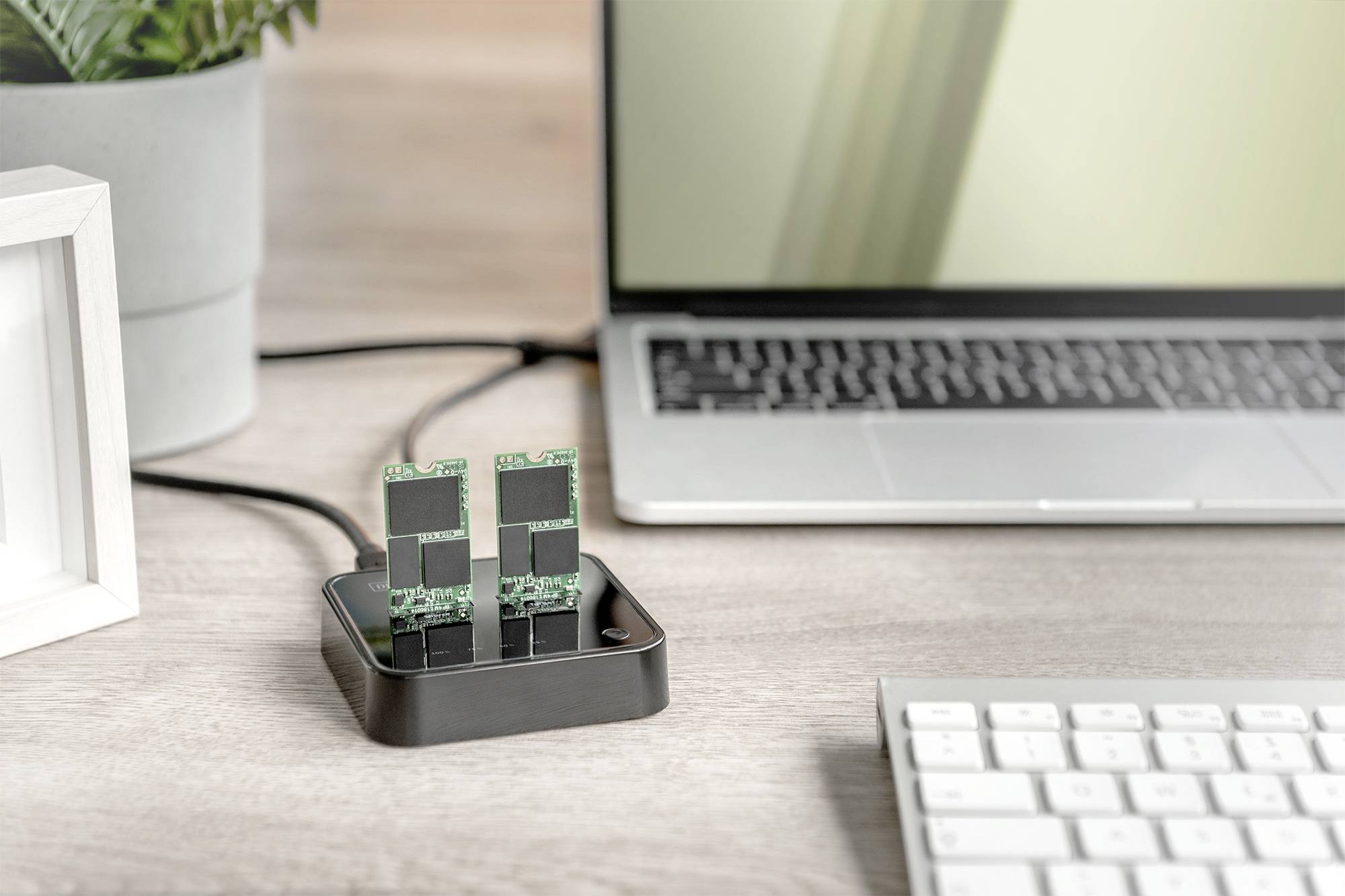

Two USB sticks are plugged into a USB hub, which is sitting on a desk next to a laptop, a keyboard and a plant.

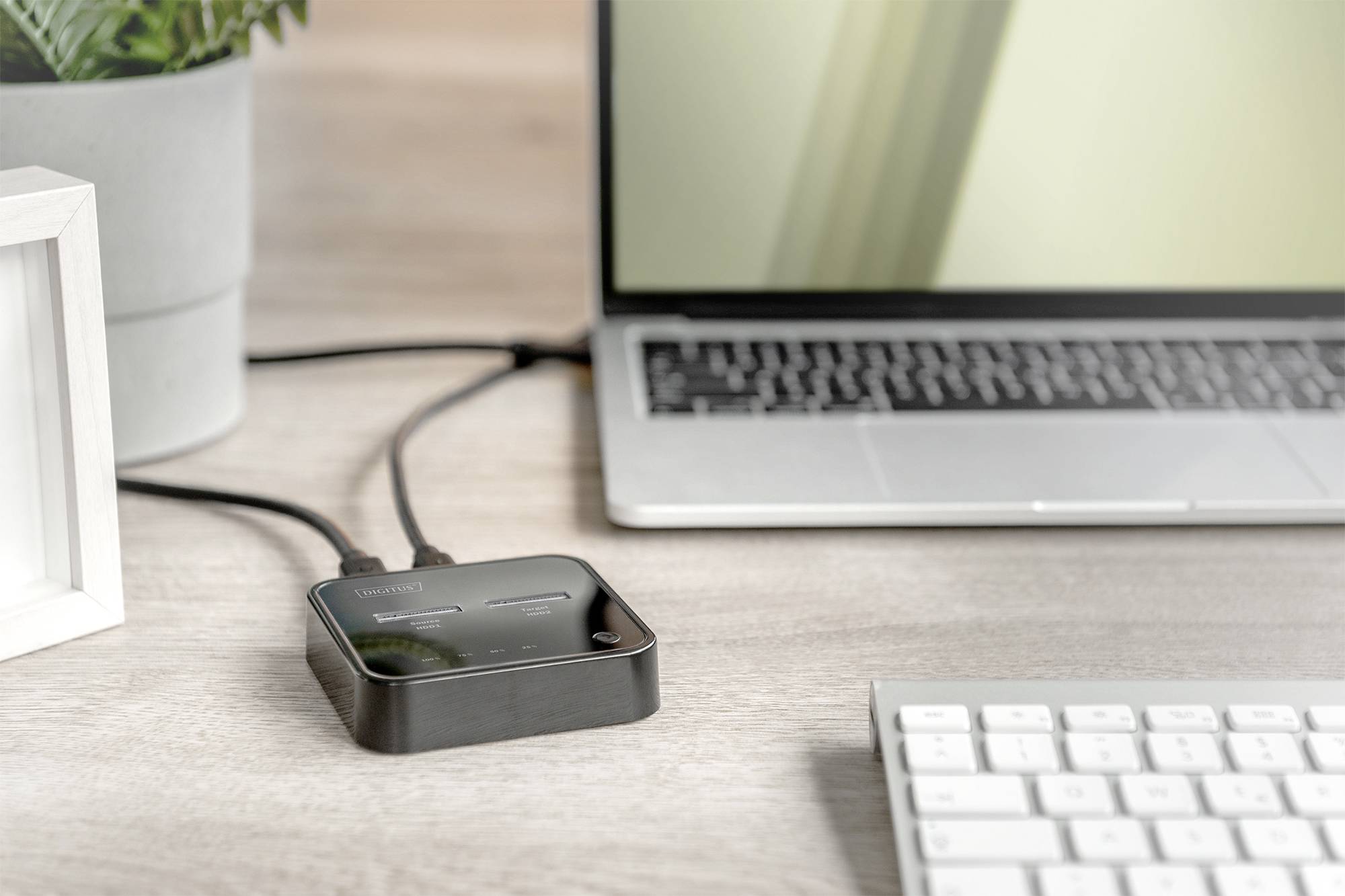

A laptop is connected to a small black hub via a USB cable, which is sitting on a table next to a keyboard.

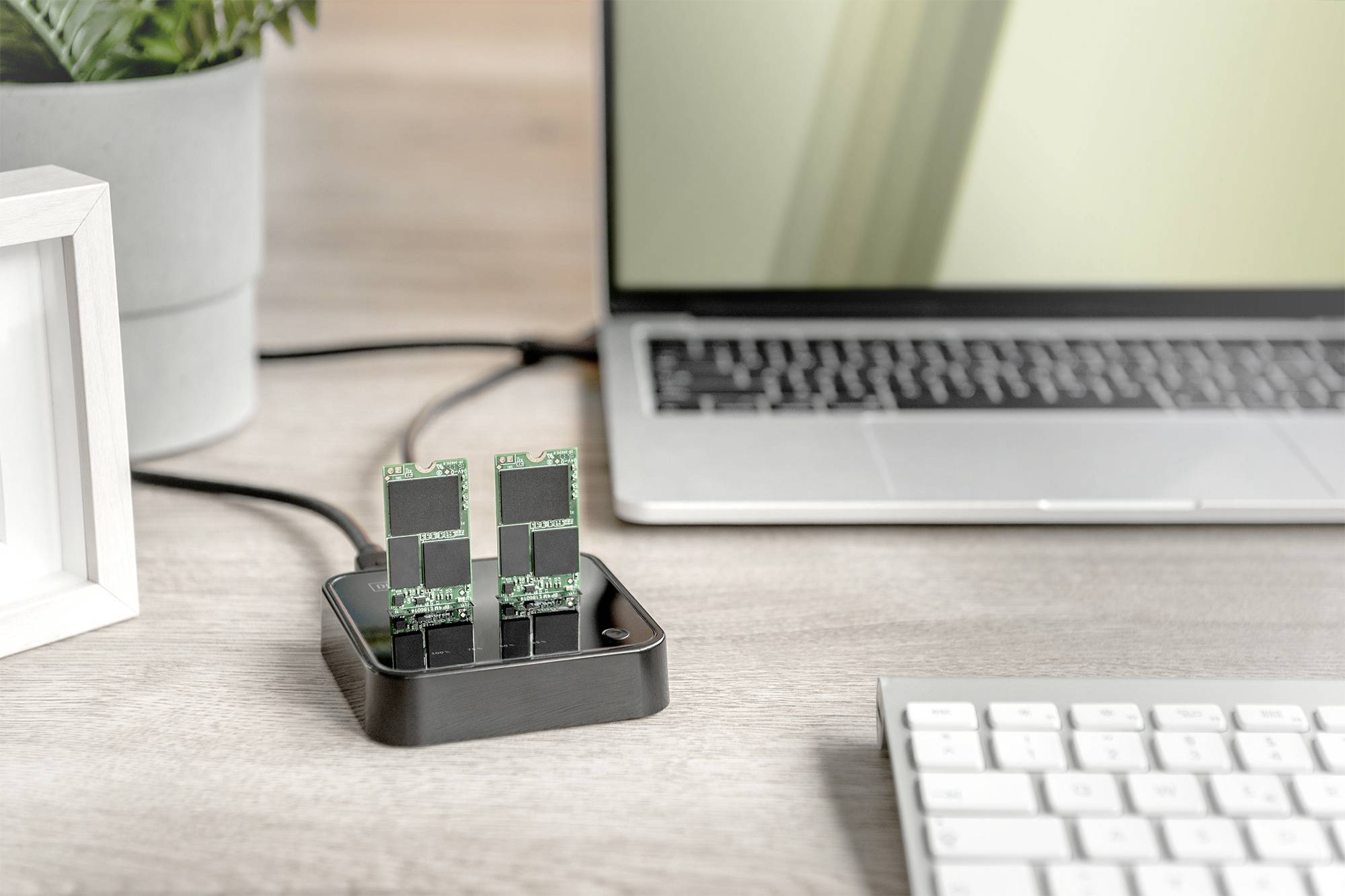

A laptop on a desk, next to a device with two memory modules plugged in. A keyboard and a plant are also visible.

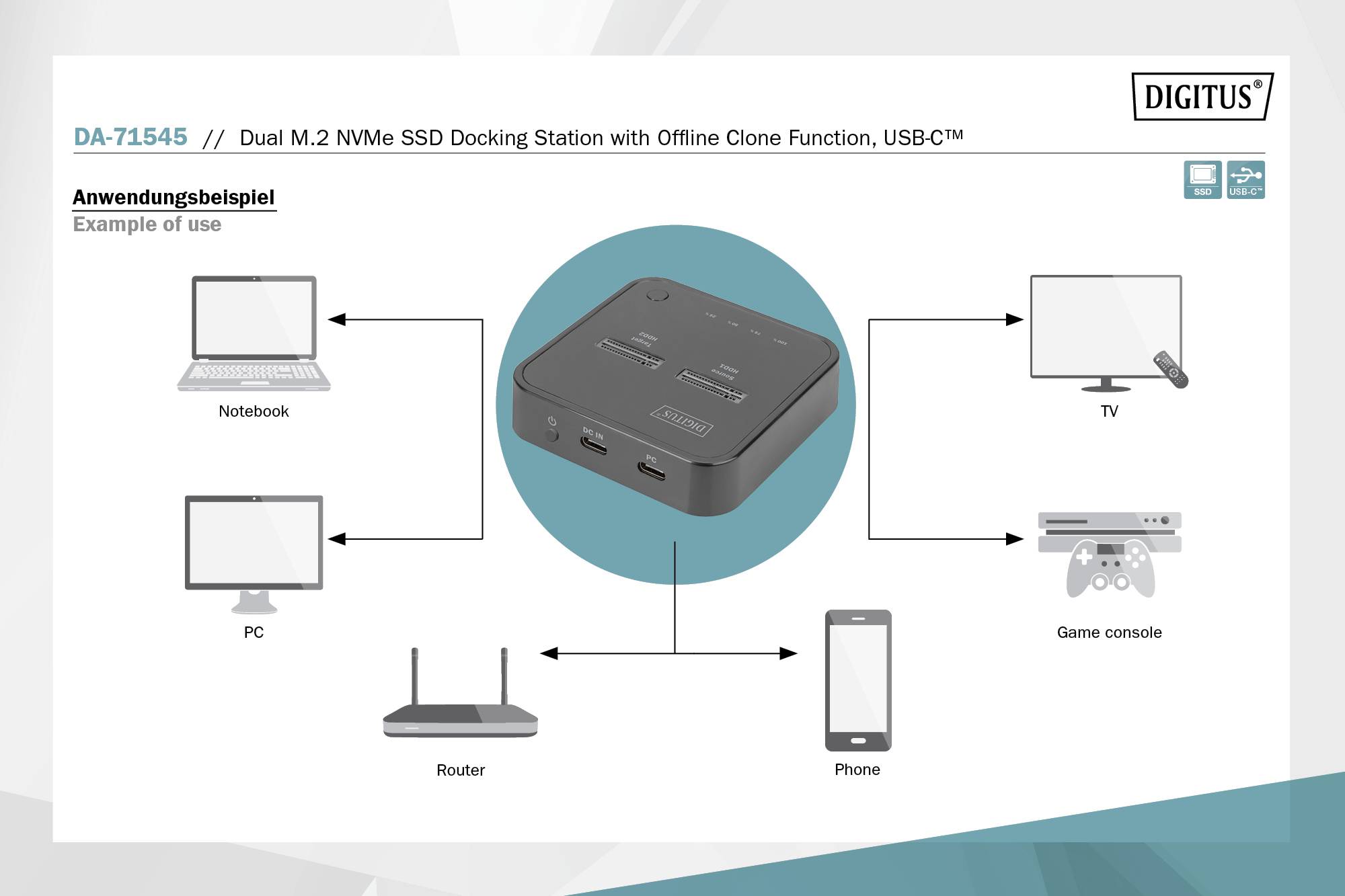

'Diagram for the use of the Dual M.2 NVMe SSD Docking Station: compatible with laptop, desktop computer, router, telephone, TV and games console.'

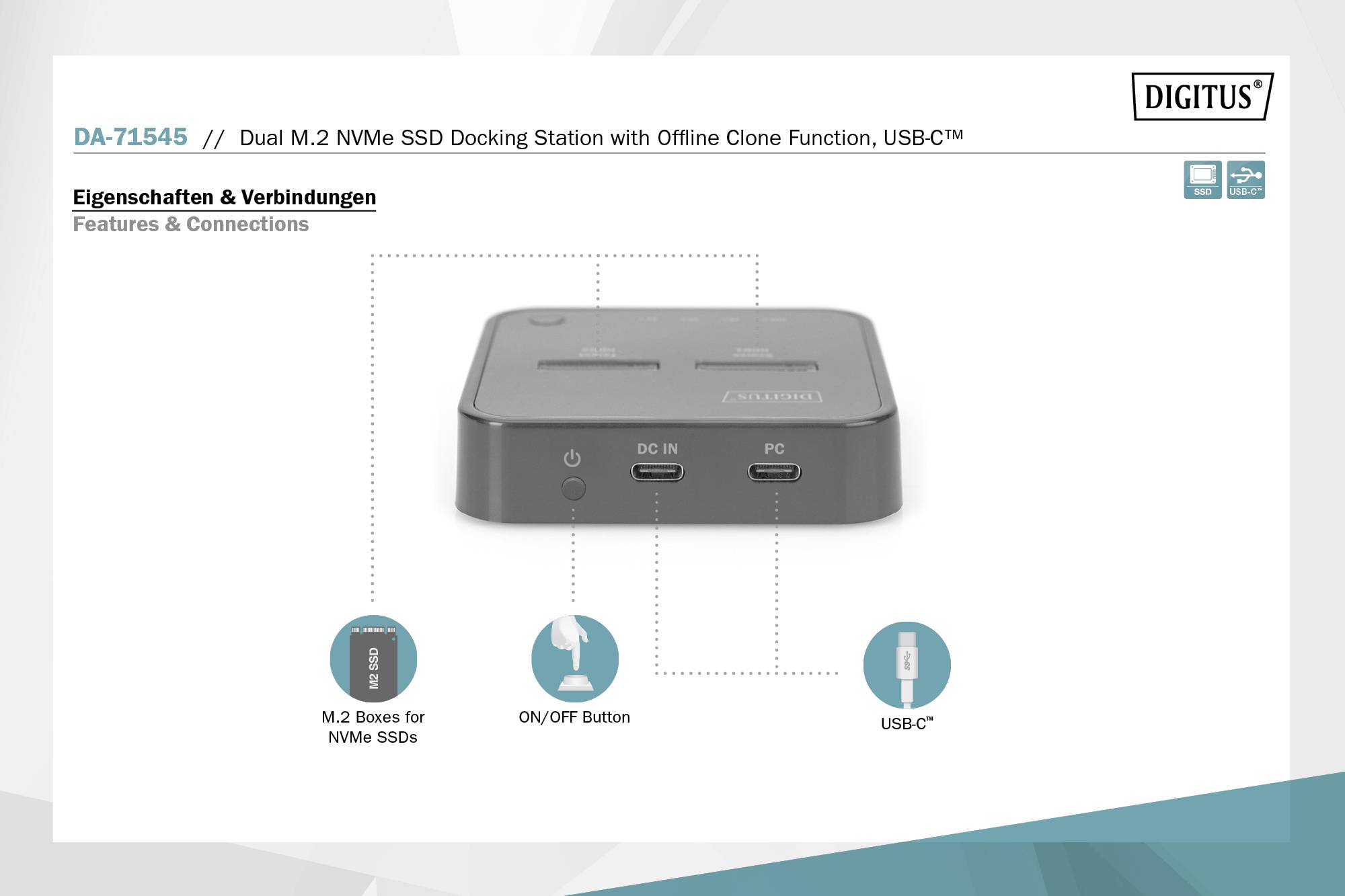

Docking station for M.2 NVMe SSDs with offline clone function, USB-C connection and power switch.

'Dual M.2 NVMe SSD Docking Station' on a table next to a laptop. Highlighting features such as offline cloning and USB-C connectivity.

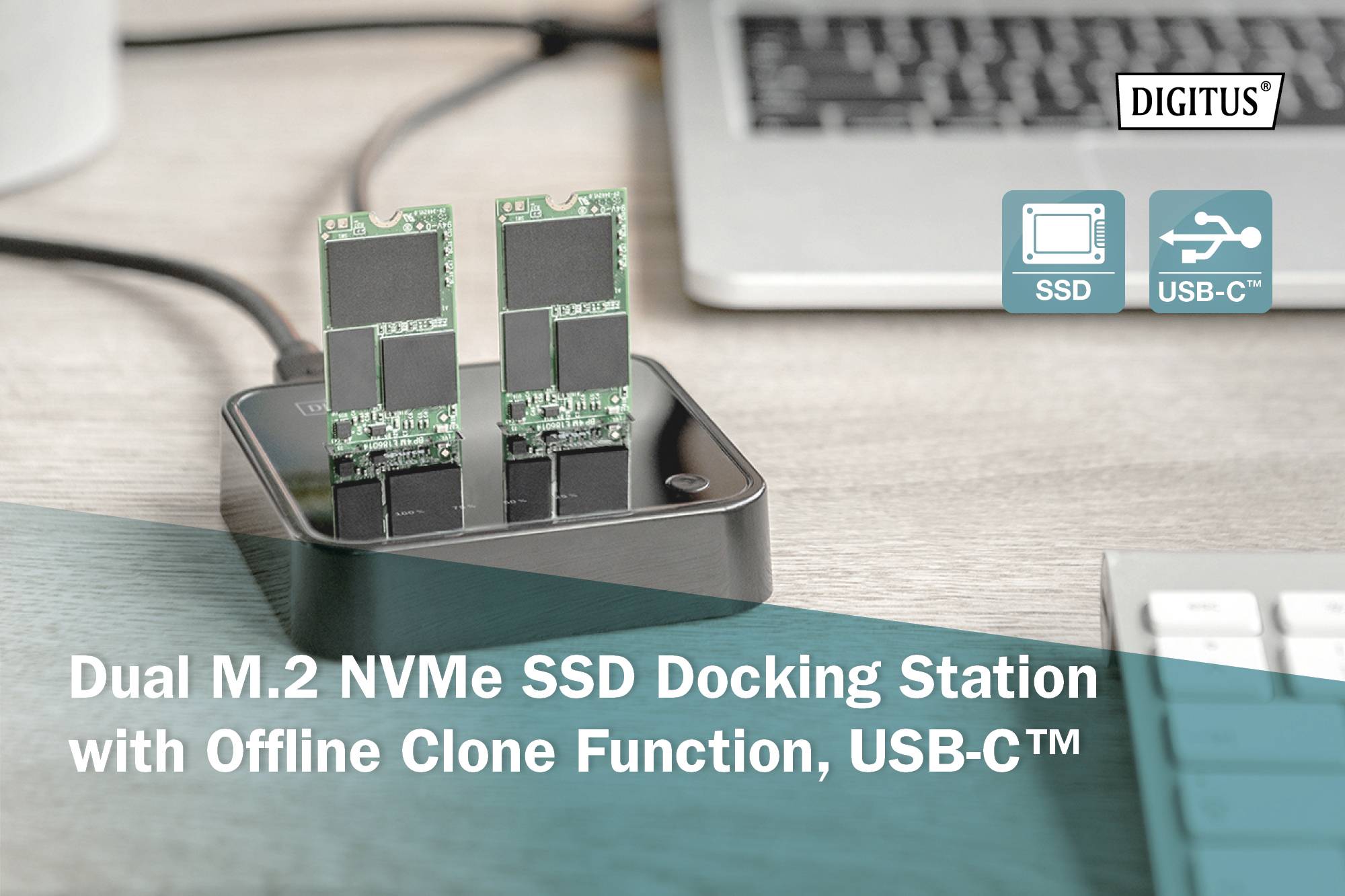

'Dual M.2 NVMe SSD Docking Station with Offline Clone Function, USB-C™. Shows two SSDs in a docking station beside a laptop.'

1/15

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

14-day return policy included

Report legal concerns

Digitus Dual M.2 NVMe SSD docking station with offline cloning function, USB-C™

Highlights & Details

2 x M.2 slots for NVMe SSDs, each up to 4 TB
Offline cloning function at the press of a button (without PC possible)
High data transfer rate of up to 10 Gbps

Technical specifications

2-bay docking station for NVMe SSD
Capacity: Max. 4 TB per bay
Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe SSD)
USB-C™ connections: 1 x data USB-C™ 3.2 Gen2, 1 x power supply USB-C™
USB 2.0 / 3.0 backwards compatibility
Maximum transfer rate USB-C™: 10 Gbps
Modes: Clone and dual mode
Supports hot swap (plug in and eject during operation)
Offline cloning function at the press of a button (without PC possible)
LED indicators for copy progress (25%, 50%, 75%, 100%)
Applications: PC, laptop, TV, router or game consoles (with USB-C™ connection)
STORAGE FORMATS NTFS, FAT, FAT32
Input voltage USB power supply: 100 -240 V AC, 50/60 Hz, 0.6 A - Euro plug: Type C (CEE 7/16)
Power supply via USB 5 V/3 A.
Windows 10/8/8.1/7/XP, MacOS 10.0 or higher
Dimensions 7.9 x D 7.7 x H 1.8 cm
Weight: 152 g.
Housing material: ABS plastic.
Colour, black

Product type: HDD docking station

Connector (PC): USB C® (USB 3.2 2nd gen)

Connector (HDD): M.2 PCIe NVMe
M.2

Features: Clone function

Weight: 152 g

Width: 79 mm

Height: 77 mm

Depth: 18 mm

Factory colour: Black

Keyboard layout: English, QWERTY

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2754525 Digitus DA-71545 USB C® (USB 3.2 2nd gen) M.2 PCIe NVMe, M.2 HDD docking station Clone function

Description

The Digitus® dual-port NVIDIA docking station can hold up to 4 TB of M.2 SSDs per bay. Manage a total of 2 SSDs in various formats with up to 8 TB of memory. With the integrated offline cloning function, it is even possible to duplicate the storage media by pressing a button without a connected device. The progress of the copy process is indicated by LED indicators on the device. M-Key and B&M-Key NVMe SSDs are supported in the standard formats 2242, 2260, 2280 & 22110. Easily expand the storage capacity of a wide range of USB-C™ devices such as PCs, laptops, TVs, games consoles, or routers.

This text is machine translated.

Features

LED indicators show the copying progress
As a storage medium for a total of up to 8 TB usable
Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe SSD)
USB-C™ connection USB 3.2 2nd Gen
Ideal memory expansion for notebooks, PCs, game consoles, TV sets, NAS or routers (USB-C)
Plug and Play, no drivers required.

Scope of delivery

1 x Dual M.2 NVMe SSD docking station with offline cloning function, USB-C™
1 x USB A power supply
1 x USB-C™ connection cable, 80 cm
1 x USB-C to USB A connection cable, 80 cm
1 x quick start guide
