Digitus DA-81007 2D barcode scanner Bluetooth®, Radio 1D, 2D Imager White, Petrol USB, USB type A
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Highlights & Details
Barcode Scanner

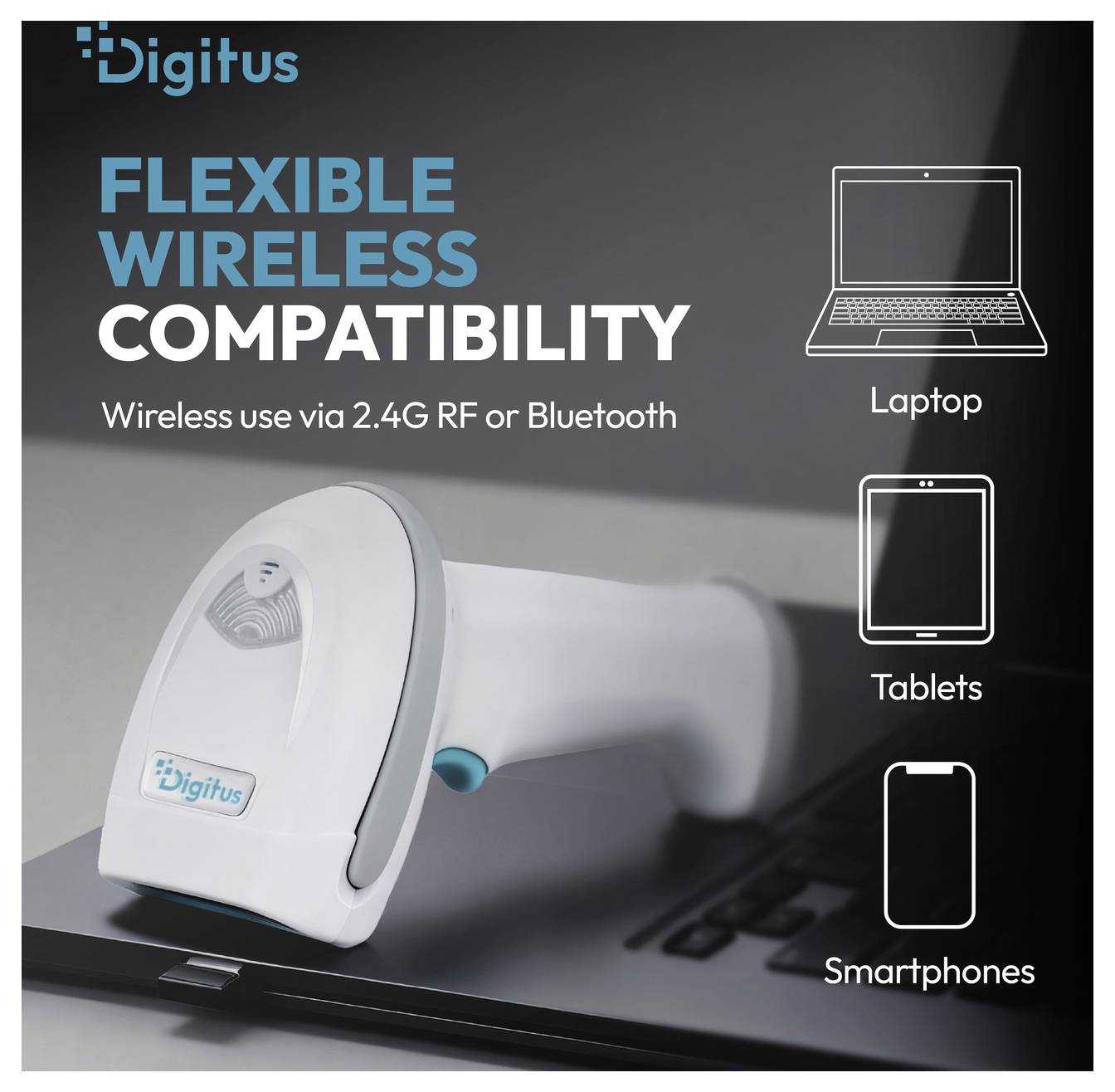

- Flexible use via 2.4 GHz radio or Bluetooth - Ideal for mobile and dynamic working environments
- Generous scan angle: ±360° rotation angle as well as ±65° tilt and declination angle for flexible scanning from almost any position.
- Wireless range up to 100 m for efficient working without direct visual contact.
- Storage of up to 512,000 characters for uninterrupted working without permanent connection.

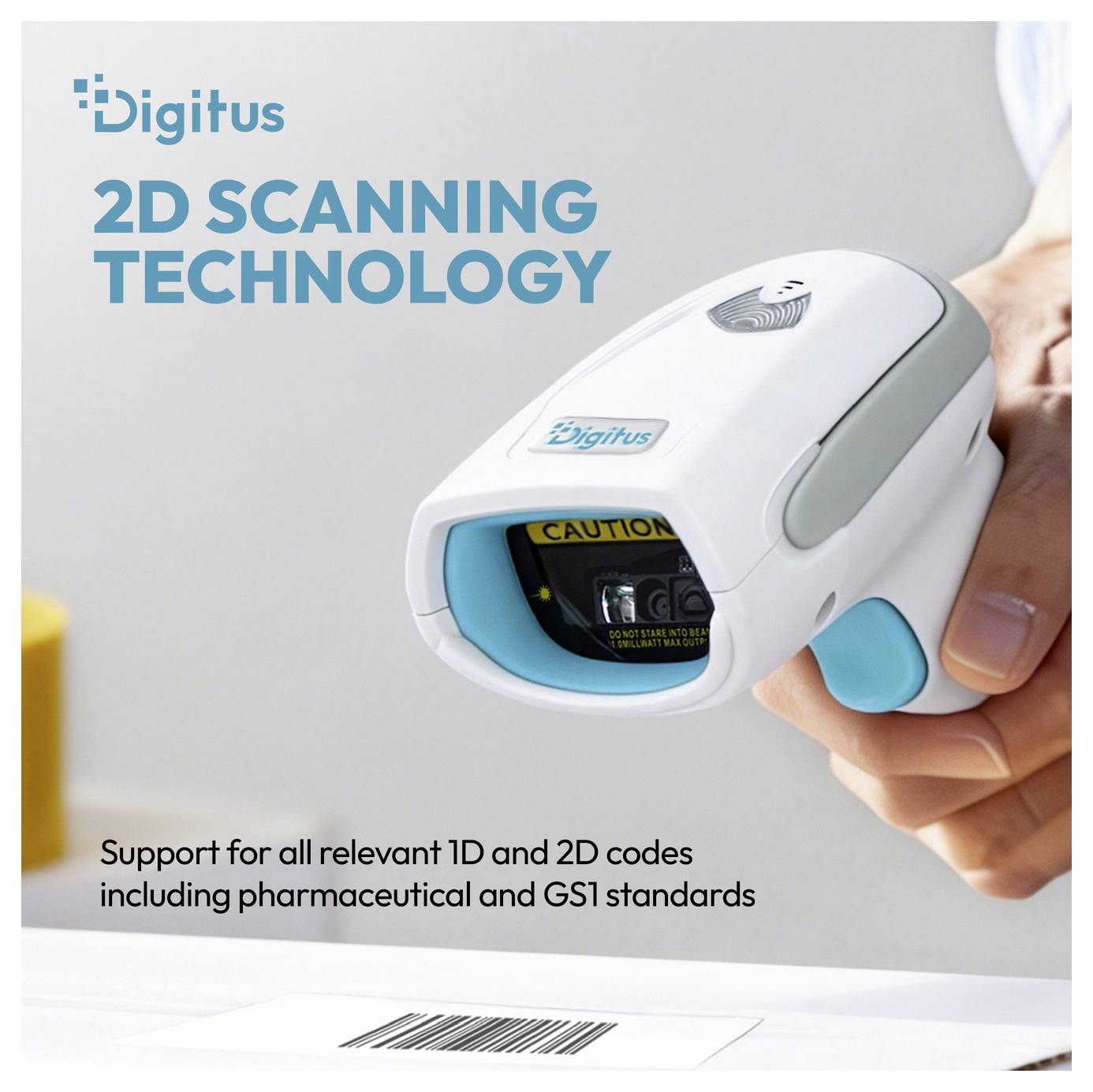

- Support for all relevant 1D and 2D codes including pharmaceutical and GS1 standards
- High-resolution image sensor: CMOS sensor with 1280 × 1024 pixels provides for precise recognition of fine and dense barcodes.

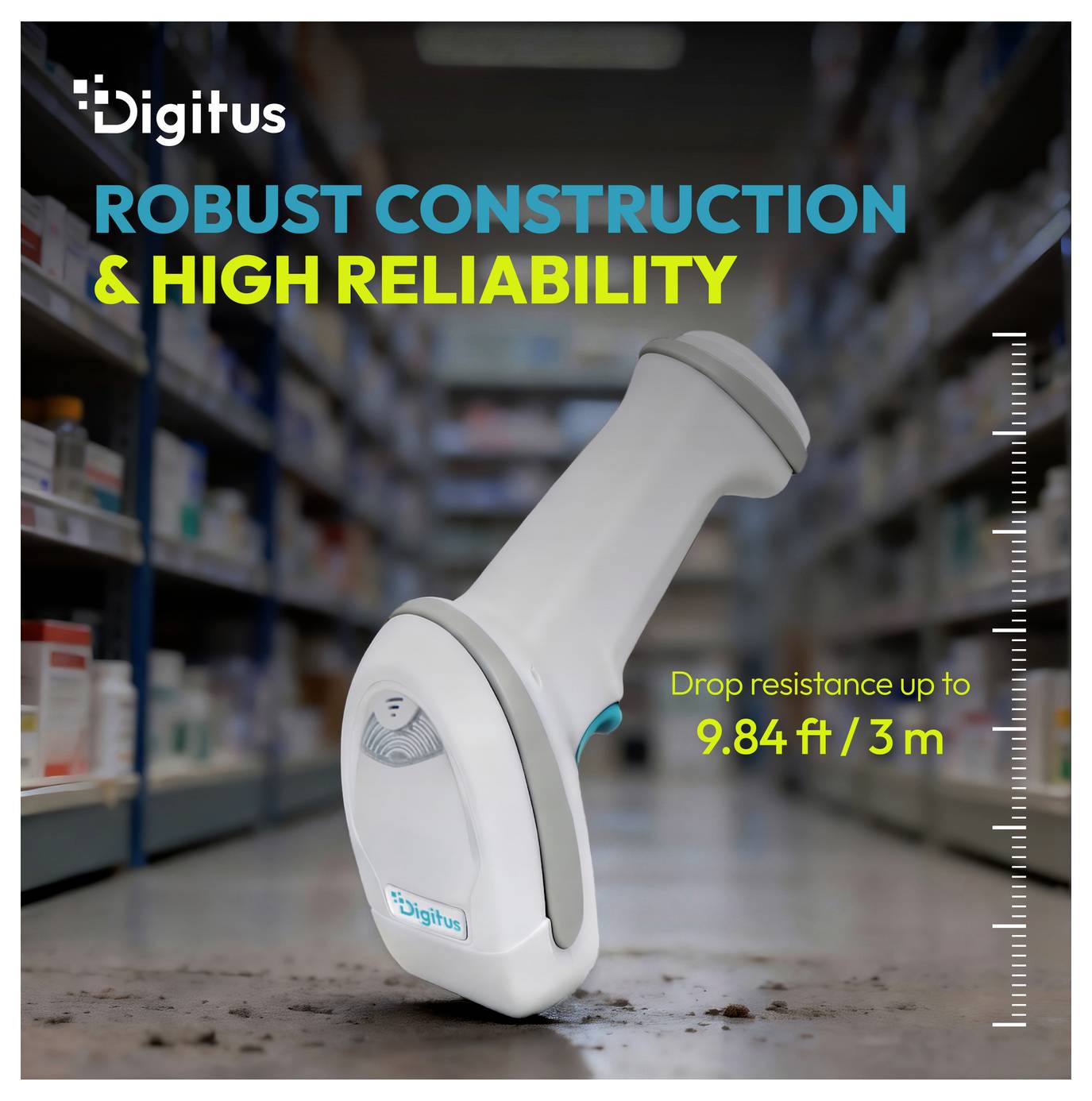

- Shock-resistant casing with drop-resistance up to 3 m - designed for daily use.
- Can be connected to smartphones, tablets and laptops without additional hardware

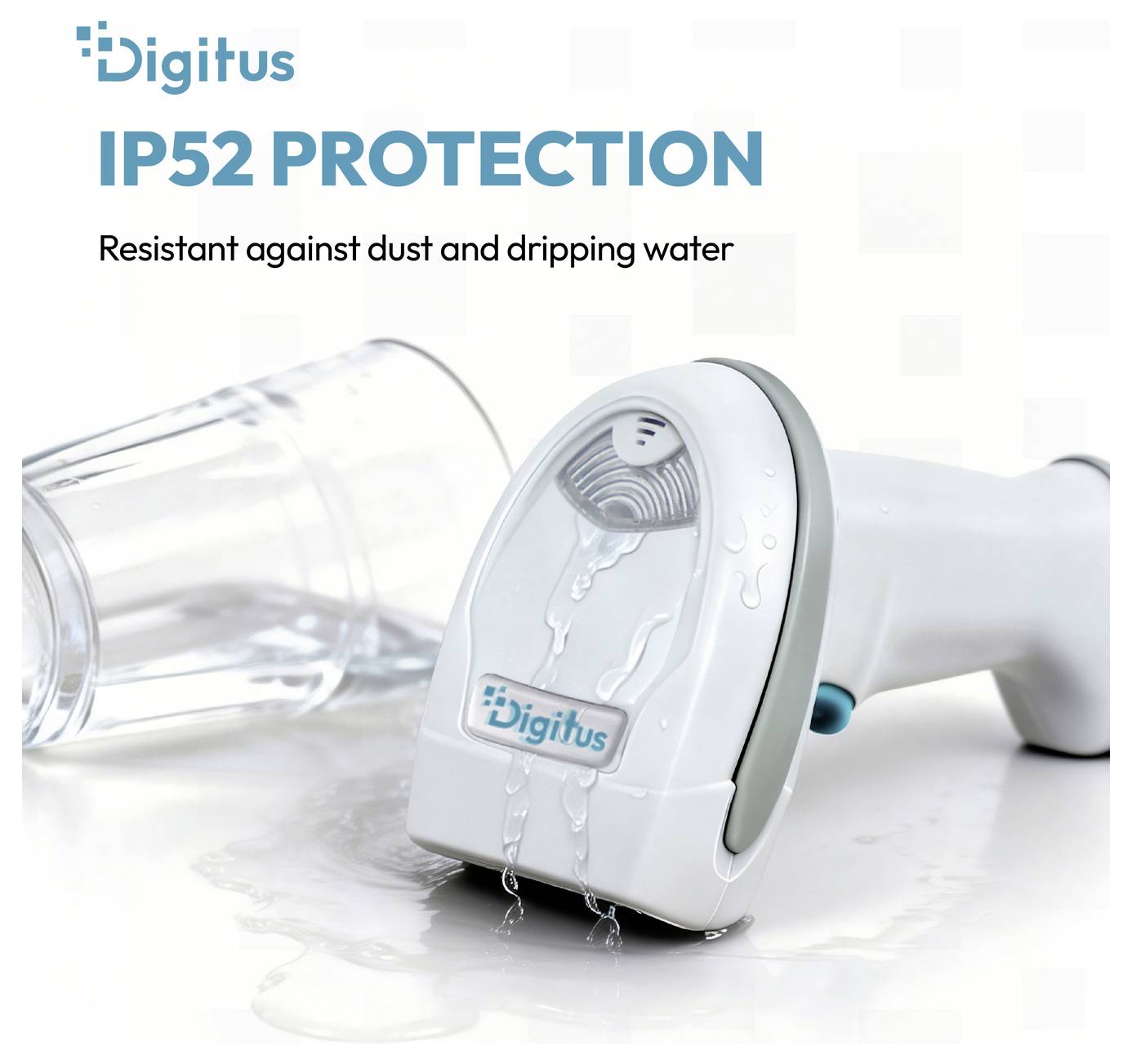

- IP52 protection type: Dust and protected against dripping water
- Also suitable for pharmacies, laboratories, hospitals and mobile healthcare applications
Technical specifications
- Scan technology: 2D Area Imager
- Light source: White light, green target cross
- Image sensor CMOS 1280 x 1024 pixels
- Scan angle: Rotation angle ±360°, tilt angle ±65°, declination angle ±65°
- Reading precision: ≥ 3 mil
- Number of scans per second: 300 scans
- Reading distance:
- Code 39 (5 mil): 50 - 230 mm, EAN-13 (13 mil): 55 - 400 mm, QR Code (15 mil): 75 - 270 mm, Code 128 (5 mil): 65 - 220 mm
- Supported codes:
- 1D: Codabar, Code39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 2, Straight 2 of 5 Industrial, Straight 93 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-e, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectia
- 2D: Code block A, code block F, PDF417, micro PDF417, GS1 composite codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN
- INTERFACE USB-HID, USB-COM
- Scan modes: Manual mode, continuous mode, automatic detection mode
- Wireless communication:

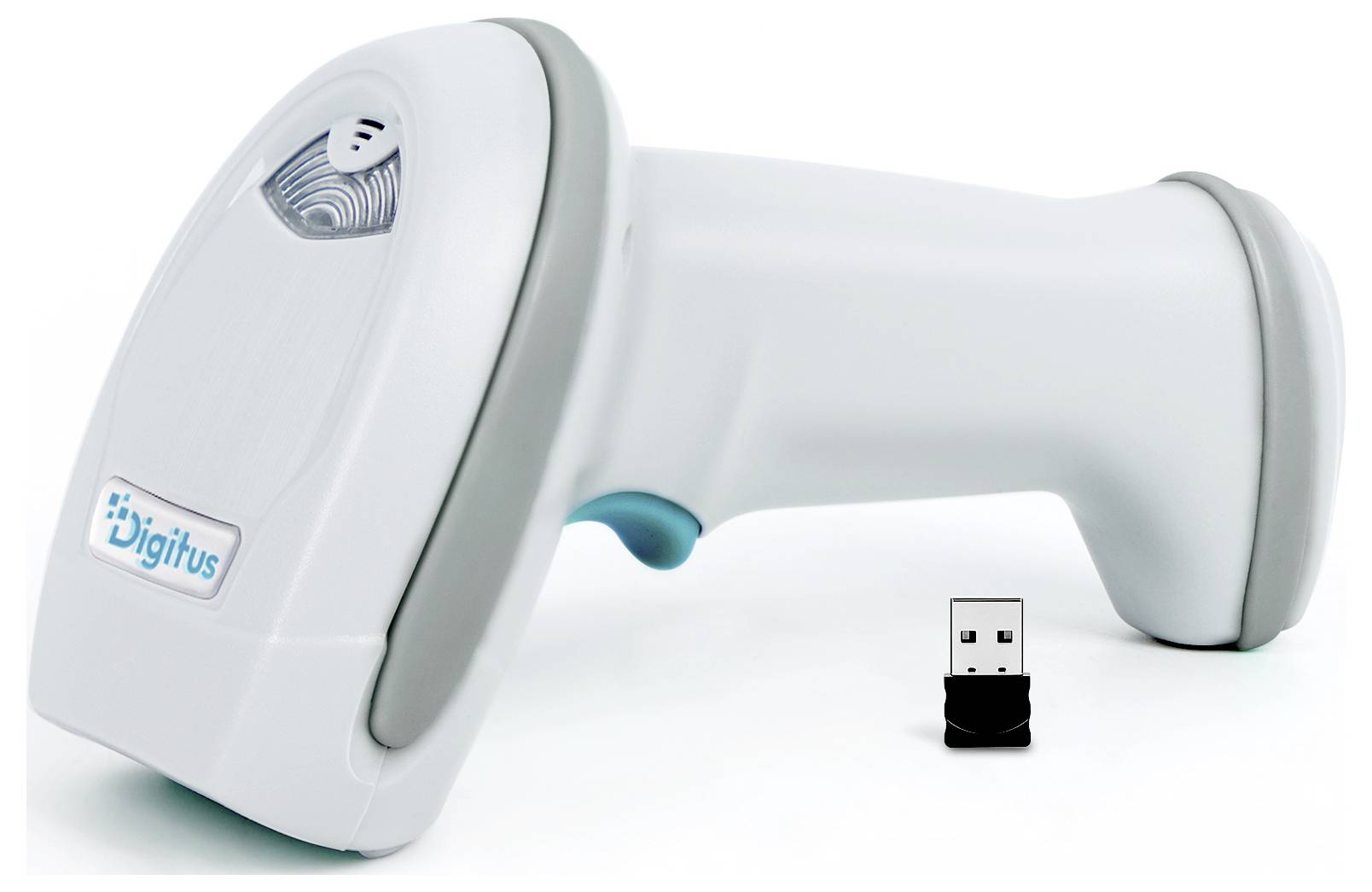

- 2.4 GHz radio (via USB-A connection) - Bluetooth (direct coupling with mobile devices)
- Range: Up to 100 m (in the open)
- Compatible operating systems include Windows, Android, iOS, Mac and Linux
- Including scanner holder
- Operating voltage DC 5 V ±5 %
- Battery: Lithium-battery 2200 mAh - rechargeable via cable
- Operating time: Approx. 7 hours, charging time: Approx. 4 hours
- IP protection class IP52 – dust proof / protection against dripping water
- Antibacterial housing: Suitable for medical and healthcare applications
- Suitable for medical and health-related applications: The housing and trigger material has been tested for antibacterial properties against Staphylococcus aureus and Escherichia coli in accordance with the GB 21551.2-2010 standard
- Impact resistance: Multiple falls from up to 3 m on concrete
- Dimensions 102 × 71 × 177 mm
- Weight: 224.2 g
- Material: plastic
- Product color: White, petrol
- Cable length (charging) 1.2 m.
- Cable color black
- Product type
2D barcode scanner
- Type
DA-81007
- Scanning technology
Imager
- Readable code types
1D
2D
- Reading distance (max.)
400 mm
- Scanning confirmation
Acoustic
- Scan rate
300 Scans/s
- Cordless scanning
Bluetooth®
Radio
100 m
- Range of use
Libraries
Healthcare
Pharmacies
Retail
Logistics
Manufacturing
- Factory colour
White
Petrol
- Interfaces
USB
USB type A
- Cable length
2 m
- Protection class
IP52
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3815422 Digitus DA-81007 2D barcode scanner Bluetooth®, Radio 1D, 2D Imager White, Petrol USB, USB type A
Description
The Advanced Barcode Scanner (Wireless) offers maximum freedom of movement for professional working environments. Thanks to modern 2D scanning technology, it reliably captures all standard 1D and 2D barcodes, including QR codes, pharmaceutical and GS1 standards. This makes Ideal suitable for mobile applications in trade, logistics and medical applications. Wireless use via 2.4 GHz radio or Bluetooth enables a flexible connection - either via the included USB receiver or directly to smartphones, tablets and laptops. With a range of up to 100 meters, the scanner supports efficient workflows without fixed workplaces. The integrated offline memory also allows bar codes to be captured even without a permanent connection. Designed for professional use, the scanner impresses with its robust design and high reliability. The anti-bacterial casing makes it especially suitable for hygienically sensitive areas like pharmacies, laboratories and hospitals. The smooth surface allows quick and easy cleaning in everyday life. The IP52 protection type protects against dust and dripping water, while the high impact resistance supports a long lifespan in the daily work. With its simple start-up, the long battery life and the ergonomic design the Advanced barcode scanner (wireless) is a reliable solution for all, who want to combine wireless flexibility and professional scanning performance.
