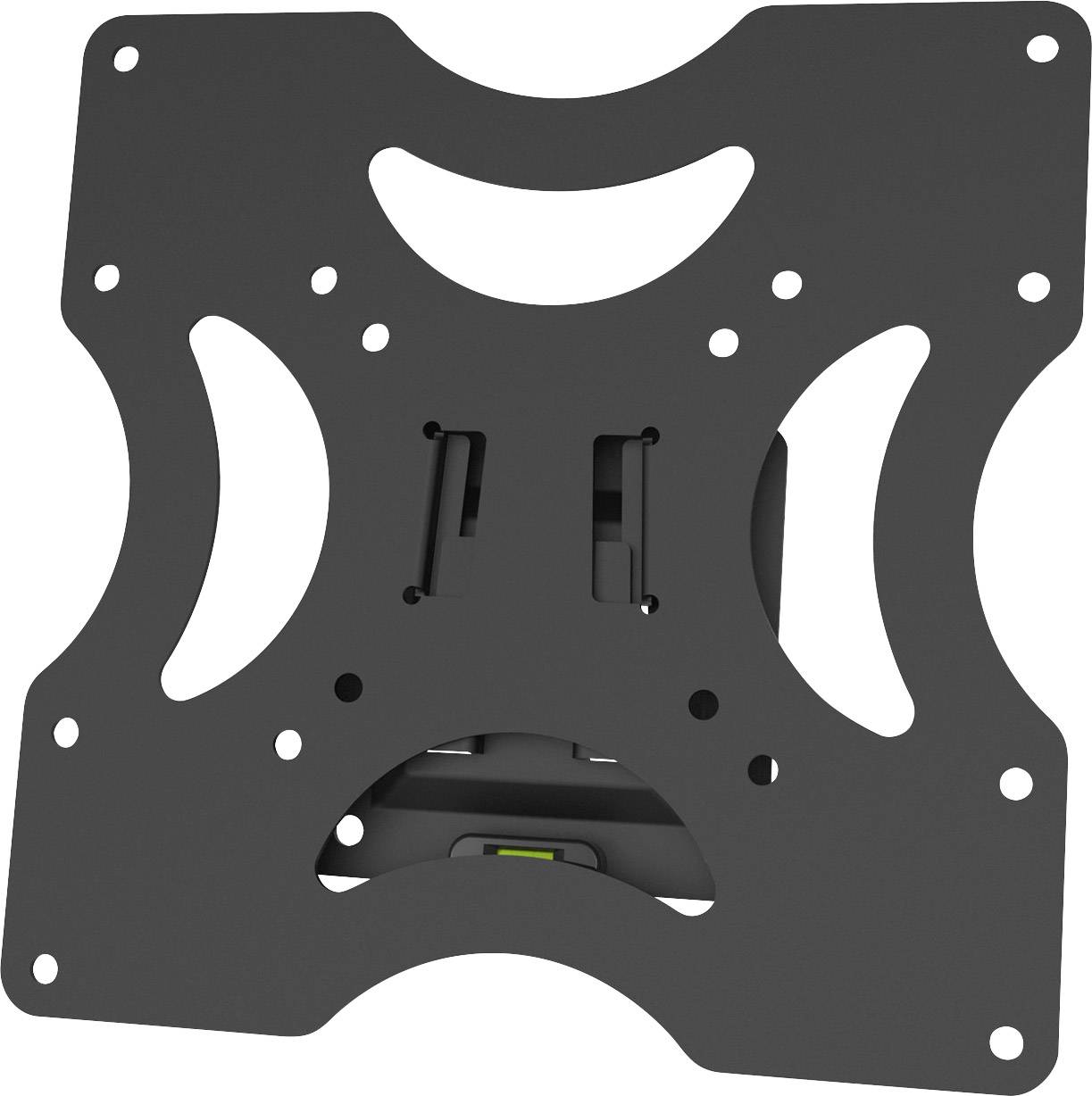

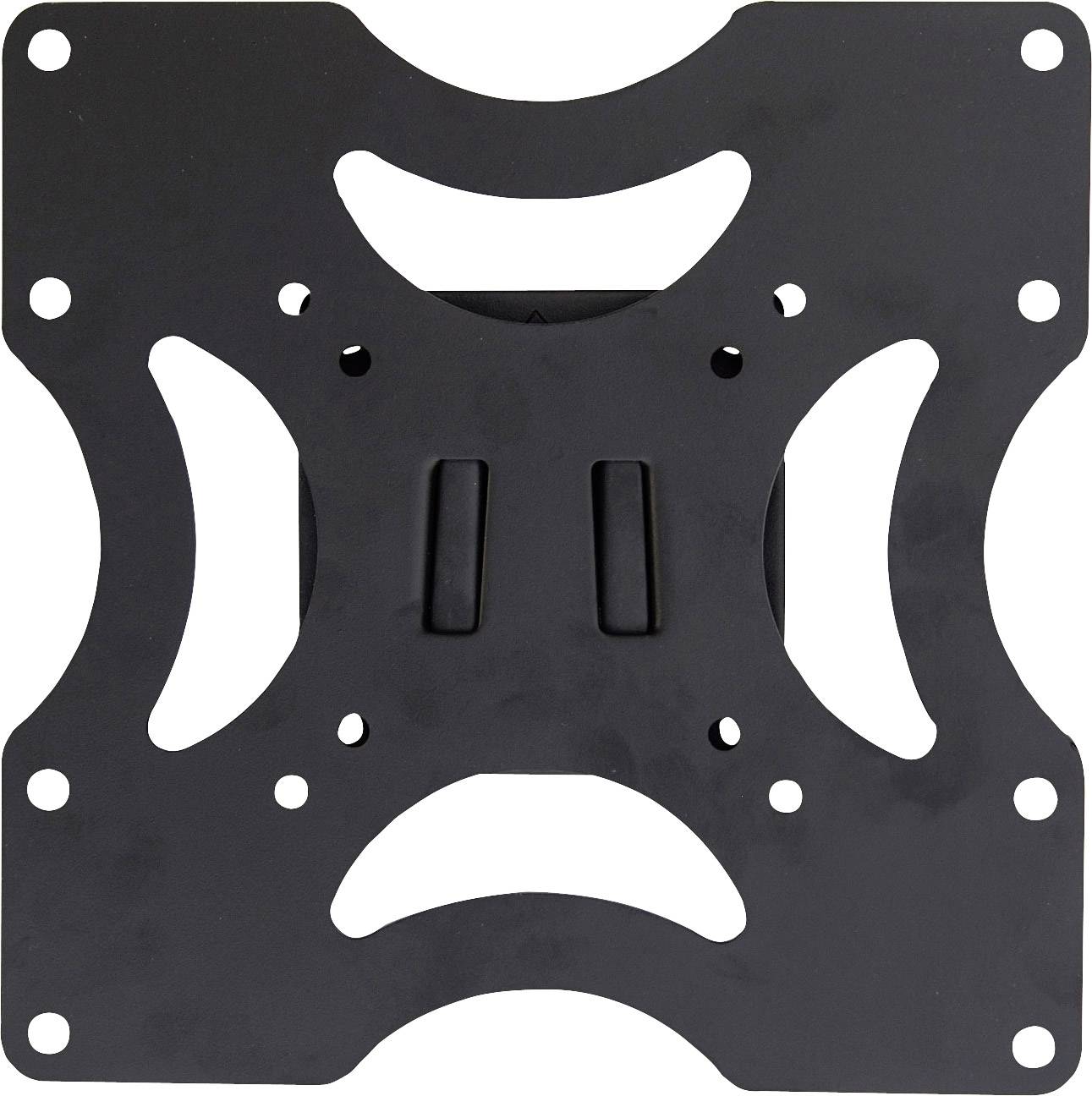

Digitus DA-90310-1 Monitor wall mount 1 Display(s) 38,1 cm (15") - 94,0 cm (37") Black Rigid
EAN:
Part number:
Item no:
Monitor wall mount for 15" - 37" screens, fixing bracket, max. 37 kg maximum load-carrying capacity, VESA max. 200 x 200
Highlights & Details
- Holder type: RigidSupports VESA standards up toSuitable for displays sized (range): 38,1 cm (15") - 94,0 cm (37")Load capacity (max.) 37 kg
Technical specifications
- Product type
Monitor wall mount
- Suitable for
38,1 cm (15") - 94,0 cm (37")
- Add-on displays
1 Display(s)
- Holder type
Rigid
- Features
Built-in level
No
- Max. load capacity
37 kg
No
75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm
- Distance to wall (min.)
18 mm
- Distance to wall (max.)
18 mm
- Width
220 mm
- Height
220 mm
- Depth
18 mm
- Factory colour
Black
- Weight
840 g
- Dim
(W x H x D) 220 x 220 x 18 mm
- Suitable for
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
Show more
- Screen size diagonal (inches)
1.0 inch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681244 Digitus DA-90310-1 Monitor wall mount 1 Display(s) 38,1 cm (15") - 94,0 cm (37") Black Rigid
Description

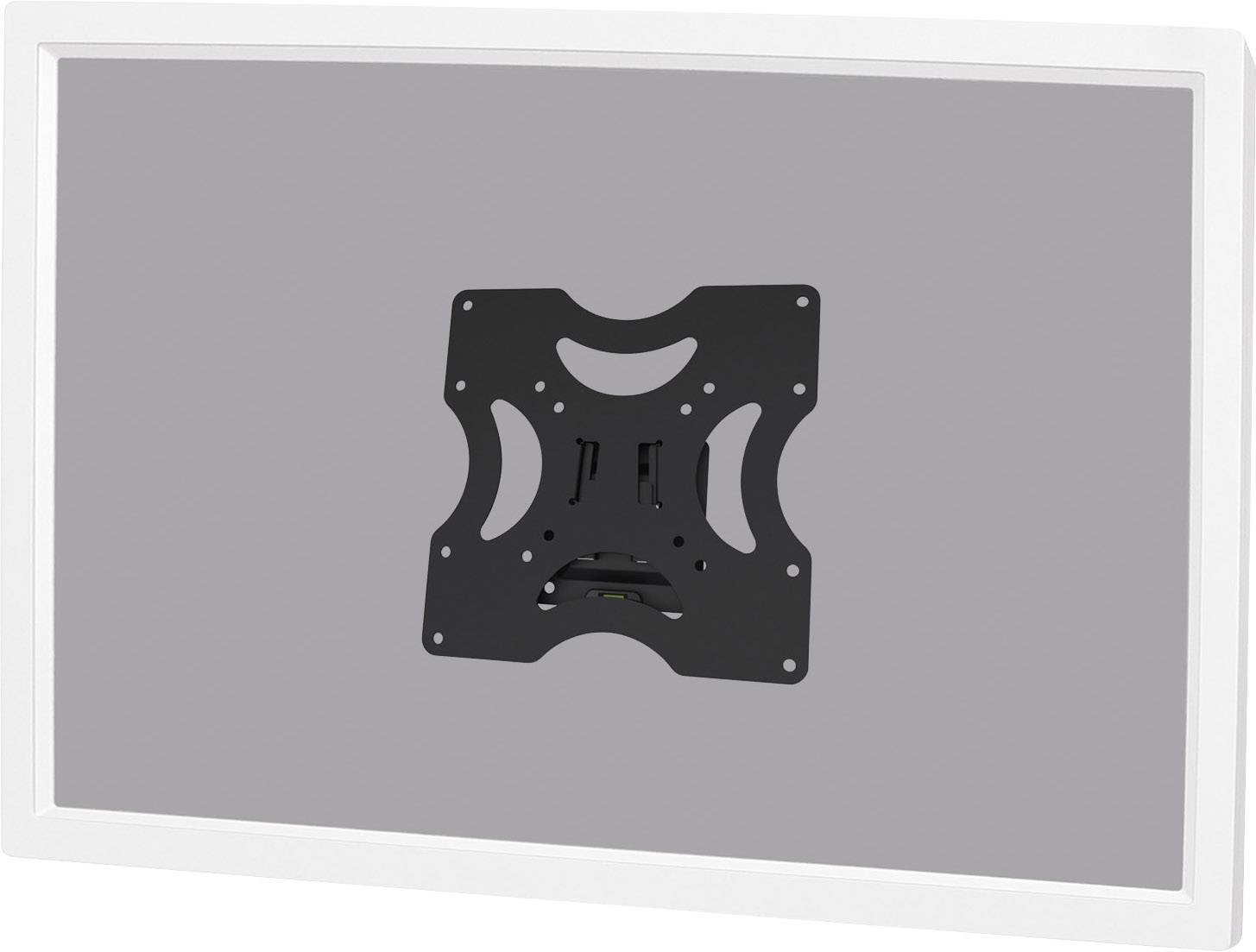

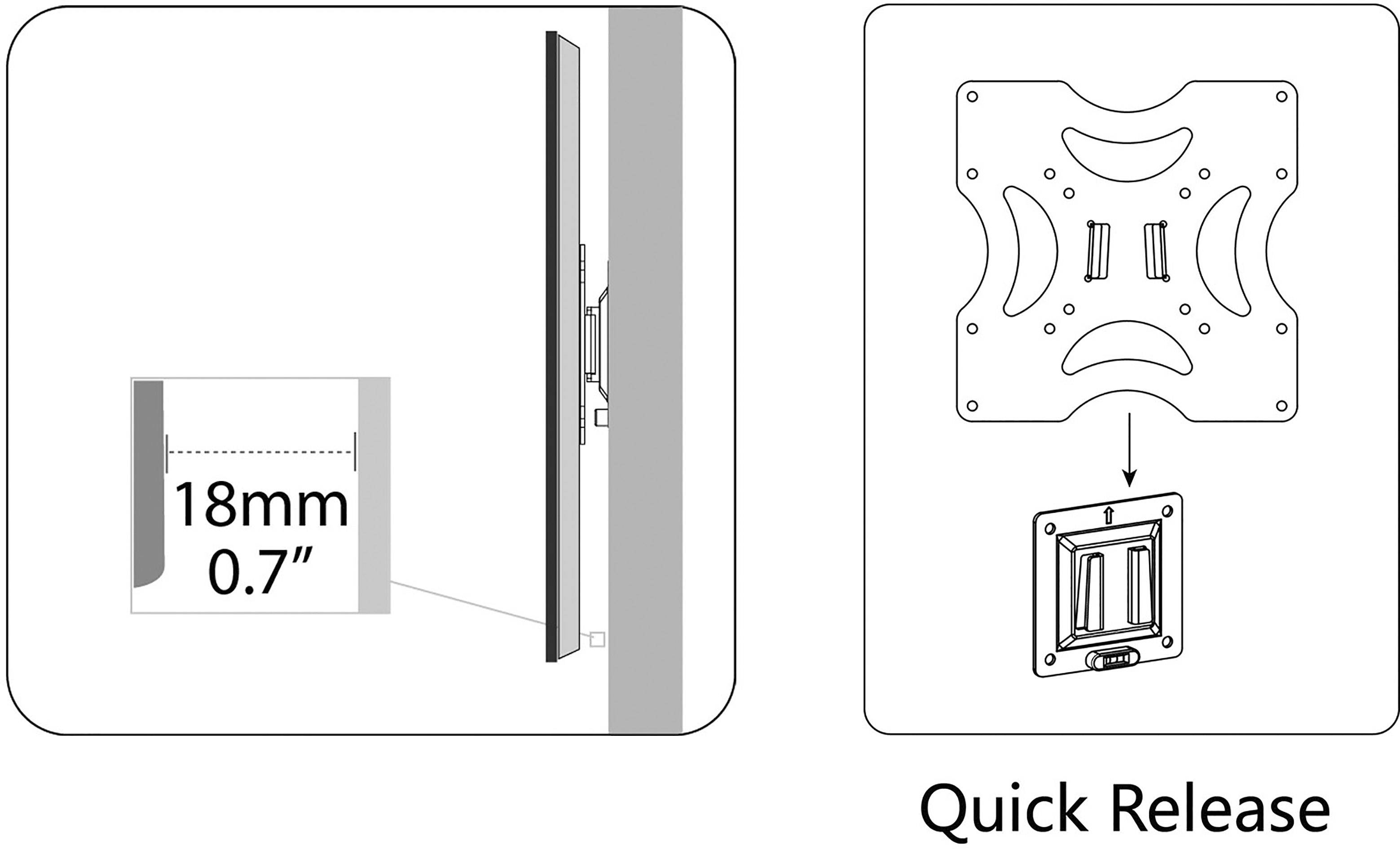

Universal monitor brackets for wall mounting your LED, LCD monitor. Very low wall distance of only 18 mm for elegant suspension of the flat screen. The monitor holder allows the installation of LED, LCD monitors of all brands. Note only the VESA dimensions as well as the weight of your monitor in order to select a suitable holder.
This text is machine translated.
This text is machine translated.
Features
- Integrated Water weighing for easy installation
Scope of delivery
- Monitor wall mount
- Screws for monitor mounting
- User manual
